Small Portable Chiller For Laboratory
  • Small Portable Chiller For LaboratorySmall Portable Chiller For Laboratory
  • Small Portable Chiller For LaboratorySmall Portable Chiller For Laboratory
  • Small Portable Chiller For LaboratorySmall Portable Chiller For Laboratory
  • Small Portable Chiller For LaboratorySmall Portable Chiller For Laboratory

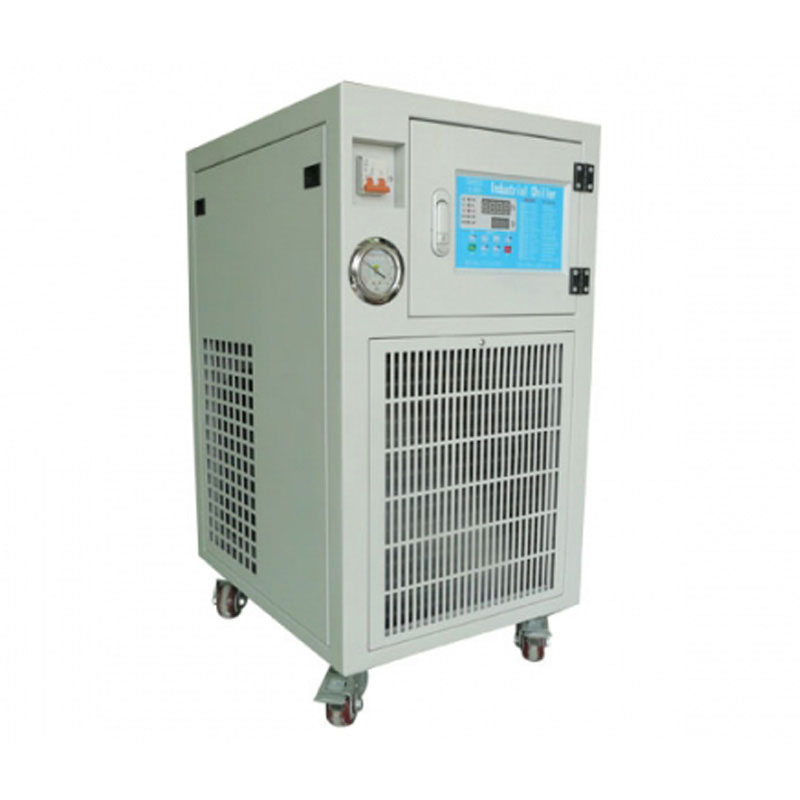

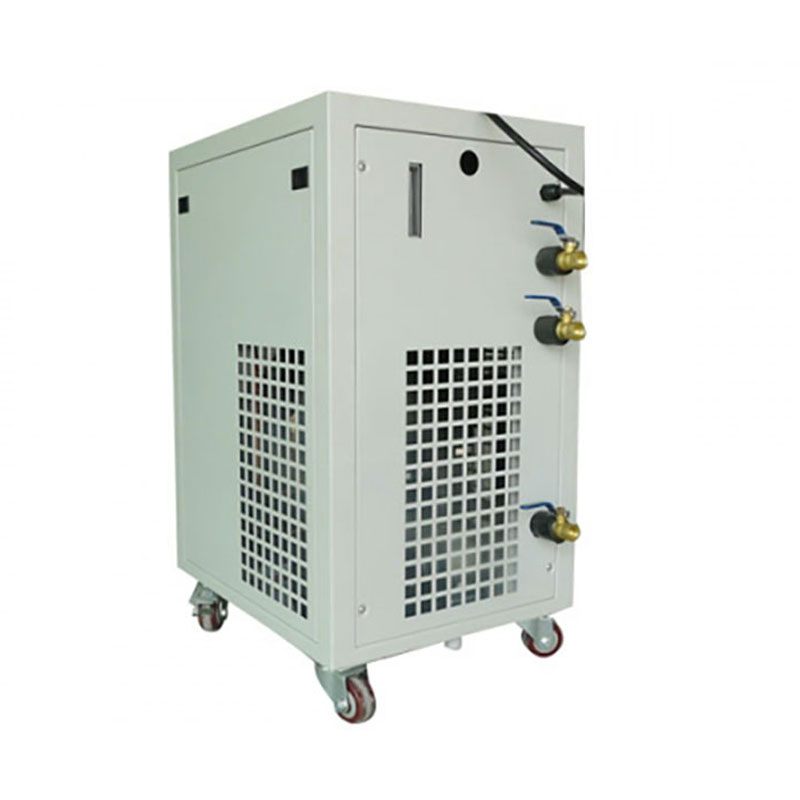

Small Portable Chiller For Laboratory

As a China leading supplier and manufacturer of small portable chillers with 15 years refrigeration experience, Tongwei offers small portable chiller for laboratory are portable, convenient and quiet, designed, engineered and manufactured for reliable and accurate cooling,which feature stainless steel water piping, water tank, water pump and fully diagnostic touch screen controls. It is with CE certification and 12 months warranty, any problem caused by defects of chiller itself, service offered till the problem within warranty. Many our standard small portable chillers are available for fast shipping, and we offer excellent after-sales technical support to ensure your system keeps your processes running strong.We look forward to becoming your long-term small portable chiller system supplier in China.

Chiller Model: TW-1A
Cooling Capacity: 2.85KW(2451 kcal/h) @ 50HZ / 3.42KW(2941 kcal/h) @ 60HZ
Refrigerant: R22/R407c/R410a/R134A/R404a
Power Supply: 220-240V/50HZ /1PH (Standard) / 208-240V/60HZ/1PH(Customized)
Compressor Brand: Panasonic Scroll Compressor
Evaporator Type: Coil in SS Water Tank (Standard) / SS PHE type (Customized)

Send Inquiry

Product Description

Small Portable Chiller For Laboratory

Small portable chiller for laboratory provide continuous cooling with a standard temperature range of +5° to +25°c. However, if lower temperatures are required, the design temperature range of low-temperature chillers is -35°~ +25°C.

Small portable chillers for laboratory manufactured by Tongwei in China are rigorously tested to ensure the chillers meets our requirements before we ship any unit to you. The laboratory chiller features a hot gas bypass that routes hot, uncondensed refrigerant back through a thermal storage coil, eliminating compressor on/off cycling. The use of hot gas bypass provides greater stability and thermal protection for pumps, motors and compressors. Due to simplicity of design and operation, Tongwei laboratory chillers are designed to provide years of reliable liquid temperature control.

Using environmentally friendly CFC refrigerant, portable chiller for laboratory has a corrosion-free wet surface. With the largest selection in the industry, laboratory chillers can be designed and built to your exact requirements and specifications.They feature a low-profile design with high-quality non-wearing, locking casters, additionally providing a small footprint, superior performance and unparalleled reliability.

Tongwei is the China professional manufacturer and supplier of portable chiller. With many years of refrigeration experience, we guarantee the production of the best quality  chiller system with amazing specifications and super warranty offers.If you are looking for a reliable portable chiller system provider ,Contact us now to get a quote.

Small Portable Chiller For Laboratory Technical Specification

TW-A series Small Portable Chiller For Laboratory Techinical Parameters
Item                   Model TW-0.5A TW-1A TW- 1.5A TW-
Cooling capacity Kcal/h
1419 2451 3182 4833 5848 7181 9288 11988 14534 18576 23994 29068 38270
1703 2941 3784 5800 7018 8617 11146 14386 17441 22291 28793 34882 45924
1.65 2.85 3.7 5.62 6.8 8.35 10.8 13.94 16.9 21.6 27.9 33.8 44.5
1.98 3.42 4.4 6.74 8.2 10.02 12.96 16.73 20.28 25.92 33.48 40.56 53.4
Input power KW 0.88 1.35 2 2.25 2.66 3.27 4.07 5.75 6.45 8.25 11.5 12.9 17.45
Max Current A 5.4 8.2 12 13.6 6.6 8.2 10.1 13.8 15.5 20 27.9 31.3 42.4
power source 1PH/3PH~220V/380V~50HZ/60HZ            3PH~380V/415V~50HZ/60HZ(3PH~200V/220V~50HZ/60HZ)
Refrigerant Type  R22/R407C/134a/404A/410A
Control Capillary/External balance thermal expansion valve
Compressor Type Hermetic Rotary/scroll Hermetic scroll ( piston )
Power(KW) 0.45 0.89 1.3 1.73 2.1 2.7 3.5 4.55 5.25 3.5×2 4.55×2 5.25×2 7×2
Condenser Type Efficient finned copper tube with aluminum + low noise external rotor fan
Air flow(m3/h) 750 1000 1500 2000 2500 3000 4000 5000 6000 8000 10000 12000 15000
Air blower(KW) 0.06 0.09 0.15 0.15 0.19 0.14×2 0.14×2 0.19×2 0.19×2 0.25×2 0.45×2 0.45×2 0.6×2
Evaporator Type Tank coil/ shell and tube type/Plate type heat exchanger
Chilled water(m3/h) 0.28 0.49 0.64 0.97 1.12 1.44 1.86 2.4 2.91 3.71 4.8 5.81 7.65
0.34 0.59 0.76 1.16 1.4 1.72 2.23 2.88 3.49 4.46 5.76 7 9.18
water tank(L) 10.6 18.3 27 27 50 50 60 60 110 120 200 200 270
inlet/outlet pipe(inch) 1/2" 1/2" 1/2" 1/2" 1" 1" 1" 1" 1" 1-1/2" 2" 2" 2"
Water pump Power(kw) 0.37 0.37 0.37 0.37 0.37 0.37 0.37 0.75 0.75 0.75 1.5 1.5 2.2
Max lift(m) 22 22 22 22 22 22 22 30 30 25 25 25 28
Max flow (m3) 5.4 5.4 5.4 5.4 5.4 5.4 5.4 8.1 8.1 8.1 13.5 13.5 25.2
Safety devices Compressor overheating protection,overcurrent protection,high and low pressure protection,overtemperature protection,traffic protection,phase sequence/phase loss protection,low level protection,anti-freezing protection.
Dimension Length(mm) 550 550 600 600 720 980 980 1150 1150 1350 1500 1500 1860
Width(mm) 350 450 500 500 550 520 520 560 560 680 760 760 850
Height(mm) 695 845 985 985 1350 1170 1170 1215 1215 1530 1660 1660 1900
Weight Kg 45 62 85 95 125 152 175 185 215 283 345 382 580
1.Rated cooling capacity is based on: chilled water inlet and outlet water temperature 12℃/ 7℃, the cooling air inlet and outlet temperature 30℃/ 35℃
2.Scope of work: chilled water temperature range: 5℃to 35℃; chilled water inlet and outlet temperature difference: 3℃to 8℃.
The ambient temperature of condensation: Not higher than 35℃(non-standard chiller ambient temperature of condensation can reach maximum 55℃, need to order production).

Features And Advantages of Portable Chiller for Laboratory

  ▪ Full featured PID controller with easy Auto-tuning

  ▪ Reservoir tank

  ▪ Brazed plate/coil in water tank heat exchanger

  ▪ Pressure gauges (refrigerant and pump)

  ▪ Hot gas bypass valve

  ▪ Fin style condenser

  ▪ Stainless steel coil and water tank ,water pump

  ▪ Compact design with portable wheels

  ▪ Simple&easy installation low maintenance cost

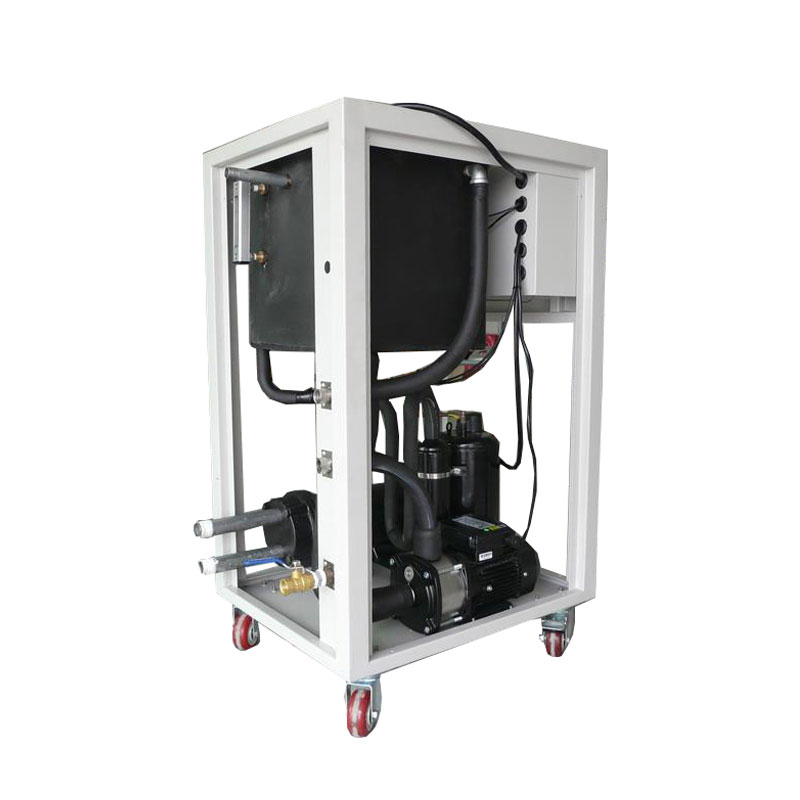

What Are The Main Components Of Small Portable Chiller For Laboratory?

3.1 Compressor

The compressor is the key mover in small portable chiller because it produces pressure variations to stir the refrigerant around.

For small portable chiller for laboratory , which is with Panasonic brand compressor, using R410A/R407C/R134a refrigerant,this brand compress is with high refrigeration efficiency,low noise ,energy saving,environmental protection and durability,safety and stability.

Panasonic Compressor

3.2 Evaporator

The evaporator is a crucial component of portable chiller, as it is responsible for extracting heat from the liquid being cooled,it is located between the compressor and the expansion valve. There are three types of evaporators : stainless steel coil in water tank evaporator , 304SS stainless steel plate type evaporator.


Coil in SS Water Tank Evaporator

SS Plate Type+ Water Tank Evaporator

3.3 Water Pump

The water pump is designed to increase the pressure and the flow of the chilled water in a closed space,and we use stainless steel material water pump for laboratory chillers.

Water Pump

3.4 Condenser

The condenser for portable air cooled chiller is equipped with efficient cross-seam fins and female threaded copper tubes for high heat exchange efficiency and good stability.Its function is to cool down the refrigerant steam released from the compressor into a liquid or gas-liquid mixture.


Aluminum fin+fan Condenser

3.5 Controller Panel

Tongwei chillers use precision digital temperature controller, it RS485 communication port,which can do remote monitoring and control. Simple operation, low failure rate, high safety factor, easy installation.

Controller Panel

Spare Part for Small Portable Chiller

How I Can Choose The Right Portable Chiller For Laboratory?

There are five important chiller specifications you need consider when you choose a chiller for your application :the cooling capacity for chiller ,the voltage required for operation, the associated pump horsepower and flow rate (contact us for custom selection), refrigerant, and the evaporator type.

5.1 Calculate Right Cooling Capacity For Chiller

One of the most frequently ask about how we can know the cooling capacity for chillers.  We use KW ,Ton, But/h,Kcal/h to choose chiller cooling capacity :1 KW=860 kcal/h ;  1 TON=3.517 KW;1 KW=3412 Btu/h;

There is also a formula to calculate the cooling capacity for chiller:.

Cooling Capacity(kw)= Flow Rate(m3/h)*Temp Change(T1-T2)/0.86

Heat Load= C(specific heat)* M(quality output per hour )*Temp Change(T1-T2)

Oversize the chiller by 20% Ideal Size in KW = KW x 1.2

Noted : T1:Incoming Water Temperature (℃)      T2:Required Chilled Water Temperature(℃)


For example, what size of chiller is required to cool 10m³ water from 35°c to 15 °c in 1 hour?

Temperature Differential = 35℃-15℃=20℃

Water Flow Rate = 10 m³/hour

Cooling Capacity in KW = 10 x 20 ÷ 0.86 = 232 KW

Oversize the chiller = 232 x 1.2 = 278.4KW

278.4 kw cooling capacity for chiller is required.

5.2 Power

Different countries and regions have different standards for industrial electricity, the common power supplies are 208-230V, 380-420V,440-480V,50Hz or 60Hz, 3phase.

Such in Philippines ,the power supply is 220V 60HZ 3PH , 380V 60HZ 3PH ,460V 60HZ 3PH;

in Singapore and Malaysia ,the power supply is 415V 50HZ 3PH;

in Mexico ,the power supply is 220V 60HZ 3PH;

In USA ,the power supply is 208V 60HZ 3PH;575V 60HZ 3PH;480V 60HZ 3PH and so on

5.3 Water Pump

When you decide the capacity/tonnage of the chiller, we will recommend you the suitable pump in KW,which standard water pump is about 2 bar .If you need more high water pressure , please us when you inquiry.

5.4 Refrigerant

R22, R410A, R407C, R404A, R134A are optional choices.

R22: good cooling effect, but R22 is considered a powerful greenhouse gas, so it’s forbidden in most countries.

R410A: eco-friendly, R-410A has replaced R-22 as the preferred refrigerant for use in residential and commercial air conditioners in Japan, Europe, and the United States. R-410A operates at higher pressures than other refrigerants.

R407C: a good replacement for R22, good cooling effect.

R404A: suitable for application that requires low temperature(below -10°c).

R134A: a non-flammable gas used primarily as a “high-temperature” refrigerant, suitable for air-cooled chiller working at a high ambient temperature above 50℃.

5.5 Evaporator Choose

Chillers generally have two types of evaporators: one is coil in water tank evaporator ,the other one is stainless steel plate evaporator.

Coil and tank evaporator, which has a built-in water storage tank for more convenient use,so there’s no need for extra buffer tanks. This is also our standard evaporator for chiller , if you don’t have buffer tank ,we just use this evaporator for your chiller.

Shell and tube type evaporator, which requires an additional water buffer tank to connect .

Shipping Way of Small Portable Chiller For Laboratory

As a professional portable chiller supplier &exporter,we have our own shipment forwarder to arrange the shipment .Our chiller machine is with plywood packing,which prevent damage during transportation and meet export standards.There are three ways can delivery your chiller unit :

1. Ship by Air: As the chiller is with compressor ,water pump and fans ,the compressed refrigerant and oil inside the compressor is a dangerous item with the possibility of explosion , so it needs to release the compressed refrigerant before transportation. (It means that water chiller without refrigerant when choosing this shipping way. After the machine arrives at your destination, you need to add refrigerant by local professionals. The airline company also request us to provide many documents to prove that the chiller not a dangerous product. The freight cost by air is very high may be higher than the cost of chiller , So By air for delivery is not the mode of transport recommended to our customer.

2. Ship by Sea: The transportation time is longer than by air , but the freight cost is cheap ,and there is no need to add refrigerant after the equipment arrives at the destination.This shipping way is the most suitable mode of transportation for you to delivery your local port.

3.If you have your own shipment container in your other supplier in China, we can help you delivery the chiller machine to your supplier in any city of China .

Why should you choose Tongwei for your portable chiller supplier?

▪ Experience you can trust

We have been designing and building water chiller for over 15 years. From air cooled chiller to water cooled chillers and everything in between, we have built chillers for nearly every industry and every application.

▪ Fast Quote

Get a quote for your project today! We typically provide a custom quote within 2 hours.

▪ 24/7 customer service

Believe that we will always be by your side. Whether you have a question or need a quote, there‘s always someone answering the phone 24 hours a day.

▪ Durable and reliable machine

Our products are manufactured from high quality materials and we offer a competitive warranty on all  industrial chillers.
