Portable Small Water Chiller Unit

Portable Small Water Chiller Unit

A portable small water chiller unit is refers to a unique design configuration of a self-contained water chiller system that combines all necessary components including – the refrigeration circuit, controls and electrics, process water pump and reservoir(water tank) all within a single unit. All Tongwei portable small water chiller units have small footprints, are mobile and are located near the process or machines being cooled. The capacity of these water chiller units usually range from 1/2 to 10 tons in cooling capacity .

Portable small water chiller units are useful for small process loads or where special process fluids, flows, pressures or temperatures are required. They also are ideal for test applications and for temporary use.

Tongwei portable water chillers utilize scroll compressors, microchannel condensers, low noise fans, stainless steel brazed plate or stainless steel coil in water tank evaporators and microcomputer program controller,which following the prompts on the screen or panel,selecting the menu directly by finger and touch the button to start the unit.

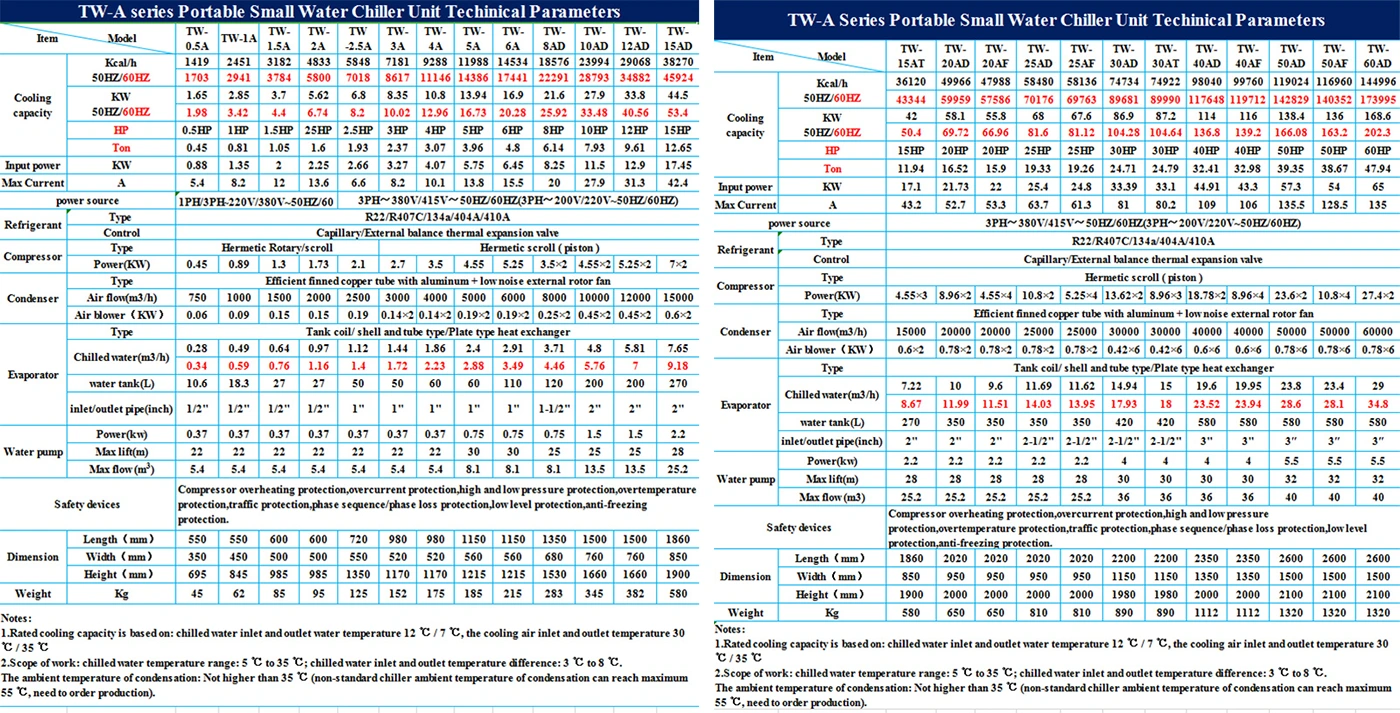

1.Portable Small Water Chiller Unit Technical Specification

2.Features And Advantages of Portable Small Water Chiller Unit

»Standard portable small water chiller units available from 1/2 tons – 10 tons

»Air and water cooled chiller systems

»Temperature range from -5°C to 25°C

»Temperature control to within 0.5°F

»SS coil in water tank,shell&tube or SS brazed-plate type evaporator for optional. Plate type evaporator provides large heat transfer surface, low coolant pressure loss and a compact design.

»208-570V 60HZ 3Phase power supply customize for USA ,Philippines,Mexico,Peru Customers

»Industrial packaged chiller unit is with R22 ,R407c,R410a,R134a refrigerant for option .If you want chiller to install and work below 55℃ high ambient temperature with any high pressure alarm ,you can use the environmental friendly R134A refrigerant.

3.Spare Part for Portable Small Water Chiller Unit

4.How I Can Choose The Right P Portable Small Water Chiller Unit for Your Application?

There are five important chiller specifications you need consider when you choose a chiller for your application :the cooling capacity for chiller ,the voltage required for operation, the associated pump horsepower and flow rate (contact us for custom selection), refrigerant, and the evaporator type.

4.1 Calculate Right Cooling Capacity For Chiller

One of the most frequently ask about how we can know the cooling capacity for chillers.  We use KW ,Ton, But/h,Kcal/h to choose chiller cooling capacity :1 KW=860 kcal/h ;  1 TON=3.517 KW;

1 KW=3412 Btu/h;

There is also a formula to calculate the cooling capacity for chiller:.

Cooling Capacity(kw)= Flow Rate(m3/h)*Temp Change(T1-T2)/0.86

Heat Load= C(specific heat)* M(quality output per hour )*Temp Change(T1-T2)

Oversize the chiller by 20% Ideal Size in KW = KW x 1.2

Noted : T1:Incoming Water Temperature (℃)      T2:Required Chilled Water Temperature(℃)

For example, what size of chiller is required to cool 10m³ water from 35°c to 15 °c in 1 hour?

Temperature Differential = 35℃-15℃=20℃

Water Flow Rate = 10 m³/hour

Cooling Capacity in KW = 10 x 20 ÷ 0.86 = 232 KW

Oversize the chiller = 232 x 1.2 = 278.4KW

278.4 kw cooling capacity for chiller is required.

4.2 Power

Different countries and regions have different standards for industrial electricity, the common power supplies are 208-230V, 380-420V,440-480V,50Hz or 60Hz, 3phase.

Such in Philippines ,the power supply is 220V 60HZ 3PH , 380V 60HZ 3PH ,460V 60HZ 3PH;

in Singapore and Malaysia ,the power supply is 415V 50HZ 3PH;

in Mexico ,the power supply is 220V 60HZ 3PH;

In USA ,the power supply is 208V 60HZ 3PH;575V 60HZ 3PH;480V 60HZ 3PH and so on

4.3 Water Pump

When you decide the capacity/tonnage of the chiller, we will recommend you the suitable pump in KW,which standard water pump is about 2 bar .If you need more high water pressure , please us when you inquiry.

4.4 Refrigerant

R22, R410A, R407C, R404A, R134A are optional choices.

R22: good cooling effect, but R22 is considered a powerful greenhouse gas, so it’s forbidden in most countries.

R410A: eco-friendly, R-410A has replaced R-22 as the preferred refrigerant for use in residential and commercial air conditioners in Japan, Europe, and the United States. R-410A operates at higher pressures than other refrigerants.

R407C: a good replacement for R22, good cooling effect.

R404A: suitable for application that requires low temperature(below -10°c).

R134A: a non-flammable gas used primarily as a “high-temperature” refrigerant, suitable for air-cooled chiller working at a high ambient temperature above 50℃.

4.5 Evaporator Choose

Chillers generally have two types of evaporators: one is coil in water tank evaporator ,the other one is shell and tube evaporator.

Coil and tank evaporator, which has a built-in water storage tank for more convenient use,so there’s no need for extra buffer tanks. This is also our standard evaporator for chiller , if you don’t have buffer tank ,we just use this evaporator for your chiller.

Shell and tube type evaporator, which requires an additional water buffer tank to connect .

5.Industrial Applications of Portable Small Water Chiller Unit

Portable small water chiller unit is very popular refrigeration system that can provide steady and reliable water cooling sources for both industrial and commercial usage,which is also widely used in plastic industry,food industry ,chemical industry and other industrial.

5.1 Plastic Industry

Portable small water chiller units are also widely used in plastic processing and plastic industry including plastic injection molding, plastic extrude, and extrusion lines, blowing molding machines.

The function of using an Portable air cooled industrial chiller machine is to provide the cooling water flow rate for cooling the plastic mold temperature down to make sure the product quality and production efficiency.

Portable Small Water Chiller Unit For Plastic Industry

5.2 Food Industry

Portable water chillers are important in the food industry to maintain temperature control, preserve quality, support various production processes, and comply with regulations.

Portable Small Water Chiller Unit For Food Industry

5.3 Chemical Industry

The pharmaceutical industry prepares medicines by processing through different heating and cooling parameters as blending, extrusion, mixing,air cooled screw chiller are cooling machines providing low-temperature cooling water, reduce the temperature of the chemical machinery and pharmaceutical cooling processing.

Portable Small Water Chiller Unit For Chemical industry

6.Shipping Way of Portable Small Water Chiller Unit

As a professional Portable Small Water Chiller Unit supplier &exporter,we have our own shipment forwarder to arrange the shipment .Our chiller machine is with plywood packing,which prevent damage during transportation and meet export standards.There are three ways can delivery your chiller unit :

1. Ship by Air: As the chiller is with compressor ,water pump and fans ,the compressed refrigerant and oil inside the compressor is a dangerous item with the possibility of explosion , so it needs to release the compressed refrigerant before transportation. (It means that water chiller without refrigerant when choosing this shipping way. After the machine arrives at your destination, you need to add refrigerant by local professionals. The airline company also request us to provide many documents to prove that the chiller not a dangerous product. The freight cost by air is very high may be higher than the cost of chiller , So By air for delivery is not the mode of transport recommended to our customer.

2. Ship by Sea: The transportation time is longer than by air , but the freight cost is cheap ,and there is no need to add refrigerant after the equipment arrives at the destination.This shipping way is the most suitable mode of transportation for you to delivery your local port.

3.If you have your own shipment container in your other supplier in China, we can help you delivery the chiller machine to your supplier in any city of China .
