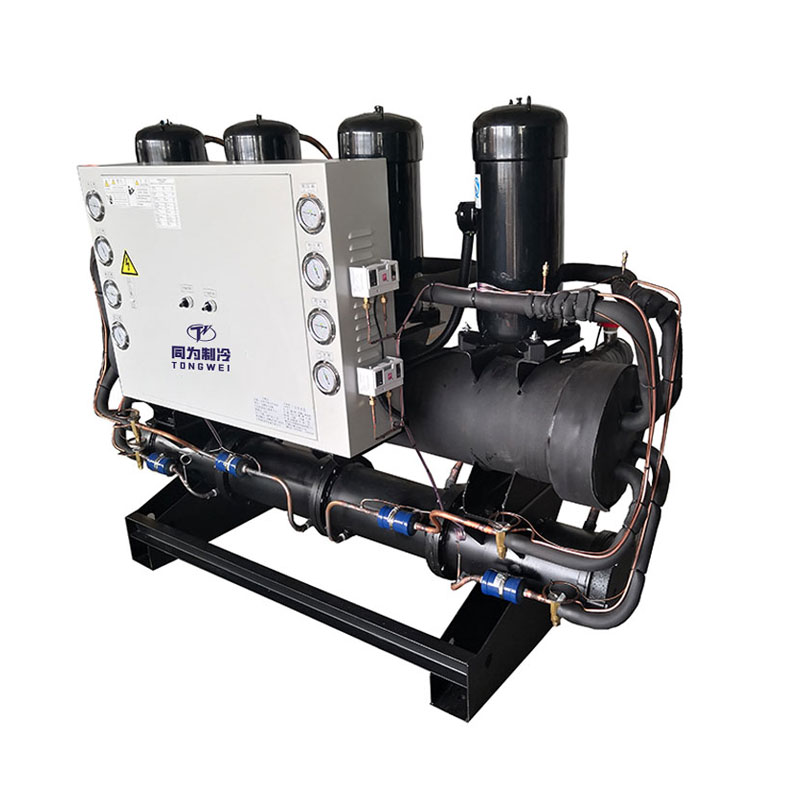

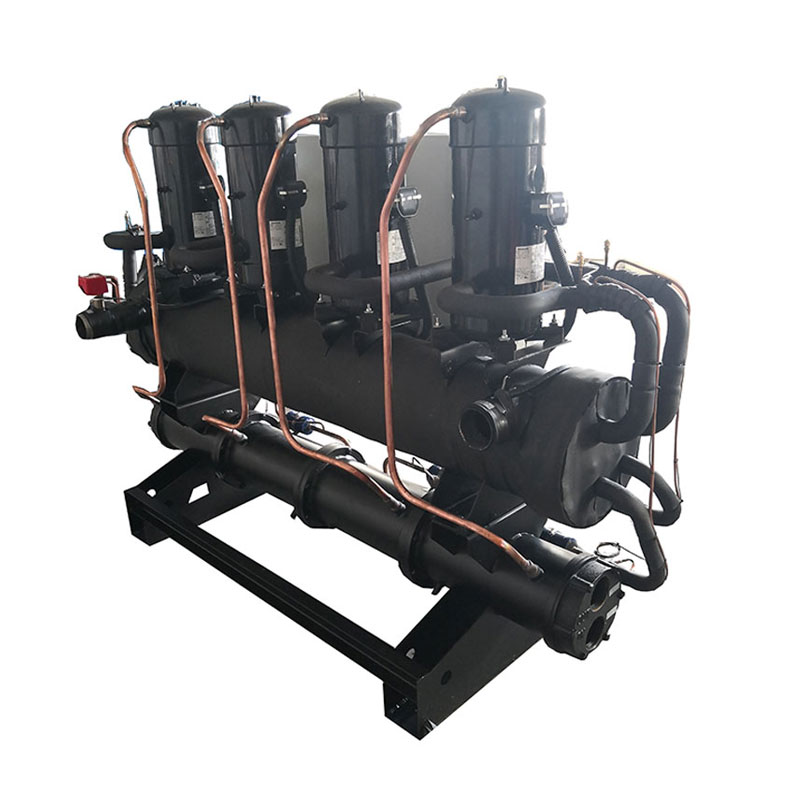

50 Ton Industrial Water Cooled Scroll Chiller
  • 50 Ton Industrial Water Cooled Scroll Chiller50 Ton Industrial Water Cooled Scroll Chiller
  • 50 Ton Industrial Water Cooled Scroll Chiller50 Ton Industrial Water Cooled Scroll Chiller

50 Ton Industrial Water Cooled Scroll Chiller

Tongwei is one of the professional 50 Ton Industrial Water Cooled Scroll Chiller manufacturers and suppliers in China, offering water-cooled scroll chillers in various cooling capacities from 3HP to 60HP to suit the needs of customers despite their varying circumstances. We have provided top-quality water chillers that can work in various settings such as in the rubber and plastic industry, metal surface treatments, food and beverage, and even in the chemical industry. Our Industrial water-cooled scroll chillers feature famous scroll compressors such as Danfoss and Panasonic and use Schneider electrical components. 50 Ton 200KW Industrial Water Cooled Scroll Chiller is with scroll compressor and need connect with cooling tower for heat dissipation, it is with CE certification and 12 months warranty, any problem caused by defects of chiller itself, service offered till the problem within warranty. Many our standard industrial water cooled scroll chillers are available for fast shipping, and we offer excellent after-sales technical support to ensure your system keeps your processes running strong. We look forward to becoming your long-term industrial water cooled scroll chiller system supplier in China.

Chiller Model:TW-60WF
Cooling Capacity:197.4KW(169764 kcal/h) @ 50HZ / 236.88KW(203717 kcal/h) @ 60HZ
Refrigerant:R22/R407c/R410a/R134A/R404a
Power Supply:380V/50HZ /3PH (Standard) / 208-480V/60HZ/3PH(Customized)
Compressor Brand:Panaonic/Danfoss Scroll Compressor
Evaporator Type:Shell and Tube

Send Inquiry

Product Description


50 Ton 200KW Industrial Water Cooled Scroll Chiller

High quality 50 Ton Industrial Water Cooled Scroll Chiller is offered by China manufacturers Tongwei. Industrial water-cooled scroll chiller is that cooling from the absorbed heat is rejected to the additional fluid circuit. It is a heat exchanger that removes unnecessary heat from the refrigerant and transfer to the water running through it.Since it is water-cooled, the condenser functions like a specialized heat exchanger that condenses the high-temperature and high-pressure gas from compressor into a liquid.


So it has cooling towers, rivers, or ponds for heat dissipate.Tongwei is one of the well-known manufacturers of industrial chillers. Industrial water-cooled scroll chiller has several basic components, including:cooling tower,condenser water pump,cooling device,and water tank.


50 Ton Industrial Water Cooled Scroll Chiller model TW-60 WF with FOUR 15HP hermetic SCROLL Panasonic/Danfoss compressors using R410A/R407C refrigerant,shell and tube evaporator without water tank. The refrigerant is a non-depleting ozone gas and is considered environmentally friendly. The Industrial water cooled scroll chiller combine innovative evaporator design with the latest energy-saving technology to form an efficient, reliable, at a competitive price,they are widely used for the controlled water temperature of products, mechanisms, and factory machinery in a wide range of industries such as injection molding, extrude machine,food and beverage, tool and die-cutting, lasers, chemicals, pharmaceutical,and more.


Our industrial water cooled scroll chillers feature high-quality components and cutting-edge technology that adheres to industry standards. For the chillers offered by Tongwei, our clients can choose from many specifications and sizes. Furthermore, being one of the top water chiller manufacturers and suppliers, we offer these chillers to our customers at competitive prices.If you are searching for the 5KW to 200KW Industrial water cooled scroll chiller manufacturer in China,Contact us now to suitable Chiller model at reasonable costs.


150KW Industrial Water-cooled Scroll Chiller  Technical Specification MODEL:TW-50WF

Model

TW-50WF

nominal cooling capacity

KW

50HZ

156.4

60HZ

187.68

Ton

50HZ

36.70

60HZ

42.93

Chilled Water temperature range

5~35

Max power consumption

kw

51.1

Full load

Amp

96.1

power source



3PH-380V-50HZ (Standard)

3PH-220-480V-60HZ (Customized)

refrigerant

type



R22/R407C/R410A/R134A

control



External balance of thermal expansion valve

compressor

type



hermetic scroll type

power

kw

10.8*4

QTY.

Unit

4

condenser

type



Shell and tube condenser

cooling water

m3/h

35

Diameter

inch

3"

evaporator

type



Coil in Water tank evaporator (Standard)

shell and tube Type Evaporator (Customized)

Chilled water

m3/h

26.9

Tank volume

L

620

inlet and outlet connection(BSP)

inch

                             3’’

Water pump

power

kw

                            5.5

Water Flow

M3/h

                           40

Max.Pressure

Bar

                            2

safety devices

Compressor overheating protection,over-current protection,high and low pressure protection,over-temperature protection,traffic protection,phase sequence/phase loss protection,low level protection,frost protection

dimension

mm

2200*1100*1750

weight

kg

980


How Does 50 Ton Industrial Water Cooled Scroll Chiller Work?


Features of Industrial Water Cooled Scroll Chiller

»Industrial water cooled scroll chiller capacity 5KW to 200 KW

»Temperature control 7℃ to 25℃

»220V-570V/60HZ 3PH for customize design.Different design available on request

»High-quality scroll Panasonic/Danfoss compressor

»Shell and tube evaporator.

»Schneider brand electric components ensure the water cooled scroll compressor chiller running stably with long service time

»Low noise and less vibration

»Connecting with water cooling tower for High-efficiency cooling


What Are The Main Components Of 50 Ton Industrial Water Cooled Scroll Chiller?

4.1 Compressor

The compressor is the key mover in Industrial water cooled scroll chiller because it produces pressure variations to stir the refrigerant around.

For 50 Ton 200KW Industrial Water Cooled Scroll Chiller, which is with FOUR units 15HP Panasonic /Danfoss brand compressor, using R410A/R407C refrigerant,this brand compress is with high refrigeration efficiency,low noise ,energy saving,environmental protection and durability,safety and stability.

Panasonic Compressor


4.2 Evaporator

The evaporator is a crucial component of industrial water cooled scroll chiller system, as it is responsible for extracting heat from the liquid being cooled,it is located between the compressor and the expansion valve. There are three types of evaporators : coil in water tank evaporator , shell and tube evaporator, 304SS stainless steel plate type evaporator.

Coil in SS Water Tank Evaporator


SS Plate Type+ Water Tank Evaporator


Shell and Tube Evaporator


4.3 Water Pump

The water pump is designed to increase the pressure and the flow of the chilled water in a closed space.

the water pressure water pump for chiller is about 2 bar , but if you need more higher water pressure , please tell us when you inquiry .For example ,when you use chillers for cooling bottle blowing machine ,the water pressure for water pump need about 4 bar .

Water Pump


High Pressure Water Pump


4.4 Condenser

The condenser for industrial water cooled scroll chiller system is shell and tube ,with the internal copper tubes employing an outer thread embossing process.This design effectively enhances the heat exchange efficiency between the refrigerant and water during the process. Compared to traditional smooth copper tubes, the outer thread embossing process increases the surface area of the copper tubes, thereby expanding the contact area for heat exchange and improving the thermal conductivity of the condenser. This optimization design allows the condenser of the water-cooled chiller to transfer heat from the refrigerant to the water more rapidly and consistently, enabling the water to carry away the heat.



Shell and tube Condenser


4.5 Controller Panel

Tongwei chillers use precision digital temperature controller, it RS485 communication port,which can do remote monitoring and control. Simple operation, low failure rate, high safety factor, easy installation.



Controller Panel


Spare Part for Industrial Water Cooled Scroll Chiller


How I Can Choose The Right Industrial Water Cooled Scroll Chiller ?

There are five important chiller specifications you need consider when you choose a chiller for your application :the cooling capacity of chiller ,the voltage required for operation, the associated pump horsepower and flow rate (contact us for custom selection), refrigerant, and the evaporator type.


6.1 Cooling Capacity for chiller

One of the most frequently ask about how we can know the cooling capacity for chillers. We use KW ,Ton, But/h,Kcal/h to choose chiller cooling capacity :1 KW=860 kcal/h ;  1 TON=3.517 KW; 1 KW=3412 Btu/h;


There is also a formula to calculate the cooling capacity for chiller:.

Cooling Capacity(kw)= Flow Rate(m3/h)*Temp Change(T1-T2)/0.86

Heat Load= C(specific heat)* M(quality output per hour )*Temp Change(T1-T2)

Oversize the chiller by 20% Ideal Size in KW = KW x 1.2

Noted : T1:Incoming Water Temperature (℃)      T2:Required Chilled Water Temperature(℃)



For example, what size of chiller is required to cool 10m³ water from 35°c to 15 °c in 1 hour?

Temperature Differential = 35℃-15℃=20℃

Water Flow Rate = 10 m³/hour

Cooling Capacity in KW = 10 x 20 ÷ 0.86 = 232 KW

Oversize the chiller = 232 x 1.2 = 278.4KW

278.4 kw cooling capacity for chiller is required.


6.2 Power

Different countries and regions have different standards for industrial electricity, the common power supplies are 208-230V, 380-420V,440-480V,50Hz or 60Hz, 3phase.

Such in Philippines ,the power supply is 220V 60HZ 3PH , 380V 60HZ 3PH ,460V 60HZ 3PH;

in Singapore and Malaysia ,the power supply is 415V 50HZ 3PH;

in Mexico ,the power supply is 220V 60HZ 3PH;

In USA ,the power supply is 208V 60HZ 3PH;575V 60HZ 3PH;480V 60HZ 3PH and so on


6.3 Water Pump

When you decide the capacity/tonnage of the chiller, we will recommend you the suitable pump in KW,which standard water pump is about 2 bar .If you need more high water pressure , please us when you inquiry.


6.4 Refrigerant

R22, R410A, R407C, R404A, R134A are optional choices.

R22: good cooling effect, but R22 is considered a powerful greenhouse gas, so it’s forbidden in most countries.

R410A: eco-friendly, R-410A has replaced R-22 as the preferred refrigerant for use in residential and commercial air conditioners in Japan, Europe, and the United States. R-410A operates at higher pressures than other refrigerants.

R407C: a good replacement for R22, good cooling effect.

R404A: suitable for application that requires low temperature(below -10°c).

R134A: a non-flammable gas used primarily as a “high-temperature” refrigerant, suitable for air-cooled chiller working at a high ambient temperature above 50℃.


6.5 Evaporator Choose

Chillers generally have two types of evaporators: one is coil in water tank evaporator ,the other one is shell and tube evaporator.

Coil and tank evaporator, which has a built-in water storage tank for more convenient use,so there’s no need for extra buffer tanks. This is also our standard evaporator for chiller , if you don’t have buffer tank ,we just use this evaporator for your chiller.

Shell and tube type evaporator, which requires an additional water buffer tank to connect .


How Choose Right Water Cooling Tower For Your Industrial  Water Cooled Scroll Chiller?

Water cooled scroll chiller need connect with water cooling tower and water cooling pump outside for heat dissipation,so how to choose right water cooling tower model to your water chiller ?

There are three important temperature factors you need to consider when choosing a cooling tower for water cooled chiller: inlet hot water temperature, outlet cold water temperature, and wet bulb temperature. The hot water temperature is that which enters the tower. The cold water temperature is that which leaves the water while the wet bulb temperature refers to the prevailing temperature of the geographic region where the tower is located.

Approach is the term used to refer to the difference between the temperatures of the water source as it enters the tower versus the temperature of the water once it has left the tower. This is a crucial determiner of the effective of the heat exchange process.


To choose the right cooling tower, mechanical efficiency should be given priority. This refers to the amount of fan power needed to circulate ambient air within the cooling tower. The range – or the difference in temperature between hot and cold water – is also crucial as it will impact energy usage.


so to find out how to choose a cooling water tower with sufficient cooling capacity, you should understand what circumstances require the use of a cooling tower. Please find the below water cooling tower is suitable for water cooled screw chiller :

Cooling Capacity of Chiller

 Water Cooling Tower Capacity

5HP(16KW/4 Ton)

15 To

6HP(19KW/5 Ton)

15 Ton

8HP(25KW/7 Ton)

20 Ton

10HP(30KW/8 Ton)

20 Ton

12HP(40KW/11 Ton)

25 Ton

15HP(50KW/14 Ton)

25To

20HP(65KW/18 Ton)

30 Ton

25HP(80KW/22 Ton)

40Ton

30HP(100KW/28 Ton)

40 Ton

40HP(130KW/37 Ton)

To

50HP(153KW/43Ton)

60 Ton

60HP(200KW/56 Ton)

80 Ton



Industrial Applications of Industrial Water-cooled Scroll Chiller

Industrial water cooled scroll chiller is very popular refrigeration system that can provide steady and reliable water cooling sources for both industrial and commercial usage,which is also widely used in plastic industry,food industry ,chemical industry and other industrial.


8.1 Plastic Industry

Industrial water cooled scroll chiller are also widely used in plastic processing and plastic industry including plastic injection molding, plastic extrude, and extrusion lines, blowing molding machines.

The function of using an Industrial air cooled scroll chiller is to provide the cooling water flow rate for cooling the plastic mold temperature down to make sure the product quality and production efficiency.

Industrial water cooled scroll chiller For Plastic Industry


8.2 Food and Beverage Industry

Water-cooled scroll chiller systems are an efficient way to cool your products without freezing in the manufacturing vessel. Some examples such as wine fermentation, beer/brewery chiller, carbonated water chillers, and dairy processes have all been enhanced with the use of water-cooled scroll chiller. The water is chilled in the chillers and then flows through closed loop tubes attached to the heat exchanger food and beverage containers. This prevents metal corrosion often found in water and also keeps your product at a consistent temperature. Whether you need the best yeast to keep your wine fermenting or prevent your milk from going rancid, a water-cooled scroll chiller can help you achieve your ideal results.

Industrial chiller For Food Industry


8.3 Chemical Industry

The pharmaceutical industry prepares medicines by processing through different heating and cooling parameters as blending, extrusion, mixing,water cooled scroll chillers are cooling machines providing low-temperature cooling water, reduce the temperature of the chemical machinery and pharmaceutical cooling processing.

Industrial water cooled scroll chiller For Chemical industry


9Shipping Way of 50 Ton Industrial Water Cooled Scroll Chiller

As a professional industrial water chiller supplier &exporter,we have our own shipment forwarder to arrange the shipment .Our chiller machine is with plywood packing,which prevent damage during transportation and meet export standards.There are three ways can delivery your chiller unit :


1. Ship by Air: As the chiller is with compressor ,water pump and fans ,the compressed refrigerant and oil inside the compressor is a dangerous item with the possibility of explosion , so it needs to release the compressed refrigerant before transportation. (It means that water chiller without refrigerant when choosing this shipping way. After the machine arrives at your destination, you need to add refrigerant by local professionals. The airline company also request us to provide many documents to prove that the chiller not a dangerous product. The freight cost by air is very high may be higher than the cost of chiller , So By air for delivery is not the mode of transport recommended to our customer.


2. Ship by Sea: The transportation time is longer than by air , but the freight cost is cheap ,and there is no need to add refrigerant after the equipment arrives at the destination.This shipping way is the most suitable mode of transportation for you to delivery your local port.


3.If you have your own shipment container in your other supplier in China, we can help you delivery the chiller machine to your supplier in any city of China .


Why should you choose Tongwei for your industrial water cooled compressor chiller supplier?

▪ Experience you can trust

We have been designing and building industrial process chiller for over 15 years. From air cooled chiller to water cooled chillers and everything in between, we have built chillers for nearly every industry and every application.


▪ Fast Quote

Get a quote for your project today! We typically provide a custom quote within 2 hours.


▪ 24/7 customer service

Believe that we will always be by your side. Whether you have a question or need a quote, there‘s always someone answering the phone 24 hours a day.


▪ Durable, reliable chiller machine & Competitive Price

Our products are manufactured from high quality materials and we offer a competitive warranty on all industrial chillers.
