Links | Sitemap | RSS | XML | Privacy PolicyTongwei is a China 15 Ton Industrial Water Chiller Unit Manufacturer and Supplier over 15 years, which supplying a full line of models with varying cooling capacity from 5KW to 1500KW, and exported thousands of high-quality water chiller units to the Philippines, Australia, New Zealand, Malaysia, Singapore, Indonesia, Chile, Mexico, Brazil, Argentina, Colombia, South Africa, Nigeria, Saudi Arabia, Egypt, Dubai, Spain, Italy, etc. 15 Ton 70KW Industrial Water Chiller Unit need connect with cooling tower and water cooling pump for heat dissipation, it is with CE certification and 12 months warranty. Many industrial water hiller units are available for fast shipping, and we offer excellent after-sales technical support to ensure your system keeps your processes running strong. We look forward to becoming your long-term industrial water chiller unit supplier in China. Chiller Model: TW-20WD Cooling Capacity: 67.14KW(57748 kcal/h) @ 50HZ / 79.56KW(67565 kcal/h) @ 60HZ Refrigerant: R22/R407c/R410a/R134A/R404a Power Supply: 380V/50HZ /3PH (Standard) / 208-480V/60HZ/3PH(Customized) Compressor Brand: Panaonic/Danfoss Scroll Compressor Evaporator Type: Coil in SS Water Tank (Standard) / Shell and Tube(Customized)
Find a huge selection of 15 Ton Industrial Water Chiller Unit from China at Tongwei. Industrial water chiller unit is type of cooling device used to remove heat from a process and have a separate cooling tower to remove heat from the refrigerant. It is used for the controlled water temperature of products, mechanisms, and factory machinery in a wide range of industries such as injection molding, food and beverage, tool and die-cutting, lasers, chemicals, machine tools, semiconductors, and more. 15 Ton Industrial Water Chiller Unit model TW-20WD with TWO 10HP hermetic scroll Panasonic compressors using R410A/R407C refrigerant. The refrigerant is a non-depleting ozone gas and is considered environmentally friendly. It also includes shell and tube condenser, stainless steel coil in water tank evaporator, refrigeration circuit, microprocessor controller,water pump and protecting devices.These chillers units combine innovative evaporator design with the latest energy-saving technology to form an efficient, reliable, fully packaged process chiller at a competitive price.
As a top industrial water chiller unit manufacturer and supplier in China, our industrial water chiller unit is manufactured by our highly qualified workforce using premium quality components and advanced technology adhering to pre-defined refrigeration industry norms and standards. This ensures the sturdiness, longevity and corrosion resistance of water-cooled chiller products. Our water-cooled chillers are available in a variety of sizes and configurations to meet our customers' needs.
Model |
TW-20WD |
||||
nominal cooling capacity |
KW |
50HZ |
67.14 |
||
60HZ |
79.56 |
||||
Ton |
50HZ |
23.18 |
|||
60HZ |
27.82 |
||||
Chilled Water temperature range |
℃ |
5~35 |
|||
Max power consumption |
kw |
17.2 |
|||
Full load |
Amp |
47.8 |
|||
power source |
|
3PH-380V-50HZ (Standard) 3PH-220-480V-60HZ (Customized) |
|||
refrigerant |
type |
|
R22/R407C/R410A/R134A |
||
control |
|
External balance of thermal expansion valve |
|||
compressor |
type |
|
hermetic scroll type |
||
power |
kw |
7.5*2 |
|||
QTY. |
Unit |
2 |
|||
condenser |
type |
|
Shell and tube condenser |
||
cooling water |
m3/h |
14.4 |
|||
Diameter |
inch |
2" |
|||
evaporator |
type |
|
Coil in Water tank evaporator (Standard) shell and tube Type Evaporator (Customized) |
||
Chilled water |
m3/h |
11.35 |
|||
Tank volume |
L |
300 |
|||
inlet and outlet connection(BSP) |
inch |
2’’ |
|||
Water pump |
power |
kw |
2.2 |
||
Water Flow |
M3/h |
25.2 |
|||
Max.Pressure |
Bar |
2 |
|||
safety devices |
Compressor overheating protection,over-current protection,high and low pressure protection,over-temperature protection,traffic protection,phase sequence/phase loss protection,low level protection,frost protection |
||||
dimension |
mm |
1660*855*1760 |
|||
weight |
kg |
470 |
»Industrial water chiller unit capacity 5KW to 1500 KW
»Temperature control 7℃ to 25℃
»Temperature stability ±0.1℃ to ±2℃
»High-quality scroll /screw compressor
»SS coil in water tank,shell&tube or SS brazed-plate type evaporator for optional. Plate type evaporator provides large heat transfer surface, low coolant pressure loss and a compact design.
»Compact design with movement wheels
»Connecting with water cooling tower for High-efficiency cooling
The compressor is the key mover in Industrial water chiller unit because it produces pressure variations to stir the refrigerant around.

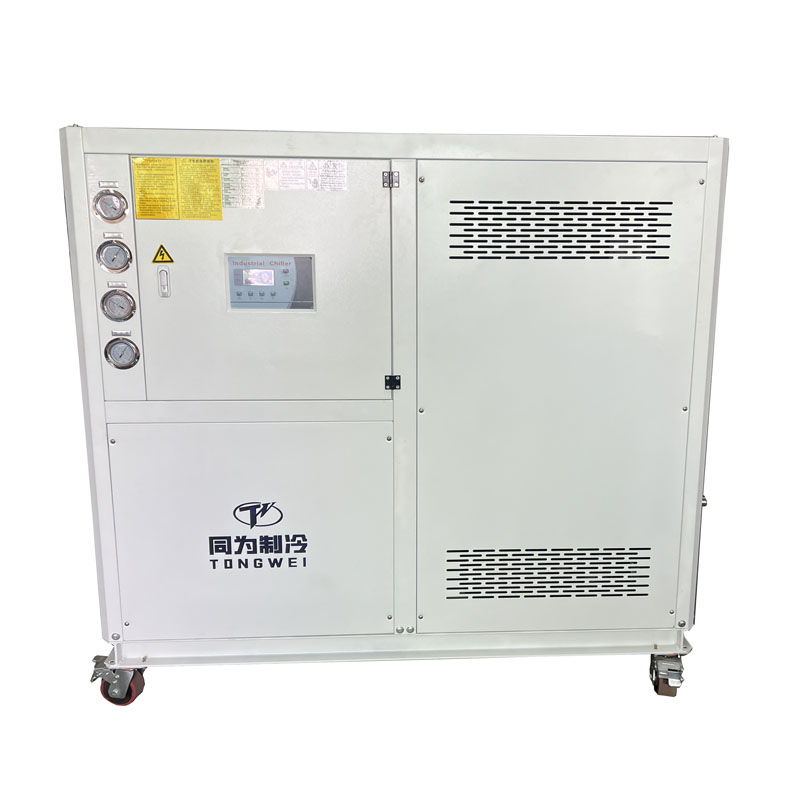

For 15 Ton 70KW Industrial Water Chiller Unit , which is with TWO units 10HP Panasonic brand compressor, using R410A/R407C refrigerant,this brand compress is with high refrigeration efficiency,low noise ,energy saving,environmental protection and durability,safety and stability.
Panasonic Compressor
The evaporator is a crucial component of industrial water chiller unit, as it is responsible for extracting heat from the liquid being cooled,it is located between the compressor and the expansion valve. There are three types of evaporators : coil in water tank evaporator , shell and tube evaporator, 304SS stainless steel plate type evaporator.
Coil in SS Water Tank Evaporator
SS Plate Type+ Water Tank Evaporator
Shell and Tube Evaporator
The water pump is designed to increase the pressure and the flow of the chilled water in a closed space.
the water pressure water pump for chiller is about 2 bar , but if you need more higher water pressure , please tell us when you inquiry .For example ,when you use chillers for cooling bottle blowing machine ,the water pressure for water pump need about 4 bar .
Water Pump
High Pressure Water Pump
The condenser for industrial water chiller unit is shell and tube ,with the internal copper tubes employing an outer thread embossing process.This design effectively enhances the heat exchange efficiency between the refrigerant and water during the process. Compared to traditional smooth copper tubes, the outer thread embossing process increases the surface area of the copper tubes, thereby expanding the contact area for heat exchange and improving the thermal conductivity of the condenser. This optimization design allows the condenser of the water-cooled chiller to transfer heat from the refrigerant to the water more rapidly and consistently, enabling the water to carry away the heat.
Shell and tube Condenser
Tongwei chillers use precision digital temperature controller, it RS485 communication port,which can do remote monitoring and control. Simple operation, low failure rate, high safety factor, easy installation.
Controller Panel
There are five important chiller specifications you need consider when you choose a chiller for your application :the cooling capacity of chiller ,the voltage required for operation, the associated pump horsepower and flow rate (contact us for custom selection), refrigerant, and the evaporator type.
One of the most frequently ask about how we can know the cooling capacity for chillers. We use KW ,Ton, But/h,Kcal/h to choose chiller cooling capacity :1 KW=860 kcal/h ; 1 TON=3.517 KW; 1 KW=3412 Btu/h;
There is also a formula to calculate the cooling capacity for chiller:.
Cooling Capacity(kw)= Flow Rate(m3/h)*Temp Change(T1-T2)/0.86
Heat Load= C(specific heat)* M(quality output per hour )*Temp Change(T1-T2)
Oversize the chiller by 20% Ideal Size in KW = KW x 1.2
Noted : T1:Incoming Water Temperature (℃) T2:Required Chilled Water Temperature(℃)
For example, what size of chiller is required to cool 10m³ water from 35°c to 15 °c in 1 hour?
Temperature Differential = 35℃-15℃=20℃
Water Flow Rate = 10 m³/hour
Cooling Capacity in KW = 10 x 20 ÷ 0.86 = 232 KW
Oversize the chiller = 232 x 1.2 = 278.4KW
278.4 kw cooling capacity for chiller is required.
Different countries and regions have different standards for industrial electricity, the common power supplies are 208-230V, 380-420V,440-480V,50Hz or 60Hz, 3phase.
Such in Philippines ,the power supply is 220V 60HZ 3PH , 380V 60HZ 3PH ,460V 60HZ 3PH;
in Singapore and Malaysia ,the power supply is 415V 50HZ 3PH;
in Mexico ,the power supply is 220V 60HZ 3PH;
In USA ,the power supply is 208V 60HZ 3PH;575V 60HZ 3PH;480V 60HZ 3PH and so on
When you decide the capacity/tonnage of the chiller, we will recommend you the suitable pump in KW,which standard water pump is about 2 bar .If you need more high water pressure , please us when you inquiry.
R22, R410A, R407C, R404A, R134A are optional choices.
R22: good cooling effect, but R22 is considered a powerful greenhouse gas, so it’s forbidden in most countries.
R410A: eco-friendly, R-410A has replaced R-22 as the preferred refrigerant for use in residential and commercial air conditioners in Japan, Europe, and the United States. R-410A operates at higher pressures than other refrigerants.
R407C: a good replacement for R22, good cooling effect.
R404A: suitable for application that requires low temperature(below -10°c).
R134A: a non-flammable gas used primarily as a “high-temperature” refrigerant, suitable for air-cooled chiller working at a high ambient temperature above 50℃.
Chillers generally have two types of evaporators: one is coil in water tank evaporator ,the other one is shell and tube evaporator.
Coil and tank evaporator, which has a built-in water storage tank for more convenient use,so there’s no need for extra buffer tanks. This is also our standard evaporator for chiller , if you don’t have buffer tank ,we just use this evaporator for your chiller.
Shell and tube type evaporator, which requires an additional water buffer tank to connect .
Water cooled chiller need connect with water cooling tower and water cooling pump outside for heat dissipation,so how to choose right water cooling tower model to your water chiller ?
There are three important temperature factors you need to consider when choosing a cooling tower for water cooled chiller: inlet hot water temperature, outlet cold water temperature, and wet bulb temperature. The hot water temperature is that which enters the tower. The cold water temperature is that which leaves the water while the wet bulb temperature refers to the prevailing temperature of the geographic region where the tower is located.
Approach is the term used to refer to the difference between the temperatures of the water source as it enters the tower versus the temperature of the water once it has left the tower. This is a crucial determiner of the effective of the heat exchange process.
To choose the right cooling tower, mechanical efficiency should be given priority. This refers to the amount of fan power needed to circulate ambient air within the cooling tower. The range – or the difference in temperature between hot and cold water – is also crucial as it will impact energy usage.
so to find out how to choose a cooling water tower with sufficient cooling capacity, you should understand what circumstances require the use of a cooling tower. Please find the below water cooling tower is suitable for water cooled screw chiller :
Cooling Capacity of Chiller |
Water Cooling Tower Capacity |
5HP(16KW/4 Ton) |
15 Ton |
6HP(19KW/5 Ton) |
15 Ton |
8HP(25KW/7 Ton) |
20 Ton |
10HP(30KW/8 Ton) |
20 Ton |
12HP(40KW/11 Ton) |
25 Ton |
15HP(50KW/14 Ton) |
25Ton |
20HP(65KW/18 Ton) |
30 Ton |
25HP(80KW/22 Ton) |
40Ton |
30HP(100KW/28 Ton) |
40 Ton |
40HP(130KW/37 Ton) |
50 Ton |
50HP(153KW/43Ton) |
60 Ton |
60HP(200KW/56 Ton) |
80 Ton |
As a professional industrial water chiller supplier &exporter,we have our own shipment forwarder to arrange the shipment .Our chiller machine is with plywood packing,which prevent damage during transportation and meet export standards.There are three ways can delivery your chiller unit :
1. Ship by Air: As the chiller is with compressor ,water pump and fans ,the compressed refrigerant and oil inside the compressor is a dangerous item with the possibility of explosion , so it needs to release the compressed refrigerant before transportation. (It means that water chiller without refrigerant when choosing this shipping way. After the machine arrives at your destination, you need to add refrigerant by local professionals. The airline company also request us to provide many documents to prove that the chiller not a dangerous product. The freight cost by air is very high may be higher than the cost of chiller , So By air for delivery is not the mode of transport recommended to our customer.
2. Ship by Sea: The transportation time is longer than by air , but the freight cost is cheap ,and there is no need to add refrigerant after the equipment arrives at the destination.This shipping way is the most suitable mode of transportation for you to delivery your local port.
3.If you have your own shipment container in your other supplier in China, we can help you delivery the chiller machine to your supplier in any city of China .
