Stationary air-cooled chiller is a type of cooling device that absorbs heat from process water, and the heat is dissipated by the fans and transferred to the air around the chiller unit,it does not include a pump and water tank. The main component is a self-contained chiller that must be piped to a pump and a separate tank or pool to function.This chiller system typically has separate controls for the chiller and pump or pumps, with electrical connections for each component. Ideally, the controls should be wired together to prevent the chiller from cooling until the circulation pump is running.Stationary air-cooled  chiller is equipped with Panasonic/Danfoss scroll compressor for 1/2HP to 60HP cooling capacity , semi-hermetic hanbell /Bizter screw compressor for above 30HP cooling capacity usingR407c, R22, R134a, , and R404a are all available depending on the chiller unit working condition, application requirements, and ambient temperature. The chiller temperature control range is from -30℃ to +25℃.Stationary air cooled chiller chiller is not only used for cooling food processing , but also widely used for die casting, rubber, printing, plastic injection molding, beverage production, metal polishing, the pharmaceutical industries and other other industries.

Stationary air cooled chiller for food processing is also called food processing chiller or food processing cooling system .Because food processing requires cooling, chillers also need to play a role in the food industry. It can cool food at high speed, better meet packaging requirements, and can also control the temperature of fermented food. The special refrigeration unit for the food industry is an indispensable chiller in the food industry. It is widely used in the food processing industry to quickly cool products and keep the temperature constant.

In many food industries, after food is processed at high temperatures, in order to be packaged quickly, the temperature of the food needs to meet the packaging requirements. At this time, it is necessary to use chillers in the food industry to process processed foods quickly and efficiently. In addition, during the food fermentation process, different temperatures are needed to stabilize the fermentation needs. Therefore, in order to ensure the quality of product fermentation, we also need to use chiller units dedicated to the food industry. In addition to the above two aspects, a chiller is also needed in the process of food preservation. In short, whether it is processing, fermentation, or preservation. Chillers do play a big role in the food industry.

As a leading stationary chiller manufacturer and supplier in China,we design chiller system with one purpose in mind: to keep your process running strong. With over 15 years of experience, we offer a robust range of industrial grade air cooled and water cooled chiller systems. We have a dedicated technical and customer support team who will guide you through the stationary chiller selection and startup process and be there for you long after installation. Rely on our industry-leading expertise to help you maximize your process operations and profits.If you are looking for stationary chiller system for your application, please feel free to contact us to customized your cooling water systems with high quality and reasonable price for the low temperature chillers. We look forward to working with you.

Stationary Air Cooled Chiller Technical Specification

How Does Stationary Air Cooled Chiller For Food Processing Work?

Stationary Air Cooled Chiller with Buffer Water Tank Outside Installation for Reference

Features of Stationary Air Cooled Chiller

»Chiller cooling capacity from 1/2 ton to 200 Ton.

»High quality branded Panasonic/Danfsso scroll compressor or Hanbell/Bizter screw compressor for low noise ad running smoothly.

»Shell and tube /stainless steel plate type evaporator

»Use refrigerants such as R404A, R410a, R134a/R407C, etc. to meet the requirements of refrigeration temperature and environmental protection

»Temperature selection range: Process chilled water between 35°C and -30°C can be provided (users can choose different unit specifications according to different production needs)

»No need water cooling tower

»Easy installation&operation,low-maintenance cost

What Are The Main Components Of Stationary Air Cooled Chiller For Food Processing?

4.1 Compressor

The compressor is the key mover in stationary air cooled Chiller because it produces pressure variations to stir the refrigerant around.

For stationary air cooled chiller for food processing , which is with Panasonic/Danfoss scroll compressor or Hanbell /Bizter brand Screw compressor for optional depends on the required refrigeration capacity, using R407C refrigerant,this brand compress is with high refrigeration efficiency,low noise ,energy saving,environmental protection and durability,safety and stability.

Each screw compressor with 4 steps of energy control 25%-50%-75%-100% to make sure the whole screw chiller is stable and guarantee high refrigeration performance.

Panasonic Compressor

Danfoss Compressor

Hanbell Screw Compressor

Bizter Screw Compressor

4.2 Evaporator

The evaporator is a crucial component of stationary chiller as it is responsible for extracting heat from the liquid being cooled,it is located between the compressor and the expansion valve. There are three types of evaporators : Stainless steel coil in water tank evaporator , stainless steel plate type evaporator ,shell and tube evaporator.

SS Coil in SS Water Tank Evaporator

Shell and Tube Evaporator

3.3 Water Pump

The water pump is designed to increase the pressure and the flow of the chilled water in a closed space.

the water pressure water pump for chiller is about 2 bar , but if you need more higher water pressure , pls tell us when you inquiry .For example ,when you use chillers for cooling bottle blowing machine ,the water pressure for water pump need about 4 bar .

Water Pump

High Pressure Water Pump

3.4 Condenser

The condenser for stationary air-cooled chiller is equipped with efficient cross-seam fins and female threaded copper tubes for high heat exchange efficiency and good stability.Its function is to cool down the refrigerant steam released from the compressor into a liquid or gas-liquid mixture.

Aluminum fin+fan Condenser

4.5 Controller Panel

Tongwei chillers use precision digital temperature controller, it RS485 communication port，which can do remote monitoring and control. Simple operation, low failure rate, high safety factor, easy installation.

Controller Panel

5.Stationary Air Cooled Chillers Vs Stationary Water Cooled Chillers

▪ Air cooled chillers require less maintenance than water-cooled units.

▪ Air cooled chillers do not require a water cooling tower or a condenser water cooling pump.

▪ Consume approximately 10% more power than a water-cooled unit due to wet surfaces transferring heat better than dry surfaces.

▪ Air-cooled chillers require less water.

Air-cooled chiller systems are widely used in places where water resources are not sufficient or water quality is not very good. The most convenient part is that air-cooled chiller systems do not require cooling towers, so they are easy to install. (If an air-cooled chiller isn’t what you need, please refer to water-cooled chiller.)

         120 Ton Stationary Air-Cooled Chiller

120 Ton Staitionary Water-Cooled Chiller

What are Differences Between Stationary Chiller and Portable Chiller ?

The main difference between stationary chiller and portable chiller is that :

Stationary chiller does not include a pump or tank inside , which need buffer water tank and water pump outside;

Portable chiller combines all necessary components including – the refrigeration circuit, full diagnostic touch screen controllers and electrics, process pump ,a reservoir tank,which is easily to install.

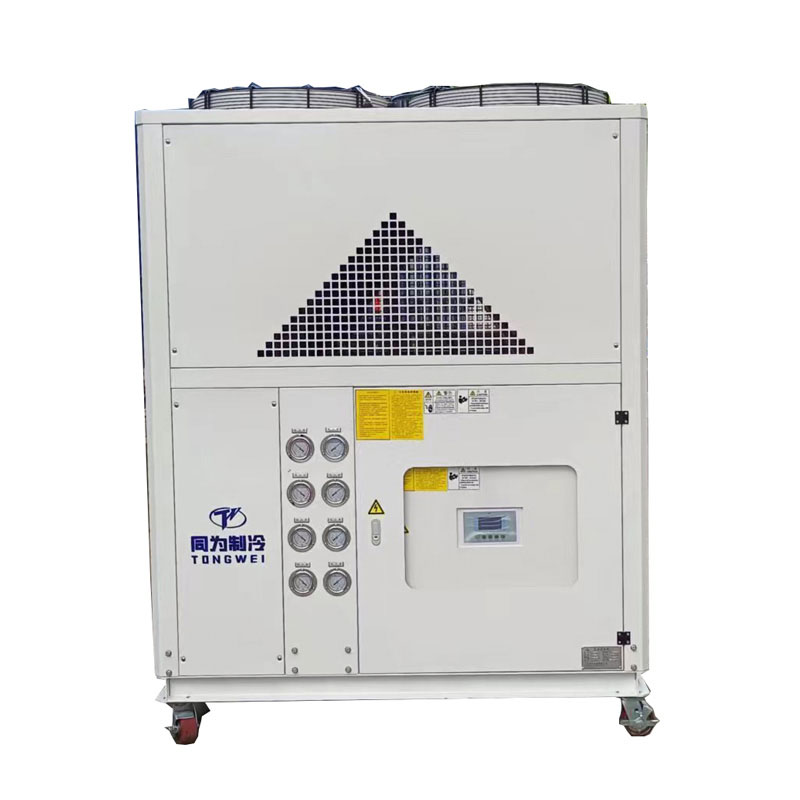

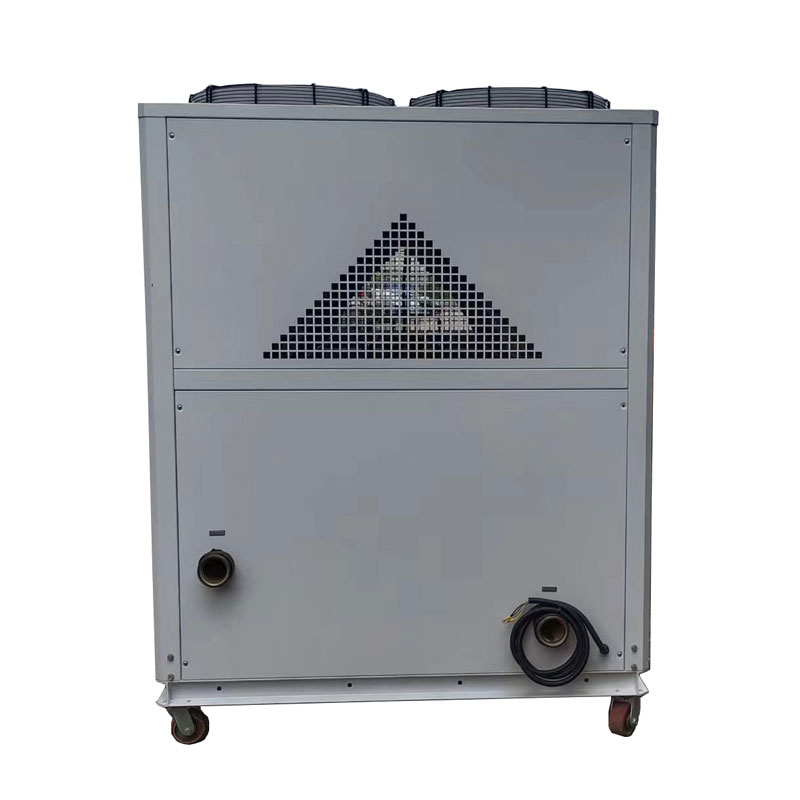

Stationary Air-Cooled Chiller

Portable Air-Cooled Chiller

How I can Choose the Right Stationary Air Cooled Chiller?

There are FIVE important chiller specifications you need consider when you choose a chiller for your application :the cooling capacity for chiller ,the voltage required for operation, the associated pump horsepower and flow rate (contact us for custom selection), refrigerant, and the evaporator type.

7.1 Calculate Right Cooling Capacity For Chiller

One of the most frequently ask about how we can know the cooling capacity for chillers.  We use KW ,Ton, But/h,Kcal/h to choose chiller cooling capacity :1 KW=860 kcal/h ;  1 TON=3.517 KW;

1 KW=3412 Btu/h;

There is also a formula to calculate the cooling capacity for chiller:.

Cooling Capacity(kw)= Flow Rate(m3/h)*Temp Change(T1-T2)/0.86

Heat Load= C(specific heat)* M(quality output per hour )*Temp Change(T1-T2)

Oversize the chiller by 20% Ideal Size in KW = KW x 1.2

Noted : T1:Incoming Water Temperature (℃)      T2:Required Chilled Water Temperature(℃)

For example, what size of chiller is required to cool 10m³ water from 35°c to 15 °c in 1 hour?

Temperature Differential = 35℃-15℃=20℃

Water Flow Rate = 10 m³/hour

Cooling Capacity in KW = 10 x 20 ÷ 0.86 = 232 KW

Oversize the chiller = 232 x 1.2 = 278.4KW

278.4 kw cooling capacity for chiller is required.

7.2 Power

Different countries and regions have different standards for industrial electricity, the common power supplies are 208-230V, 380-420V,440-480V,50Hz or 60Hz, 3phase.

Such in Philippines ,the power supply is 220V 60HZ 3PH , 380V 60HZ 3PH ,460V 60HZ 3PH;

in Singapore and Malaysia ,the power supply is 415V 50HZ 3PH;

in Mexico ,the power supply is 220V 60HZ 3PH;

In USA ,the power supply is 208V 60HZ 3PH;575V 60HZ 3PH;480V 60HZ 3PH and so on

7.3 Refrigerant

R22, R407C, R404A, R134A are optional choices.

R22: good cooling effect, but R22 is considered a powerful greenhouse gas, so it’s forbidden in most countries.

R407C: a good replacement for R22, good cooling effect.

R404A: suitable for application that requires low temperature(below -10°c).

R134A: a non-flammable gas used primarily as a “high-temperature” refrigerant, suitable for air-cooled chiller working at a high ambient temperature above 50℃.

7.4 Evaporator Choose

Air cooled screw chiller generally uses one evaporators: just is shell and tube heat exchanger.Shell and tube type evaporator, which requires an additional water buffer tank to connect.

7.5 Buffer Water Tank Capacity Choose

Buffer tank’s capacity can be customized according to specific needs. It can buffer a larger heat load, store more chilled water .

304 Stainless Steel Water Tank
