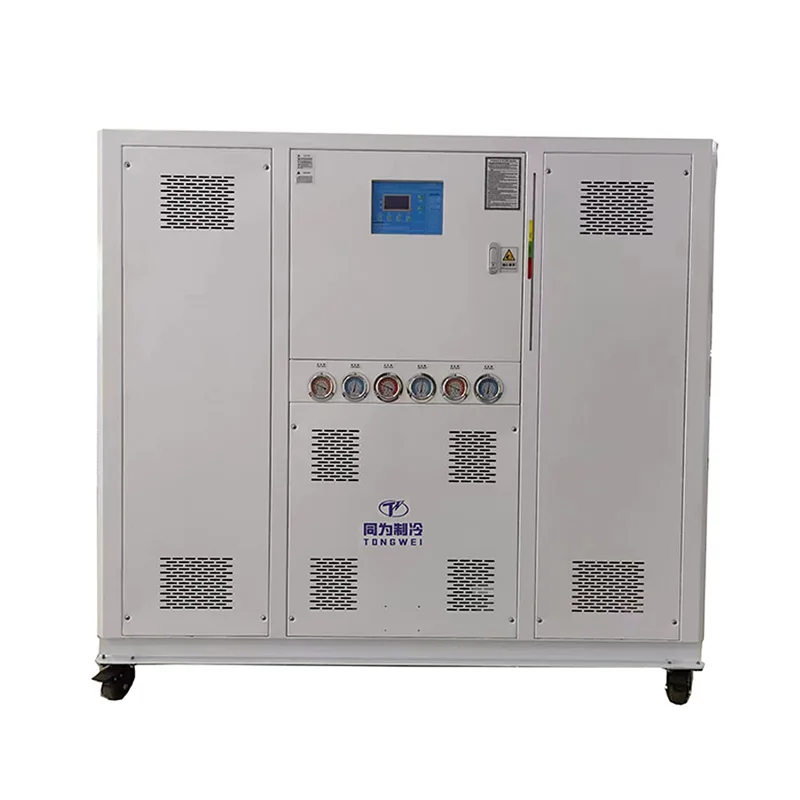

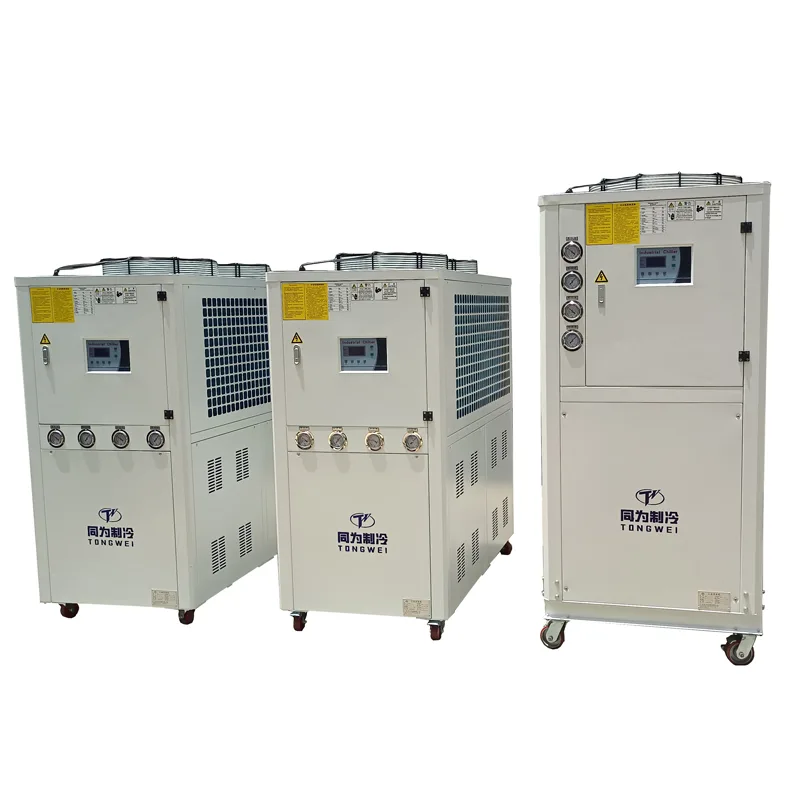

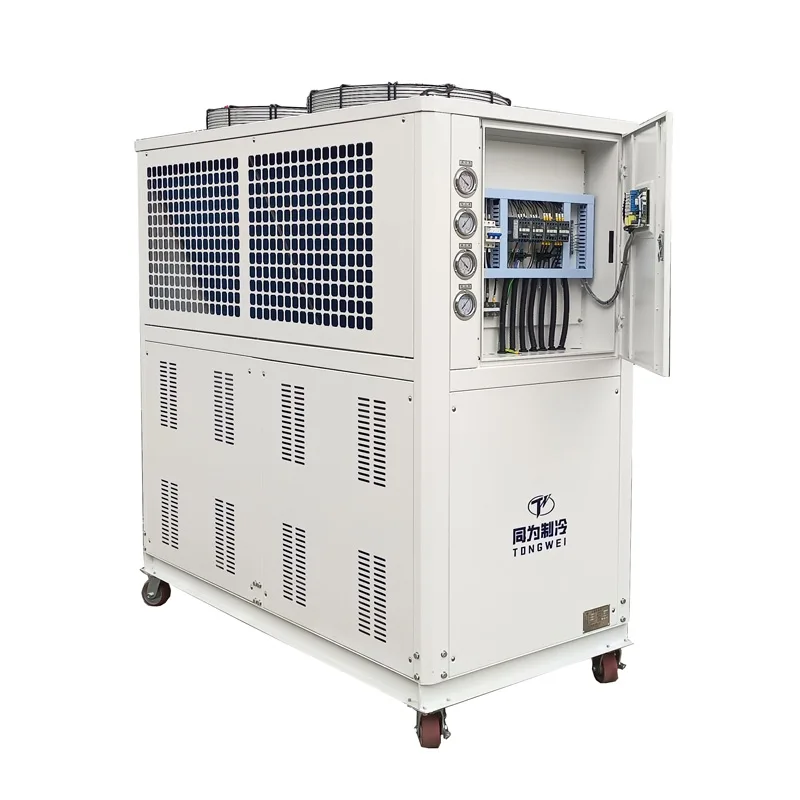

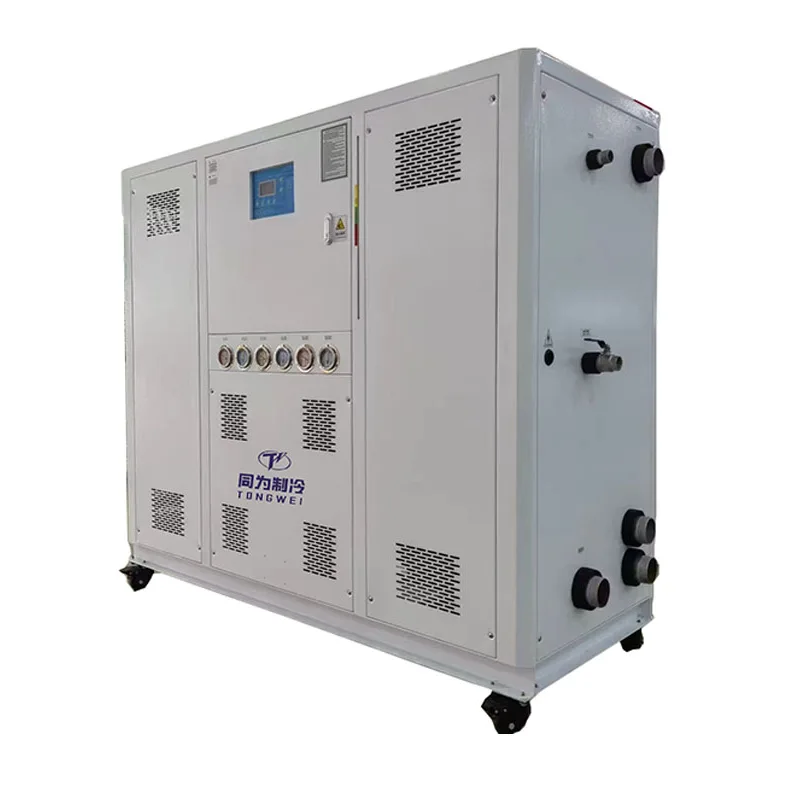

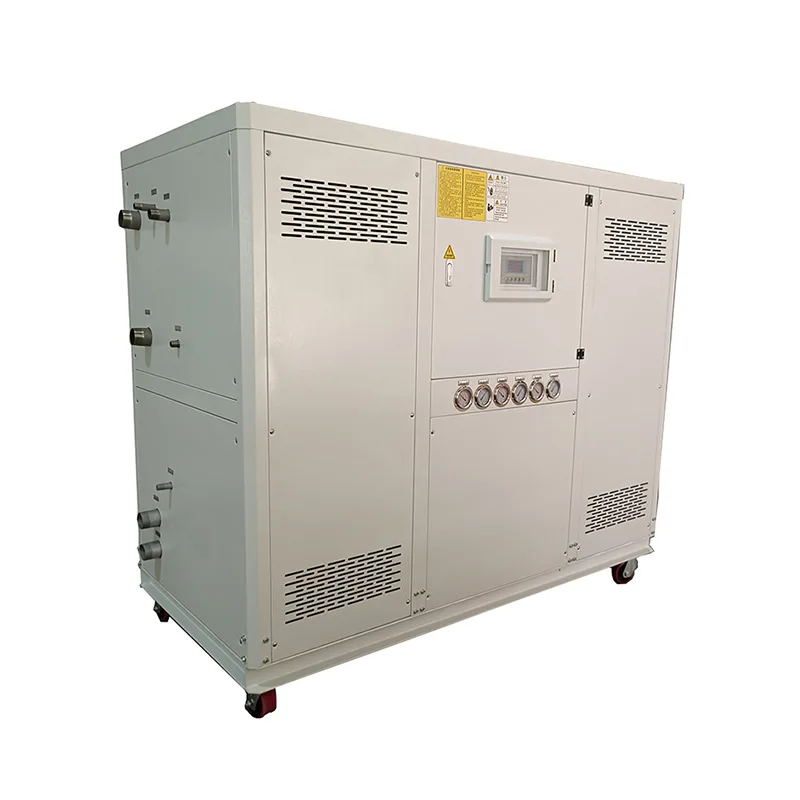

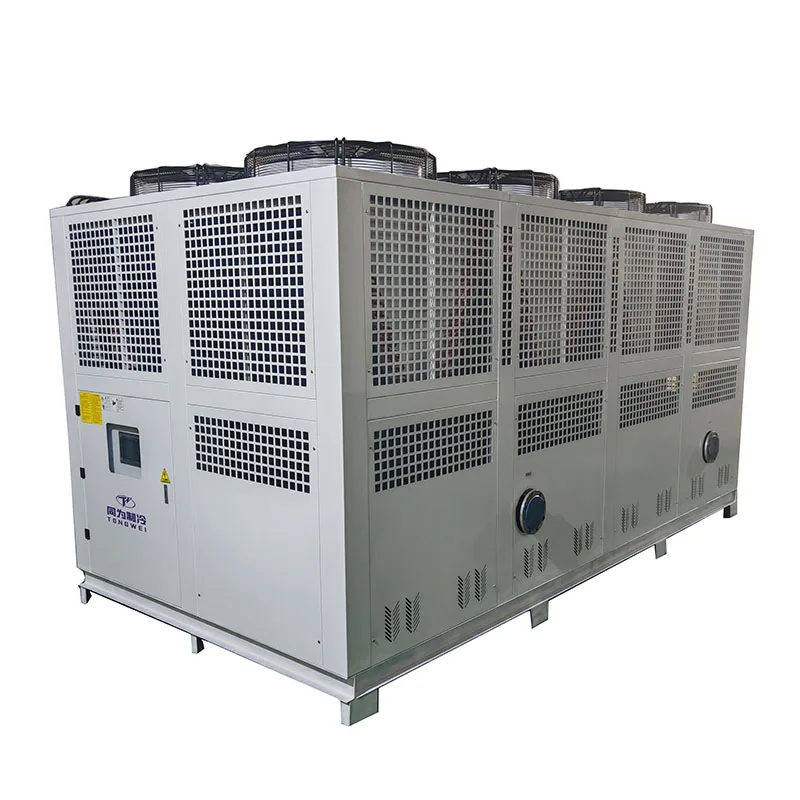

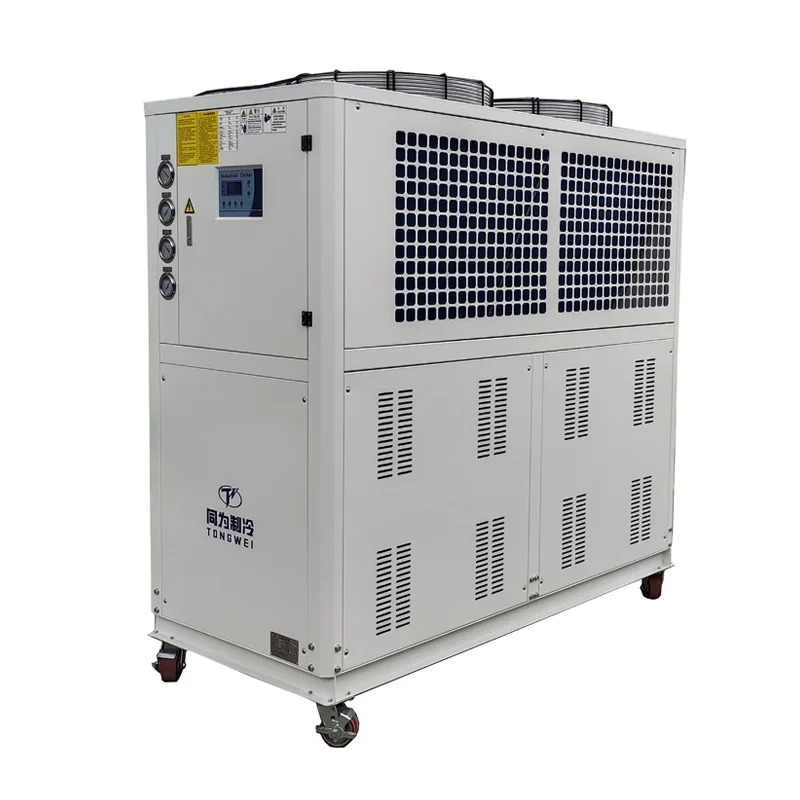

Portable Industrial Air Cooled Glycol Chiller

This portable industrial air cooled glycol chiller uses high-performance glycol-water mixture as the circulating cooling medium. It delivers stable and precise cooling temperatures ranging from -40℃ to 0℃,which unlike traditional air cooled water chillers that only operate stably above zero degrees , effectively preventing pipeline freezing, scaling, rusting, and internal corrosion in low-temperature operating conditions. The glycol chiller is equipped with heavy-duty universal casters, which  supports free movement across production lines, workshops, and outdoor sites, realizing true plug-and-play operation and fast on-site deployment with zero construction costs.

This portable air cooled glycol chiller is built with high-efficiency scroll compressors and optimized fin-type air condenser, ensuring rapid heat dissipation, low energy consumption, and quiet running performance. Glycol chillers use intelligent temperature control system provides precise temperature control accuracy up to ±0.1~2℃, supporting 24-hour uninterrupted stable operation with minimal temperature fluctuation.The portable air cooled glycol chiller is with multiple safety protection functions, including overpressure, overload, overcurrent, water shortage, and anti-freezing protection, fully secure continuous operation under complex industrial working conditions.

The portable industrial air cooled glycol chiller is widely versatile for industrial scenarios such as brewing, chemical, pharmaceutical, plastic molding, electroplating, new energy, and laboratory industries. It provides reliable low-temperature constant-temperature cooling for fermentation tanks, reaction kettles, molds, and precision testing equipment. Featuring excellent mobility, outstanding low-temperature performance, energy-saving operation, and low maintenance requirements, this air cooled glycol chiller offers a highly cost-effective and dependable cooling solution for global industrial low-temperature processing applications.Tongwei have the ingenuity and engineered solutions to solve even the most challenging low-temperature chiller needs.

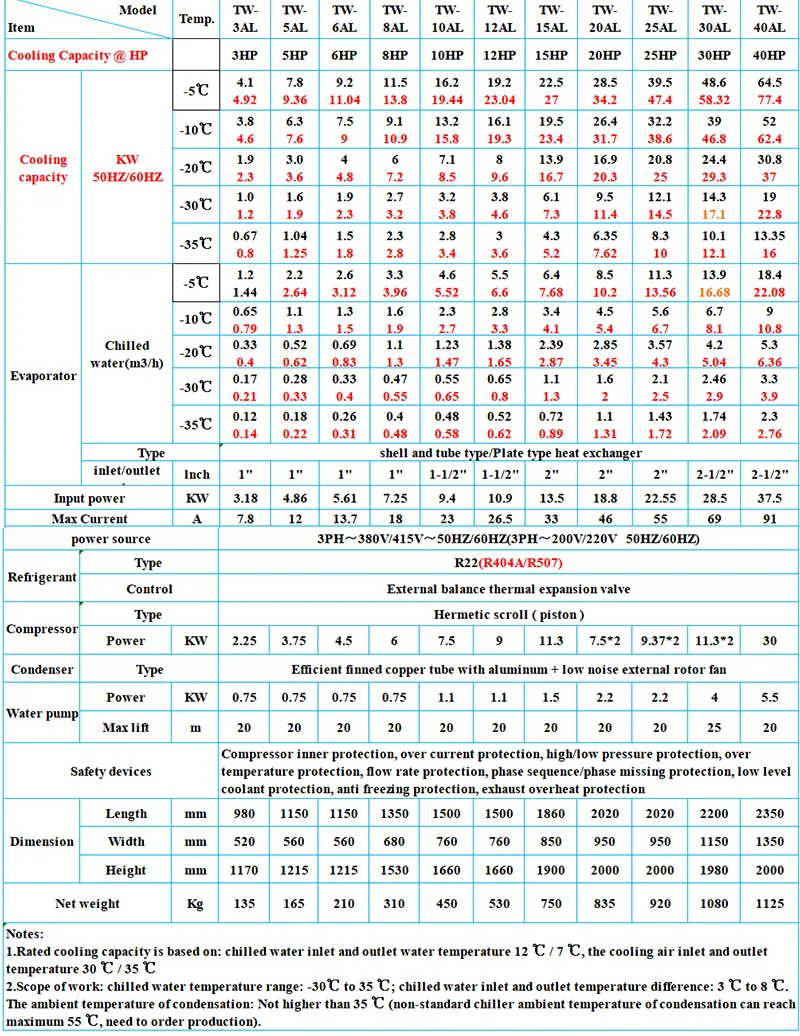

Portable Air Cooled Glycol Chiller Technical Specification

Working Principle of Potable Air Cooled Glycol Chiller

This portable air cooled glycol chiller operates based on a mature vapor compression refrigeration cycle, with a closed-loop circulating cooling system to achieve efficient and consistent heat exchange and temperature control. The entire working process is automatic and cyclic, divided into four core stages: refrigeration circulation, heat dissipation, medium circulation, and intelligent temperature regulation.

First, the high-efficiency scroll compressor compresses low-pressure gaseous refrigerant into high-temperature and high-pressure gaseous refrigerant, which is then delivered to the air-cooled condenser. The built-in high-speed silent axial fans continuously blow ambient air through the condenser coil to quickly take away heat, cooling the gaseous refrigerant into high-pressure liquid refrigerant.

After throttling and pressure reduction via the precision expansion valve, the liquid refrigerant turns into low-temperature and low-pressure gas-liquid mixture and enters the stainless steel evaporator. In the evaporator, the refrigerant fully absorbs heat from the circulating glycol-water medium, rapidly lowering the medium temperature. The cooled low-temperature glycol liquid is pumped to industrial production equipment, reaction kettles, fermentation tanks, and other cooling targets through a high-power circulating pump to take away process heat.

The heated glycol medium flows back to the chiller’s integrated water tank for secondary cooling and circulation, while the heated refrigerant returns to the compressor for the next refrigeration cycle. Equipped with an intelligent temperature control system, the unit automatically adjusts compressor operating power and fan speed according to real-time load changes, maintaining precise constant temperature operation and realizing energy-saving and stable closed-loop cooling.

Features & Advantages of Portable Air Cooled Glycol Chiller

Portable & Easy Installation, Plug-and-Play

Portable chillers adopts an integrated compact box design with heavy-duty universal moving casters and adjustable leveling feet. The whole machine is pre-assembled and tested before delivery, requiring no professional installation, no water cooling tower, and no reserved water supply and drainage pipes. The ending users only need to connect the power supply and circulation pipelines to start chiller unit, supporting rapid deployment and free movement between multiple production stations, greatly saving installation time and site transformation costs.

Low-Temperature Anti-Freezing Cooling

The glycol chillers use industrial-grade glycol antifreeze solution as the cooling medium, effectively preventing pipeline freezing in low-temperature working environments. It supports ultra-low temperature stable operation as low as -40℃, filling the cooling gap of ordinary water chillers that cannot work below 0℃. It avoids pipeline scaling, blockage, and equipment corrosion, extending the service life of the cooling pipeline system.

High-Efficiency Energy Saving & Low Noise

This portable air cooled glycol chiller is equipped with a well-known brand high-efficiency scroll compressor with stable performance, fast cooling speed and high energy efficiency ratio. Matched with optimized fin-type copper tube condenser and large-area heat dissipation structure, the air cooling heat exchange efficiency is greatly improved. The intelligent load automatic matching system adjusts operating frequency in real time according to production heat load, avoiding idle power consumption, reducing comprehensive energy consumption by 15%-25% compared with traditional chillers. Meanwhile, with silent fans and shock-absorbing structure design, the operating noise is controlled within 60dB, meeting factory and laboratory noise standards.

Complete Safety Protection & Long Service Life

Air cooled glycol chillers come with multiple automatic protection functions including over-current, over-voltage, high/low pressure, overload, water shortage, and freezing protection. Once abnormal working conditions occur, the chiller unit will automatically alarm and stop operation to protect machine safety. Core components of glycol chillers adopt industrial-grade configurations, supporting 24-hour uninterrupted continuous operation with a service life of more than 10 years.

Low Maintenance & Wide Adaptability

The fully closed circulating medium system reduces medium volatilization and impurity contamination, avoiding frequent water replacement and pipeline cleaning work. The modular structure design facilitates daily inspection, maintenance and component replacement. It can adapt to various complex environments such as high temperature, dust, and unstable power supply in industrial workshops, with strong environmental adaptability.

Portable Glycol Chiller Use in Wide Application Industries

The portable industrial air cooled glycol chiller features flexible mobility, ultra-low temperature cooling, and stable operation, covering precision cooling needs of almost all industrial low-temperature process scenarios:

Beverage & Brewing Industry

Glycol chillers are suitable for temperature control of beer fermentation tanks, wine fermentation, beverage mixing and low-temperature storage. Stable low-temperature glycol cooling ensures uniform fermentation temperature, improves product taste and production stability.

Chemical & Pharmaceutical Industry

The glycol chiller is used for constant temperature cooling of chemical reaction kettles, crystallization reactions, pharmaceutical fermentation, extraction and purification processes. Precise low-temperature control prevents chemical raw material deterioration and ensures pharmaceutical production compliance.

Electroplating & Surface Treatment Industry

Glycol chiller serves for constant temperature cooling of electroplating baths, oxidation tanks and cleaning tanks. It stabilizes liquid temperature, ensures uniform electroplating layer, and improves surface treatment quality of workpieces.

Laboratory & Electronic Industry

The Portable air cooled glycol chiller is suitable for precision cooling of laboratory instruments, test benches, electronic component testing, semiconductor processing and laser equipment. It provides constant-temperature and low-temperature working environment for precision electronic equipment and experimental data accuracy.

Food Processing Industry

Glycol chiller are used for low-temperature cooling of food quick freezing, dough fermentation, dairy processing and food processing equipment to ensure food production safety and extend product processing cycle.

New Energy & Mechanical Processing Industry

Applied to cooling of new energy battery testing equipment, hydraulic systems, CNC machine tools and mechanical processing equipment, reducing equipment operating temperature and prolonging mechanical service life.

After-sales & Service Support

All Tongwei portable industrial air cooled glycol chillers have passed CE, ISO and other international certifications, compliant with global industrial production standards. We provide 18-month official warranty, lifelong technical support and 24-hour online after-sales service. Support customized cooling capacity, temperature range, voltage and mobile configuration according to customer production needs, to provide one-stop personalized industrial cooling solutions.

Whether for small-batch temporary cooling or large-scale long-term industrial production cooling, this portable air cooled glycol chiller delivers stable, efficient and economical low-temperature cooling power for your production. Welcome contact Tongwei Team by Email :[email protected]

Shipping Way of Portable Air Cooled Glycol Chiller

As a professional low temperature glycol chiller supplier &exporter,we have our own shipment forwarder to arrange the shipment .Our chiller machine is with plywood packing,which prevent damage during transportation and meet export standards.There are three ways can delivery your chiller unit :

1.Ship by Air: As the chiller is with compressor ,water pump and fans ,the compressed refrigerant and oil inside the compressor is a dangerous item with the possibility of explosion , so it needs to release the compressed refrigerant before transportation. (It means that water chiller without refrigerant when choosing this shipping way. After the machine arrives at your destination, you need to add refrigerant by local professionals.

The airline company also request us to provide many documents to prove that the chiller not a dangerous product. The freight cost by air is very high may be higher than the cost of chiller , So By air for delivery is not the mode of transport recommended to our customer.

2.Ship by Sea: The transportation time is longer than by air , but the freight cost is cheap ,and there is no need to add refrigerant after the equipment arrives at the destination.This shipping way is the most suitable mode of transportation for you to delivery your local port.

3.If you have your own shipment container in your other supplier in China, we can help you delivery the chiller machine to your supplier in any city of China .
