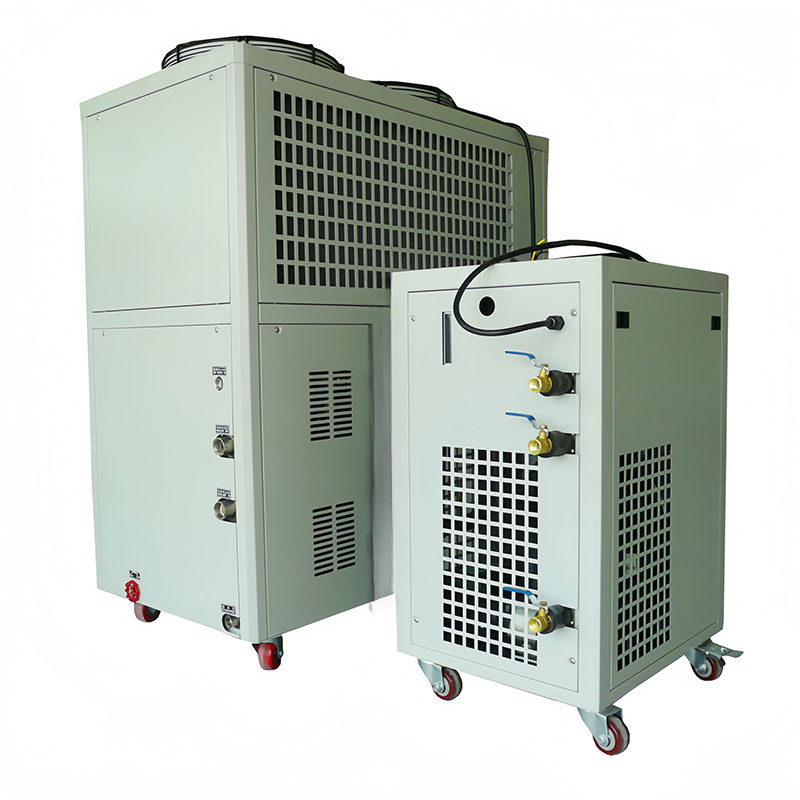

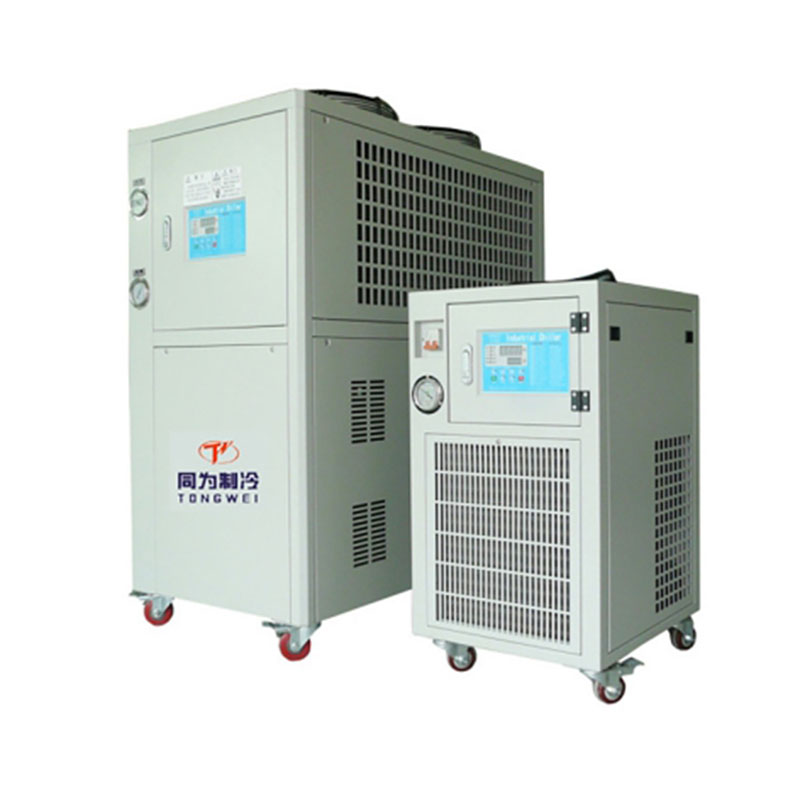

Industrial Air Hydraulic Oil Cooling Chiller Unit

Industrial Air Hydraulic Oil Cooling Chiller Unit

Industrial air hydraulic oil cooling chiller unit is a cooling device working on refrigeration principle and provides the cooling effect to hydraulic oil and lubricating oil circulating in processing machines by using chilled water as coolant,it relies on using fans to remove heat from outside the building rather than relying on a cooling tower. It cools the hydraulic power pack of the oil by providing a supply of chilled water to circulate and maintain precise oil temperatures in hydraulic systems of CNC machine tools, high-speed presses and hydraulic special machine tools and hydraulic equipment.

Hydraulic oil chiller designed by Tongwei maintains precise oil temperature is with some essential components as Panasonic/Danfoss scroll compressor using R410A/R407C refrigerant. The refrigerant is a non-depleting ozone gas and is considered environmentally friendly.The chiller includes oil pump and stainless steel oil tank inside,PHE/Shell and tube type evaporator,microprocessor temperature controller and High/low-pressure switches.Industrial oil chiller units are widely used in hydraulic systems of CNC machine tools, high speed presses and hydraulic powered special purpose machines and hydraulic equipment.

Our oil chiller feature high-quality components and cutting-edge technology that adheres to industry standards. For the chillers offered by Tongwei, our clients can choose from many specifications and sizes. Furthermore, being one of the top water chiller manufacturers and suppliers, we offer these chillers to our customers at competitive prices,and has exported various oil cooler cooling capacity from 1000W to 20000W to the USA, Canada, Philippines, Australia, Malaysia, Singapore, Indonesia, Chile, Mexico, ,Argentina, Colombia, South Africa, Kuwait, Egypt, Saudi Arabia etc. We not only provide high-quality chiller machines, but we prioritize excellent customer service. A major advantage of our Tongwei, is that our customers are our top priority, which sets us apart from our competitors. Our knowledgeable team is dedicated to providing excellent customer service and your satisfaction.Some of the key benefits our team provides for your chiller include:Thoroughly unpack, clean and test each chiller system before shipping; Conduct routine quality assurance checks on every unit; Only ship brand new machines and systems to our customers;Troubleshoot and resolve problems as promptly and efficiently as possible. Contact us today to get all of these great benefits with your oil chillers. A member of our team will be happy to address any questions you may have and discuss complete technical specifications. We look forward to working with you.

Industrial Air Hydraulic Oil Cooling Chiller Unit Technical Specification

Features And Advantages of Industrial Hydraulic Oil Cooling Chiller Unit

»The oil viscosity remains constant and featured by a micro temperature controller. The micro temperature controller detects changes in oil temperature from the set value and regulates it with liquid refrigerant.

»220V 50/60HZHZ 1PH or 208-480V 60HZ 3Phase power supply for option

» All hydraulic oil chiller units manufactured by Tongwei have Stainless steel brazed plate type heat exchanger and Oil Tank as the evaporator

»High-quality hermetic Panasonic Brand scroll compressor

»Compact design with portable wheels

»Easy installation&operation,low-maintenance cost

How Does Industrial Air Hydraulic Oil Cooling Chiller Unit Works?

The principle of vaporization and heat absorption of Freon in the evaporator is used for cooling.

When the oil chiller is working, the oil pump pumps oil from the oil tank in the machine to the evaporator of the oil chiller for heat exchange, and the cold oil is cooled from the cold oil.

The oil chiller takes the output and sends it back to the storage tank to mix with the hot oil.

The continuous circulation of oil reduces the temperature of the entire oil tank.

The temperature controller of the oil chiller automatically controls the opening and closing of the unit through the temperature sensor, so that the oil temperature is automatically constant at the set temperature.

What Are Types Of Oil Chillers ?

There are two types of precision oil chiller : one is Box Type Oil Chiller ,the other is Immersion oil chiller .

Box type oil chiller is built with oil pump and oil tank;

Immersion oil chiller is no built with oil pump and oil tank , it use Stainless steel coil as heat exchange.

          Box Type Oil Chiller

 Immersion Oil Chiller

What Are The Main Components of Industrial Air Hydraulic Oil Cooling Chiller Unit ?

5.1 Compressor

The compressor is the key mover in industrial air hydraulic oil cooling chiller unit because it produces pressure variations to stir the refrigerant around.It is with Panasonic brand compressor, using R410A/R407C refrigerant,this brand compress is with high refrigeration efficiency,low noise ,energy saving,environmental protection and durability,safety and stability.

Panasonic Compressor

5.2 Evaporator

The evaporator is a crucial component of Oil chiller, as it is responsible for extracting heat from the liquid being cooled,it is located between the compressor and the expansion valve. There are three types of evaporators :304SS stainless steel plate type + Oil Tank as heat exchanger.

SS Plate + Oil Tank Evaporator

5.3 Oil Pump

The oil pump is designed to increase the pressure and the flow of the chilled oil in a closed space.

Oil Pump

5.4 Condenser

The condenser for oil chiller is equipped with efficient cross-seam fins and female threaded copper tubes for high heat exchange efficiency and good stability.Its function is to cool down the refrigerant steam released from the compressor into a liquid or gas-liquid mixture.

Aluminum fin+fan Condenser

5.5 Controller Panel

Tongwei chillers use precision digital temperature controller, it RS485 communication port，which can do remote monitoring and control. Simple operation, low failure rate, high safety factor, easy installation.

Controller Panel

Spare Part for Industrial Air Hydraulic Oil Cooling Chiller Unit

Oil Chiller are used to cool the following oils:

Coolant oil:

Coolant oil chiller is used to maintain the temperature of the coolant, thereby maintaining the surface finish and accuracy of the parts to be machined.

Hydraulic oil:

The hydraulic oil chillers maintain the temperature of the hydraulic oil, thus maintaining its viscosity, allowing the machine tool to work smoothly.

Spindle oil:

The spindle oil chiller is used to maintain the temperature of the spindle oil and prevent the spindle from deforming, thereby improving the surface finish and accuracy of the parts.

Cutting oil:

Cutting oil chiller is used to maintain the temperature of cutting oil, thereby increasing tool life and providing better surface finish and component accuracy.

What are the Industrial Applications of Oil Chillers?

You can use the oil chillers in different industrial chilling applications to control the cooling temperatures you want.

Here are some of the industrial applications where you will use the oil chillers.

   ▪ CNC Machining Centers

   ▪ Inner and Outer Grinding Machine Applications

   ▪ Electric Discharge Machine Applications

   ▪ Hydraulic Oil Stations and Hydraulic Machinery Applications

   ▪ Grinding Machine Applications

   ▪ Integrated Machining Applications

   ▪ Woodworking Industry

   ▪ Broaching Machine

   ▪ Hydraulic Machinery

▪ High-speed Lathe

Shipping Way of Industrial Air Hydraulic Oil Cooling Chiller Unit

As a professional oil chiller supplier &exporter,we have our own shipment forwarder to arrange the shipment .Our chiller machine is with plywood packing,which prevent damage during transportation and meet export standards.There are three ways can delivery your chiller unit :

1. Ship by Air: As the chiller is with compressor ,water pump and fans ,the compressed refrigerant and oil inside the compressor is a dangerous item with the possibility of explosion , so it needs to release the compressed refrigerant before transportation. (It means that water chiller without refrigerant when choosing this shipping way. After the machine arrives at your destination, you need to add refrigerant by local professionals. The airline company also request us to provide many documents to prove that the chiller not a dangerous product. The freight cost by air is very high may be higher than the cost of chiller , So By air for delivery is not the mode of transport recommended to our customer.

2. Ship by Sea: The transportation time is longer than by air , but the freight cost is cheap ,and there is no need to add refrigerant after the equipment arrives at the destination.This shipping way is the most suitable mode of transportation for you to delivery your local port.

3.If you have your own shipment container in your other supplier in China, we can help you delivery the chiller machine to your supplier in any city of China .

Why should you choose Tongwei for your Industrial Air Hydraulic Oil Cooling Chiller Unit supplier?

▪ Experience you can trust

We have been designing and building water chiller for over 15 years. From air cooled chiller to water cooled chillers and everything in between, we have built chillers for nearly every industry and every application.

▪ Fast Quote

Get a quote for your project today! We typically provide a custom quote within 2 hours.

▪ 24/7 customer service

Believe that we will always be by your side. Whether you have a question or need a quote, there‘s always someone answering the phone 24 hours a day.

▪ Durable and reliable machine

Our products are manufactured from high quality materials and we offer a competitive warranty on all  industrial chillers.
