An industrial air cooled plastic process cooling chiller is a type of refrigeration machine specifically designed for the cooling needs of plastic processing applications. Plastic manufacturing processes often involve using hot molds or extrusion equipment to melt and shape plastic materials. These processes generate significant heat that needs to be removed to maintain optimal operating conditions and ensure product quality.Plastic process cooling chiller engineer to deliver reliable temperature control for plastic injection, plastic extruding, sheet extrusion or profile extrusion, bottle blowing and film blowing applications.

The plastic process cooling chiller provides chilled water or a refrigerant to cool the processing equipment ,the plastic material or the mold. The chilled water is circulated through cooling coils or jackets in the plastic processing equipment, effectively absorbing the heat generated during the manufacturing process. By maintaining the temperature within the desired range, a industrial chiller helps to prevent issues like warping, dimensional inconsistencies, or loss of mechanical properties in the plastic products.

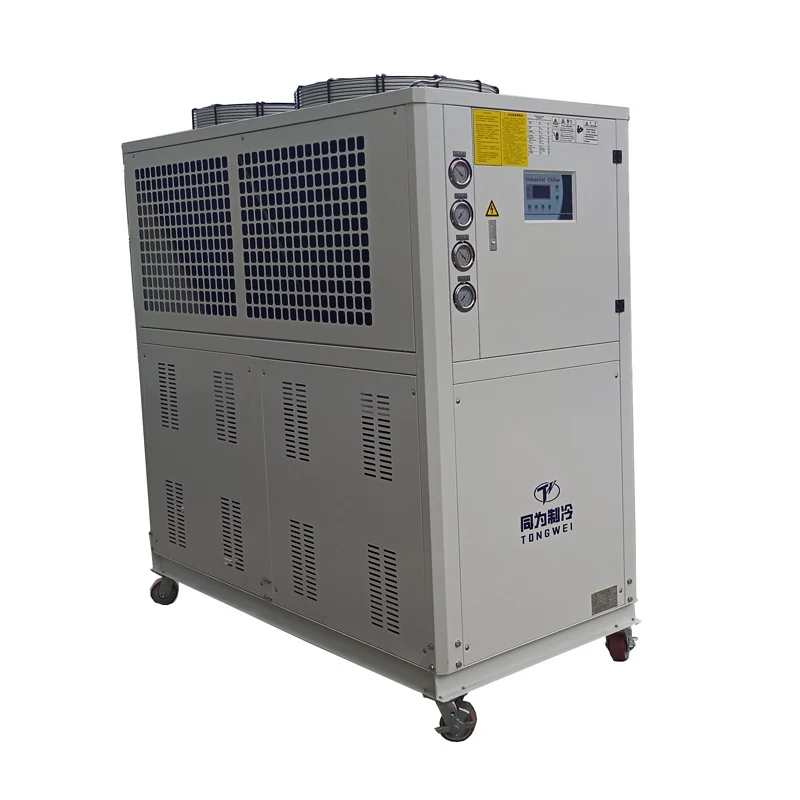

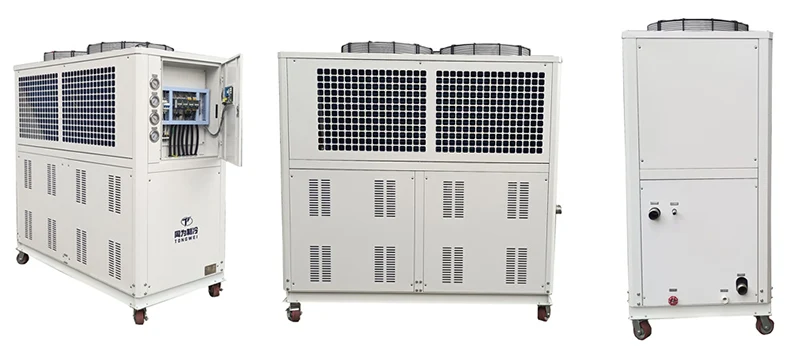

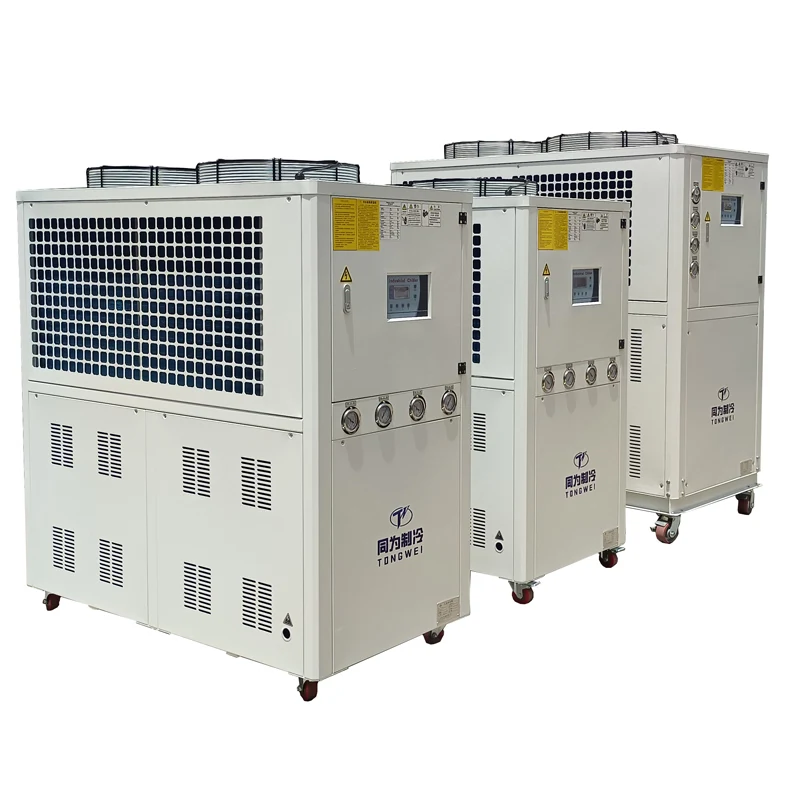

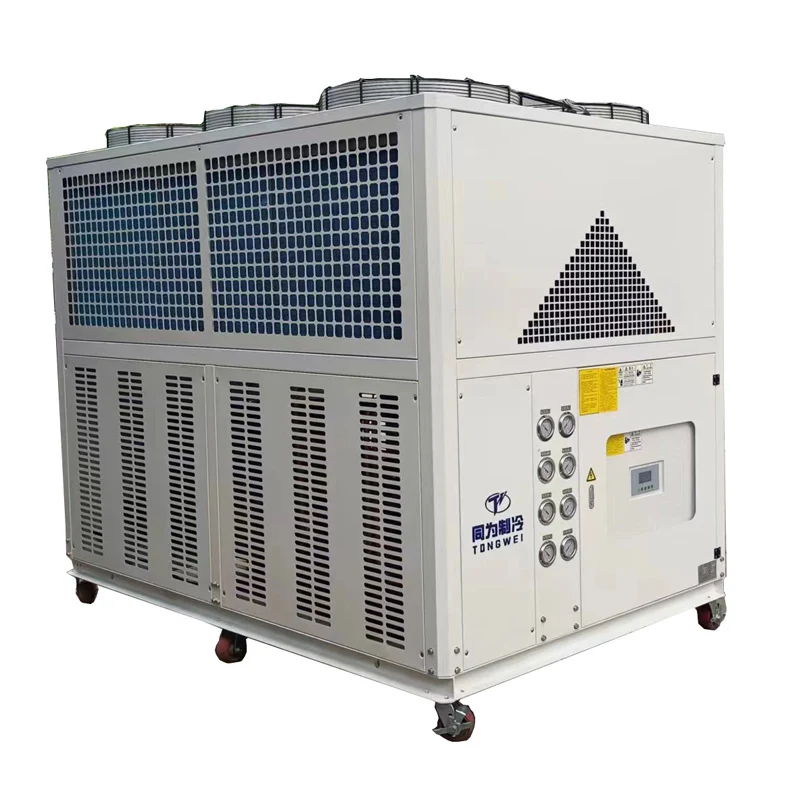

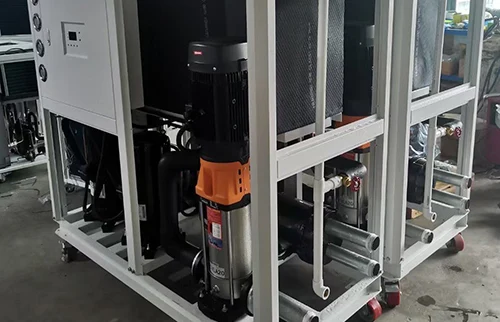

Industrial air cooled plastic process cooling chiller manufactured by Tongwei for plastic industry typically have features such as high cooling capacities, precise temperature control, easy installation and reliable performance. They include components like compressors, condensers, evaporators, pumps, buffer water tank and temperature controllers to effectively cool the process equipment and control the cooling water temperature. The capacity and configuration of the plastic chiller depend on factors such as the type of plastic processing (injection molding, blow molding, extrusion, etc.), the size of the equipment, and the cooling requirements of the process.

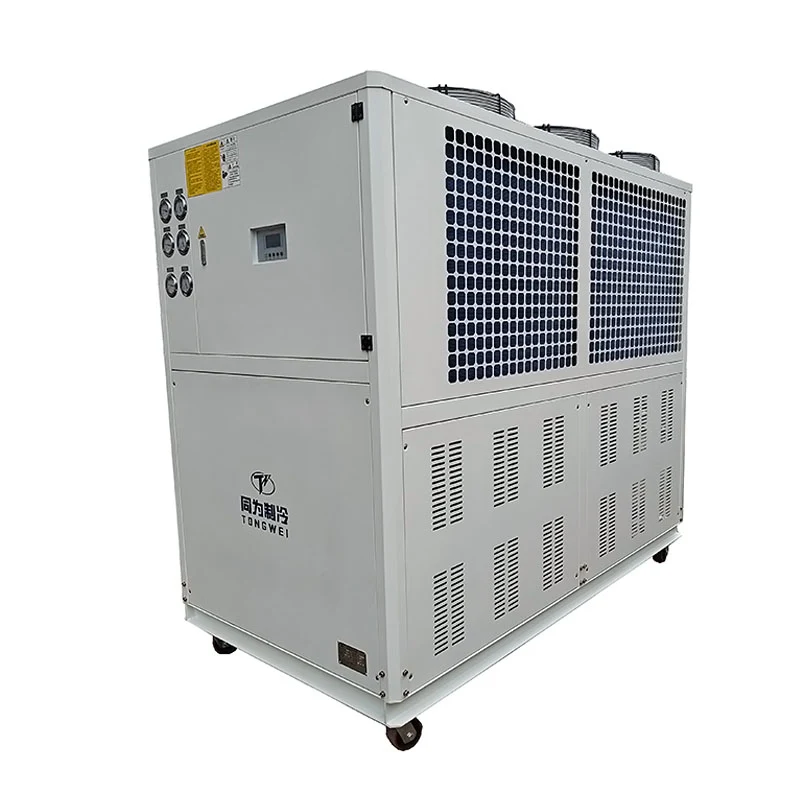

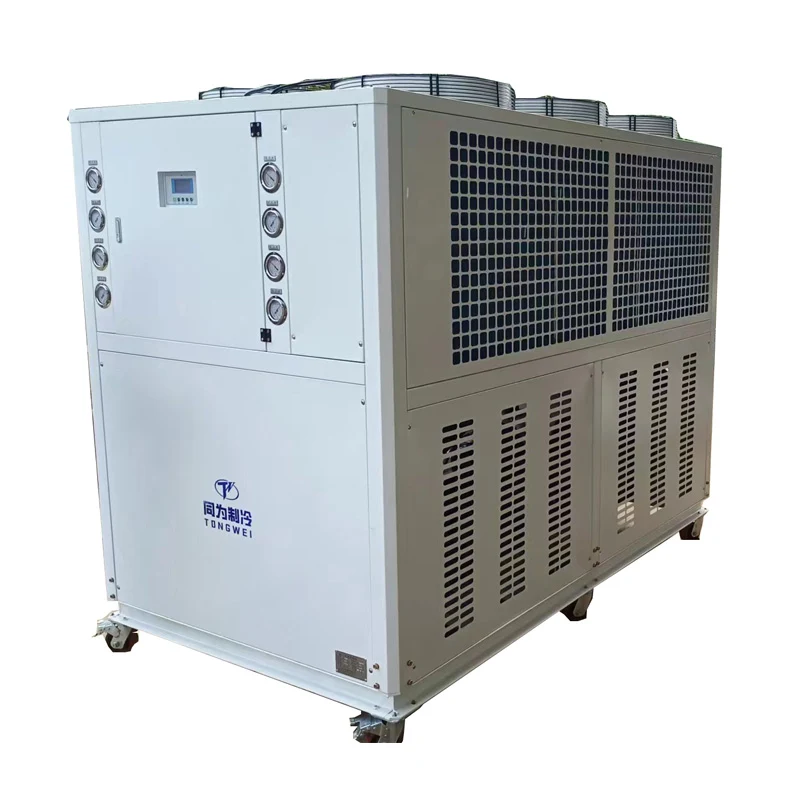

industrial air cooled plastic process cooling chiller

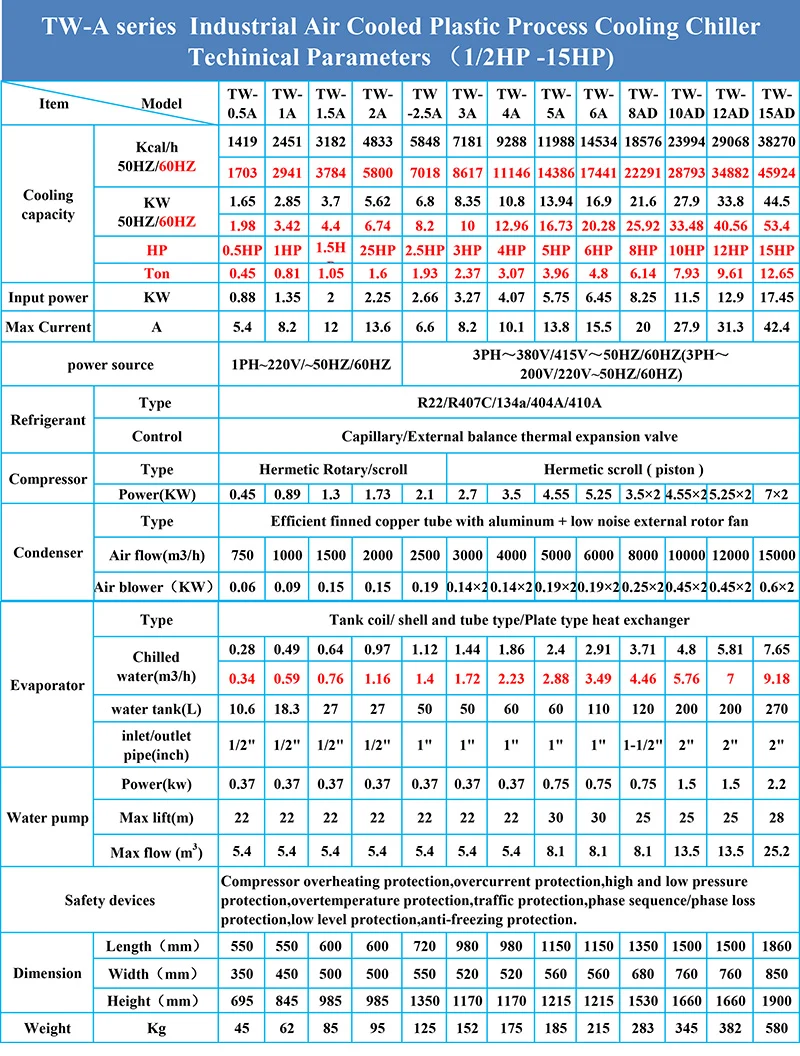

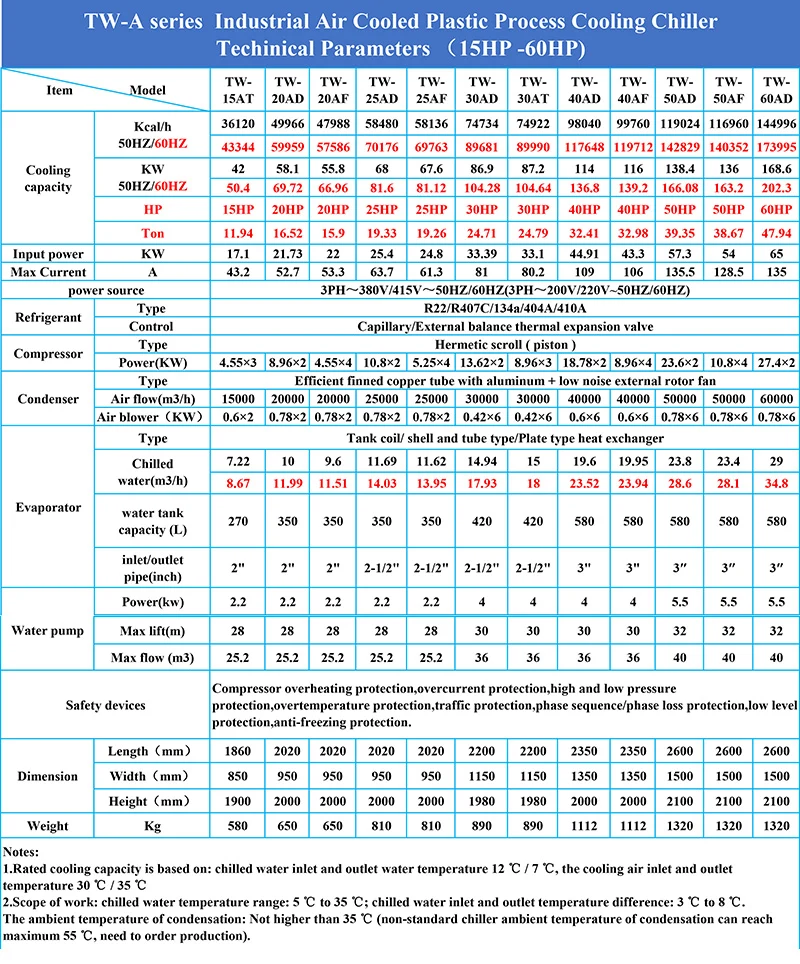

1.Industrial Air Cooled Plastic Process Cooling Chiller  Technical Specification

2. Features And Advantages of Plastic Process Cooling Chiller

»Air-cooled industrial plastic process or water-cooled plastic process chiller for optional

»1KW to 500KW Plastic Process cooling Chiller with Panasonic/Danfoss/Copeland scroll compressor or Hnabell/Bizter Screw compressor.

»Customized 208-570V 60HZ 3Phase power supply for USA ,Philippines,Mexico,Peru Customers and -30℃ to 30℃ temperature control.

»Industrial plastic process cooling chiller is with R22 ,R407c,R410a,R134a refrigerant for option .If you want chiller to install and work below 55℃ high ambient temperature with any high pressure alarm ,you can use the environmental friendly R134A refrigerant.

»SS coil in water tank,shell&tube or SS brazed-plate type evaporator for optional. Plate type evaporator provides large heat transfer surface, low coolant pressure loss and a compact design.

3.What Are The Main Components Of Industrial Air Cooled Plastic Process Cooling Chiller

3.1 Compressor

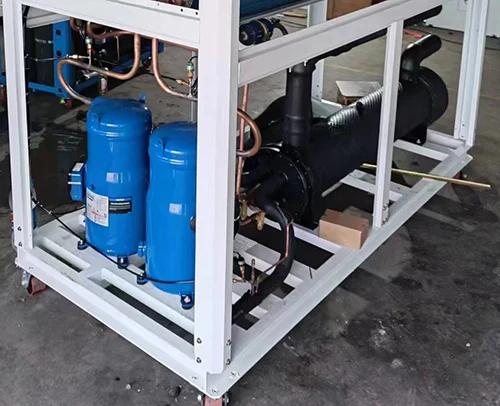

The compressor is the key mover in industrial plastic process chiller because it produces pressure variations to stir the refrigerant around.

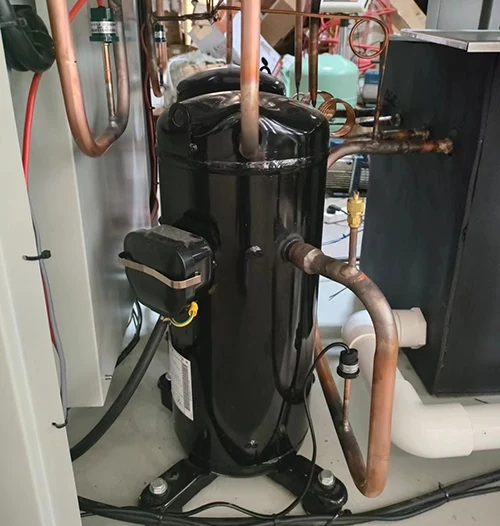

For Industrial plastic process chiller, which is with Panasonic /Danfoss brand compressor, using R410A/R407C/R134a refrigerant,this brand compress is with high refrigeration efficiency,low noise ,energy saving,environmental protection and durability,safety and stability.

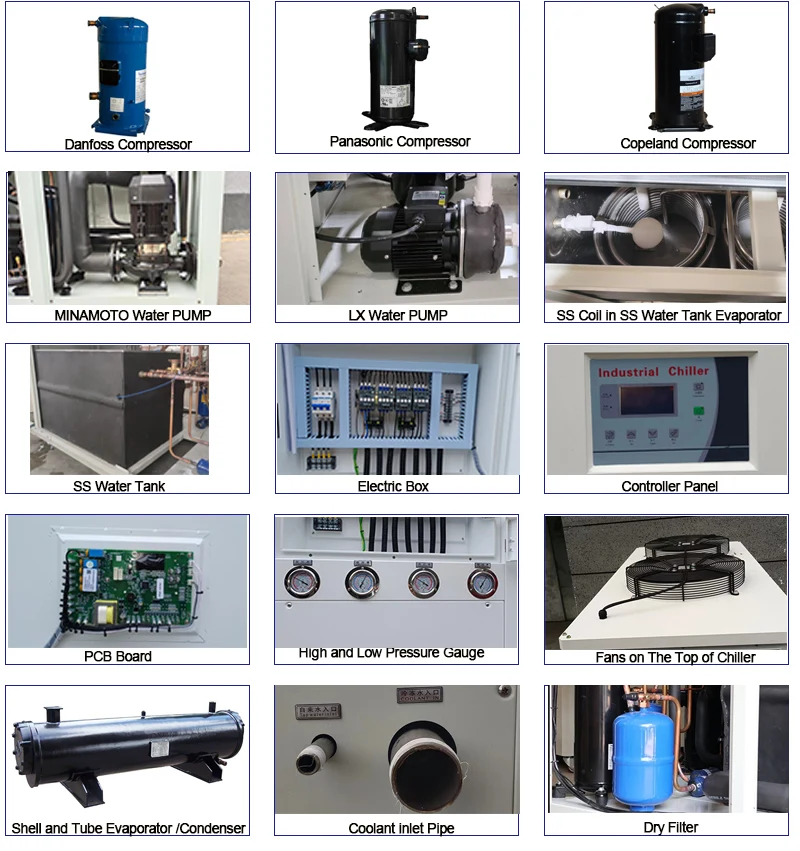

Panasonic Compressor

Danfoss Compressor

3.2 Evaporator

The evaporator is a crucial component of industrial plastic process chiller, as it is responsible for extracting heat from the liquid being cooled,it is located between the compressor and the expansion valve. There are three types of evaporators : Stainless Steel coil in water tank evaporator , shell and tube evaporator, 304 stainless steel plate type evaporator.  Stainless Steel coil in water tank evaporator is our standard evaporator for chiller ; If you have external water tank at your site , the chiller will use shell and tube or SS brazed-plate type evaporator;

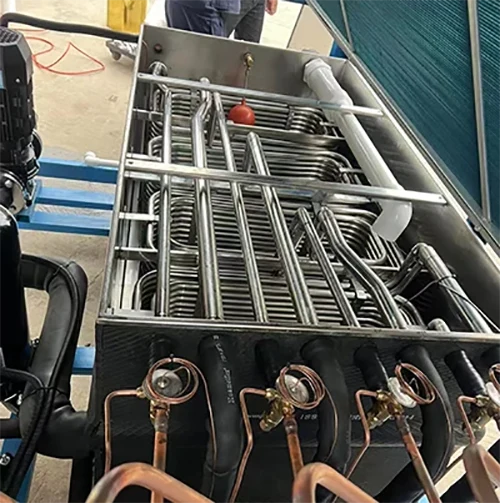

Stainless steel Coil in SS Water Tank Evaporator

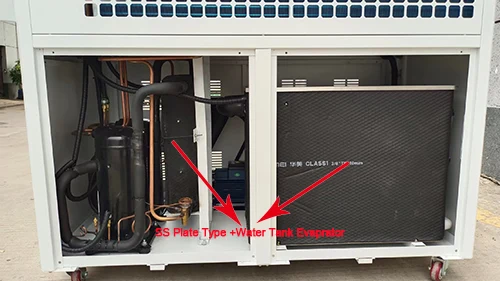

SS Plate Type+ Water Tank Evaporator

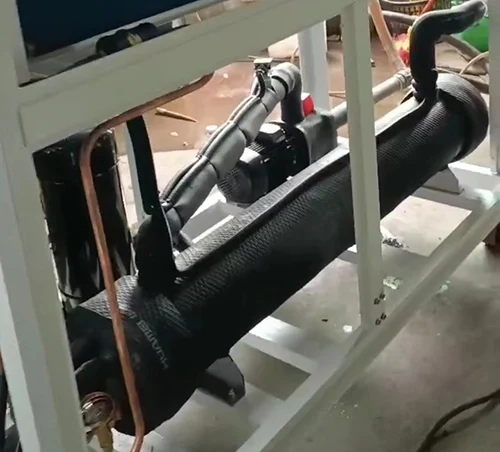

Shell and Tube Evaporator

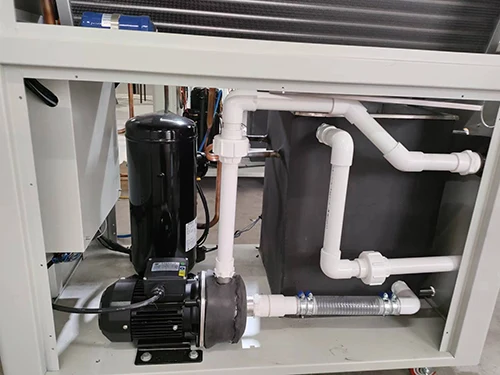

3.3 Water Pump

The water pump is designed to increase the pressure and the flow of the chilled water in a closed space.

the water pressure water pump for chiller is about 2 bar , but if you need more higher water pressure , please tell us when you inquiry .

Water Pump

High Pressure Water Pump

3.4 Condenser

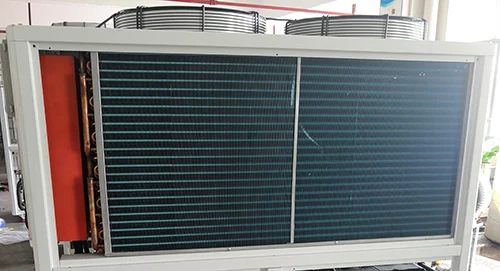

The condenser for industrial plastic process chiller is equipped with efficient cross-seam fins and female threaded copper tubes for high heat exchange efficiency and good stability.Its function is to cool down the refrigerant steam released from the compressor into a liquid or gas-liquid mixture.

Aluminum fin+fan Condenser

3.5 Controller Panel

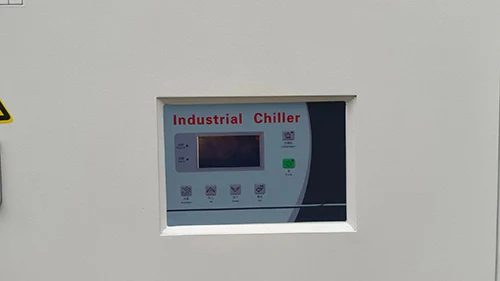

Tongwei chillers use precision digital temperature controller, it RS485 communication port，which can do remote monitoring and control. Simple operation, low failure rate, high safety factor, easy installation.

Controller Panel

4.Spare Part for Industrial Air Cooled Plastic Process Cooling Chiller

5.How I Can Choose The Right Industrial Plastic Process Chiller ?

There are five important chiller specifications you need consider when you choose a chiller for your application :the cooling capacity for chiller ,the voltage required for operation, the associated pump horsepower and flow rate (contact us for custom selection), refrigerant, and the evaporator type.

5.1 Calculate Right Cooling Capacity For Chiller

One of the most frequently ask about how we can know the cooling capacity for chillers.  We use KW ,Ton, But/h,Kcal/h to choose chiller cooling capacity :1 KW=860 kcal/h ;  1 TON=3.517 KW;

1 KW=3412 Btu/h;

There is also a formula to calculate the cooling capacity for chiller:.

Cooling Capacity(kw)= Flow Rate(m3/h)*Temp Change(T1-T2)/0.86

Heat Load= C(specific heat)* M(quality output per hour )*Temp Change(T1-T2)

Oversize the chiller by 20% Ideal Size in KW = KW x 1.2

Noted : T1:Incoming Water Temperature (℃)      T2:Required Chilled Water Temperature(℃)

For example, what size of chiller is required to cool 10m³ water from 35°c to 15 °c in 1 hour?

Temperature Differential = 35℃-15℃=20℃

Water Flow Rate = 10 m³/hour

Cooling Capacity in KW = 10 x 20 ÷ 0.86 = 232 KW

Oversize the chiller = 232 x 1.2 = 278.4KW

278.4 kw cooling capacity for chiller is required.

5.2 Power

Different countries and regions have different standards for industrial electricity, the common power supplies are 208-230V, 380-420V,440-480V,50Hz or 60Hz, 3phase.

Such in Philippines ,the power supply is 220V 60HZ 3PH , 380V 60HZ 3PH ,460V 60HZ 3PH;

in Singapore and Malaysia ,the power supply is 415V 50HZ 3PH;

in Mexico ,the power supply is 220V 60HZ 3PH;

In USA ,the power supply is 208V 60HZ 3PH;575V 60HZ 3PH;480V 60HZ 3PH and so on

5.3 Water Pump

When you decide the capacity/tonnage of the chiller, we will recommend you the suitable pump in KW,which standard water pump is about 2 bar .If you need more high water pressure , please us when you inquiry.

5.4 Refrigerant

R22, R410A, R407C, R404A, R134A are optional choices.

R22: good cooling effect, but R22 is considered a powerful greenhouse gas, so it’s forbidden in most countries.

R410A: eco-friendly, R-410A has replaced R-22 as the preferred refrigerant for use in residential and commercial air conditioners in Japan, Europe, and the United States. R-410A operates at higher pressures than other refrigerants.

R407C: a good replacement for R22, good cooling effect.

R404A: suitable for application that requires low temperature(below -10°c).

R134A: a non-flammable gas used primarily as a “high-temperature” refrigerant, suitable for air-cooled chiller working at a high ambient temperature above 50℃.

5.5 Evaporator Choose

Chillers generally have two types of evaporators: one is coil in water tank evaporator ,the other one is shell and tube evaporator.

Coil and tank evaporator, which has a built-in water storage tank for more convenient use,so there’s no need for extra buffer tanks. This is also our standard evaporator for chiller , if you don’t have buffer tank ,we just use this evaporator for your chiller.

Shell and tube type evaporator, which requires an additional water buffer tank to connect .

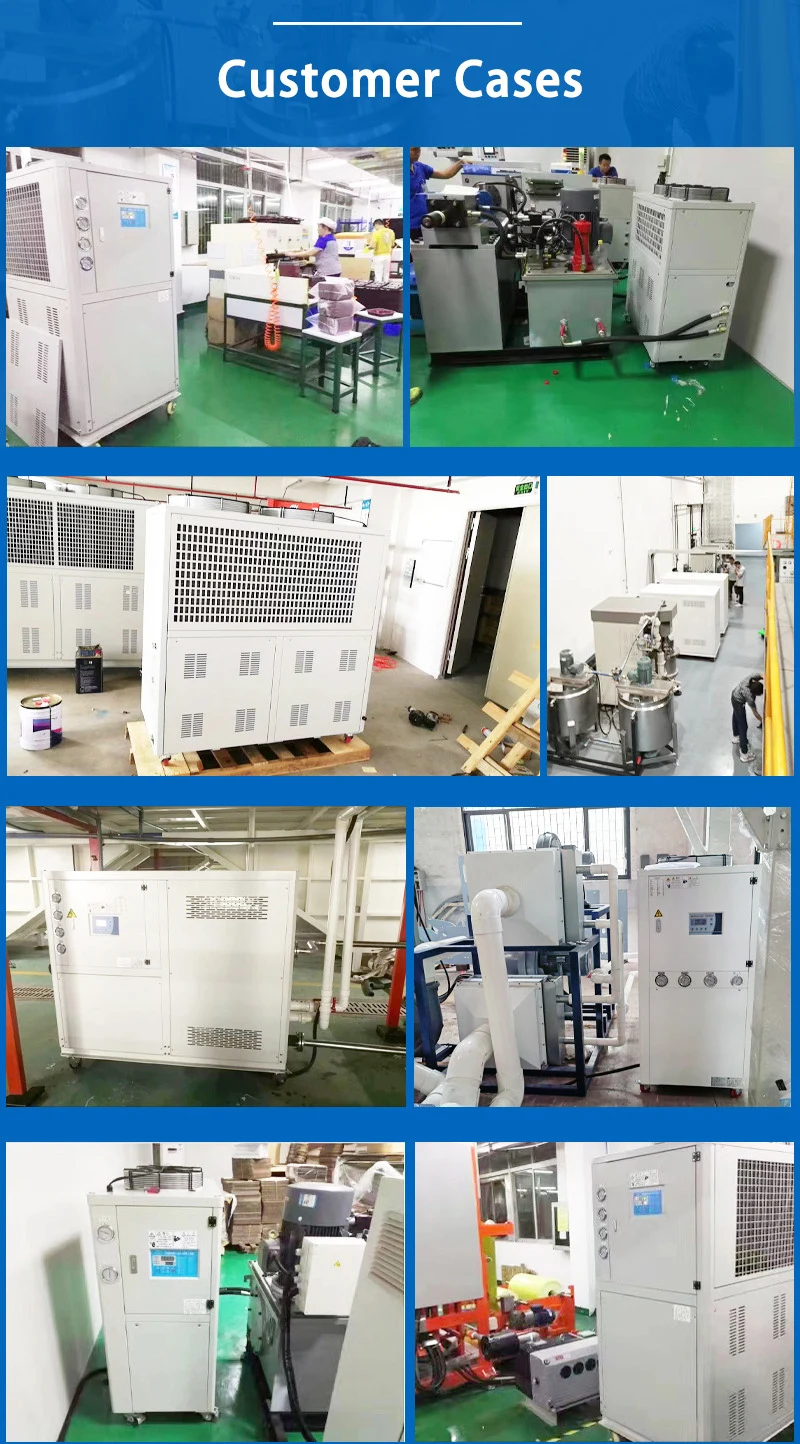

6. Customer Cases

7.Shipping Way of Industrial Plastic Process Chiller

As a professional industrial plastic process chiller supplier &exporter,we have our own shipment forwarder to arrange the shipment .Our chiller machine is with plywood packing,which prevent damage during transportation and meet export standards.There are three ways can delivery your chiller unit :

1. Ship by Air: As the chiller is with compressor ,water pump and fans ,the compressed refrigerant and oil inside the compressor is a dangerous item with the possibility of explosion , so it needs to release the compressed refrigerant before transportation. (It means that water chiller without refrigerant when choosing this shipping way. After the machine arrives at your destination, you need to add refrigerant by local professionals. The airline company also request us to provide many documents to prove that the chiller not a dangerous product. The freight cost by air is very high may be higher than the cost of chiller , So By air for delivery is not the mode of transport recommended to our customer.

2. Ship by Sea: The transportation time is longer than by air , but the freight cost is cheap ,and there is no need to add refrigerant after the equipment arrives at the destination.This shipping way is the most suitable mode of transportation for you to delivery your local port.

3.If you have your own shipment container in your other supplier in China, we can help you delivery the chiller machine to your supplier in any city of China .

Why should you choose Tongwei for your Industrial Plastic Process Chiller Supplier?

whether you need air cooled or water cooled plastic process chiller, we can custom design them according to your requirements. no matter how many /KW/tons of chiller you need , we can give you our the best solution.

Custom chiller types

Tongwei provide industrial plastic process chiller of various compressor brand, including but not limited to air-cooled chiller and water-cooled chiller regardless of the brand of refrigeration compressor such as Panasonic or Danfoss brand , we can use according to your requirements.

Custom water temperature range

Tongwei can create a custom solution for temperatures from -40℃ to 35℃ ±1~2°C stability. Custom temperature ranges for specific industries.

Custom chiller voltage

Customize chiller voltage and phase according to your needs. Optional 220V/60HZ, 380V/50HZ,  400-415V/50HZ, 460V/60HZ, 440V~480V/60HZ, etc for different countries.
