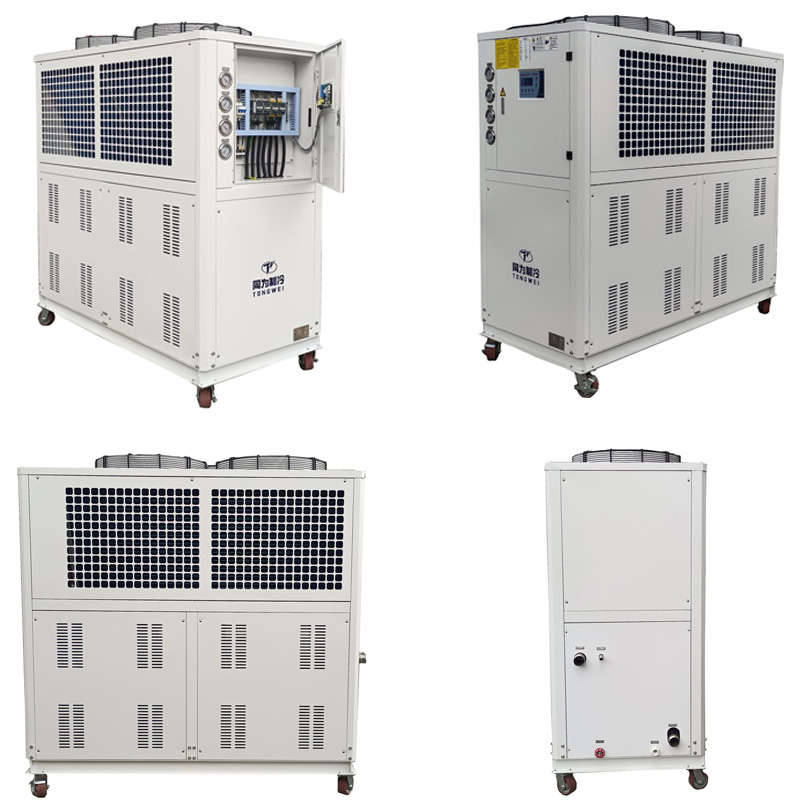

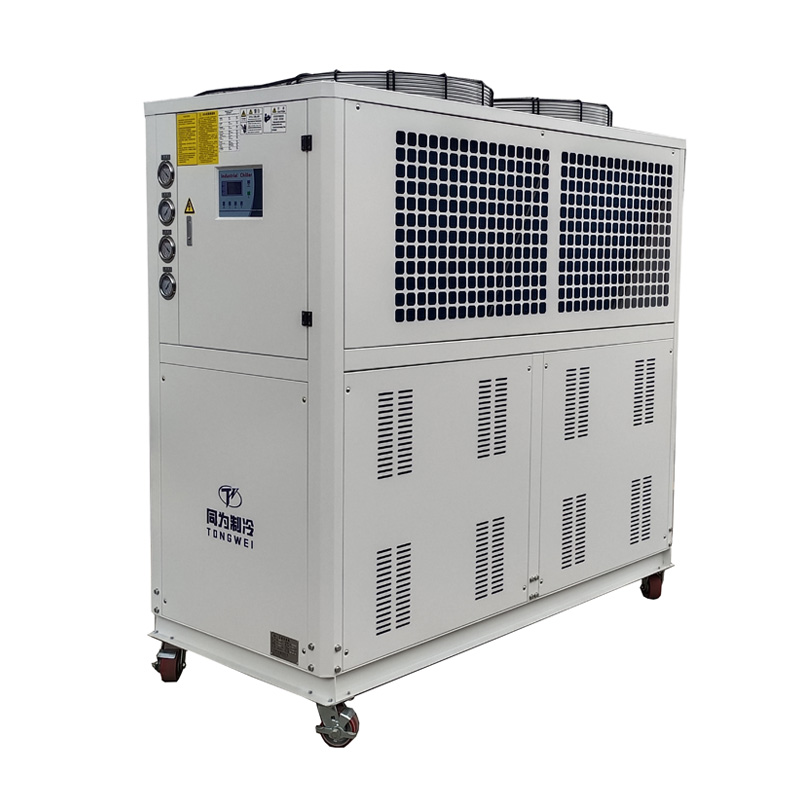

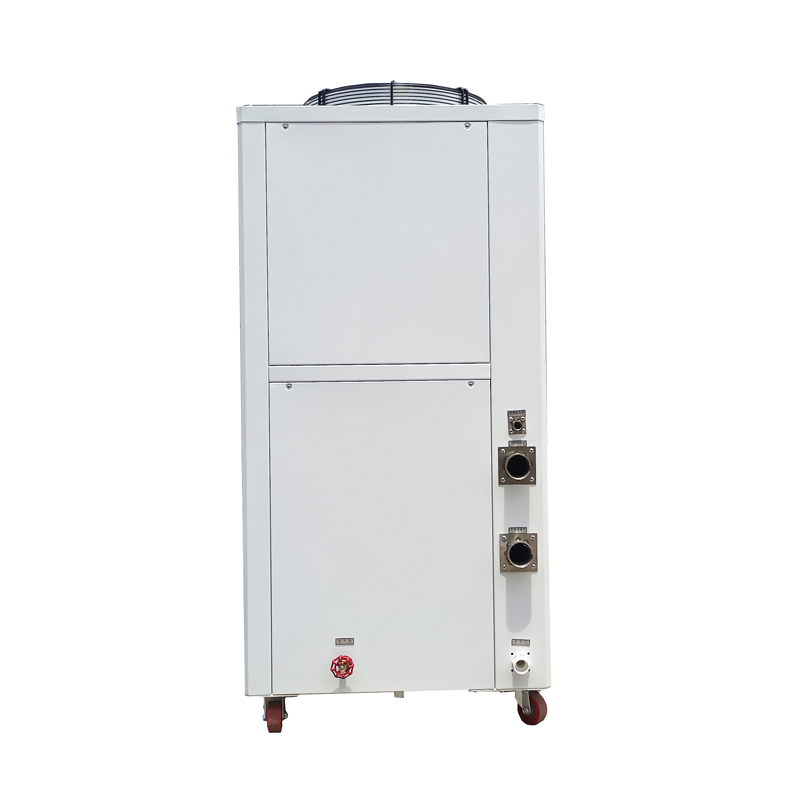

Industrial Air Cooled MRI Medical Chiller

Industrial Air Cooled MRI Medical Chiller

Industrial Air Cooled MRI Medical Chiller is a specialized refrigeration machine that is specifically designed to provide reliable and efficient cooling for medical equipment such as MRI machines.The industrial air cooled MRI medical chiller works by using a refrigerant to absorb heat from a source, such as an MRI machine, and then releasing the heat into the surrounding air using a fan. The refrigerant is then cooled down inside the chiller unit before being circulated back through the system. This continuous cycle keeps the MRI machine at a consistent temperature and ensures that it is operating efficiently.Without the chiller, the MRI machine would heat up and could be damaged. MRI chillers are often installed in a room adjacent to the MRI machine room. They are typically large, industrial machines that require a lot of space.

Tongwei provide our industrial air cooled MRI medical chiller built with Panasonic/Danfoss/Copeland compressors (Emerson), Schneider controllers and other high-quality components and maintain high standards of quality control to ensure that the machinery function smoothly and stand the test of time. As a result of this, over 90% of our customers feedback well and have become repeat buyers over the years.

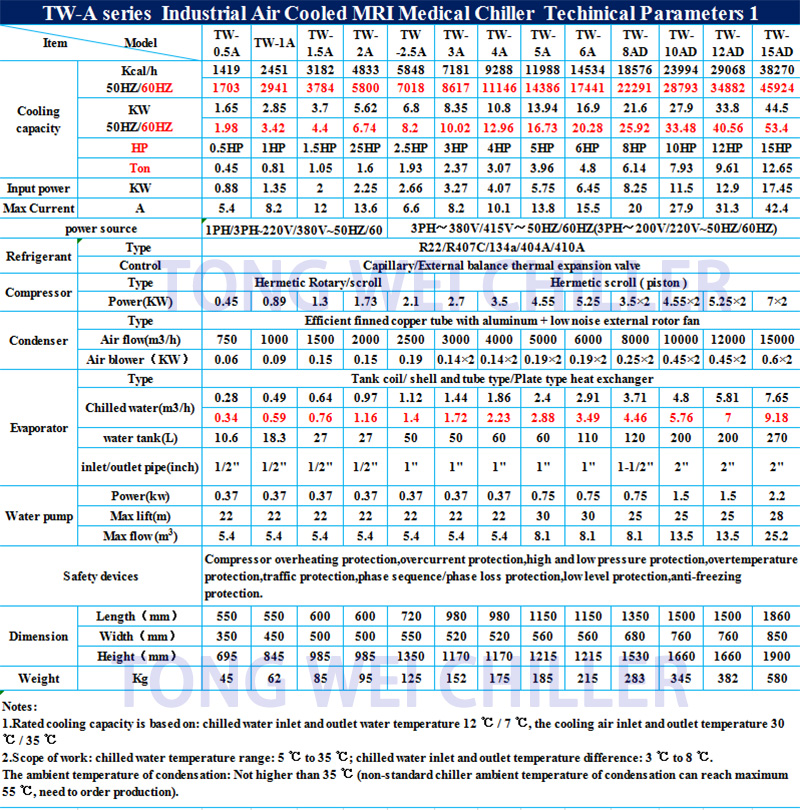

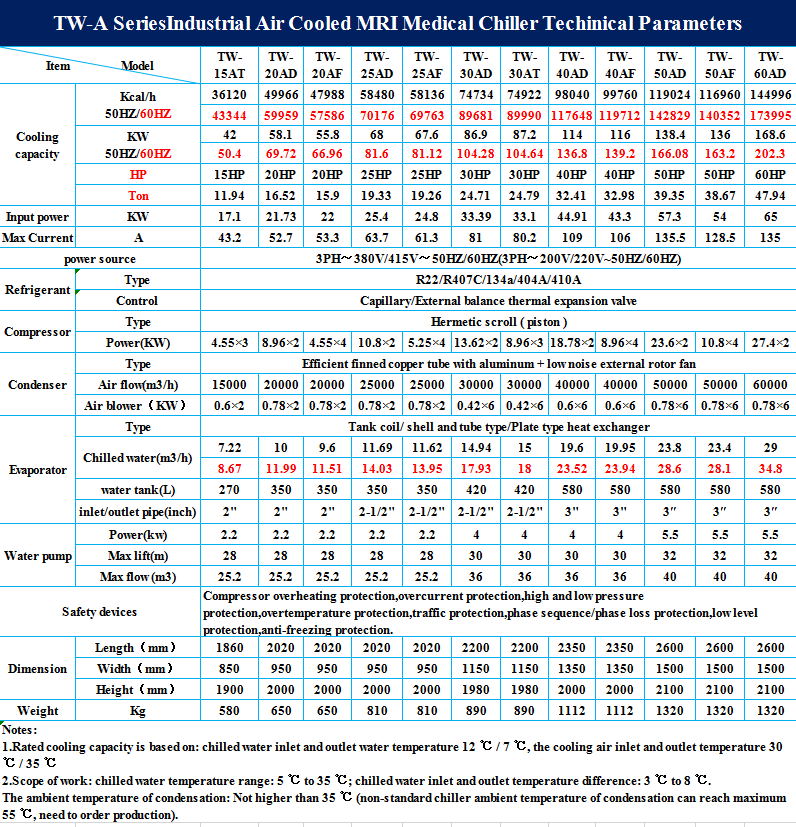

 Industrial Air Cooled MRI MedicalChiller Technical Specification

Features And Advantages of Industrial Air Cooled MRI Medical Chiller

»Industrial air cooled MRI medical chiller cooling capacity 1/2 ton to 60 ton

»Tognwei Brand MRI chiller is with complete electrical protection system, such as phase sequence/phase miss protection, current overload protection, high and low voltage protection to ensure the normal operation.

»208-570V 60HZ 3Phase power supply customize for USA ,Philippines,Mexico,Peru Customers

»Temperature control 7℃(45°F）to 25℃（77°F）

»It no need install with water cooling tower and water cooling pump ,which easy installation.

»High-quality Panasonic/Danfoss/Copeland scroll compressor compressor

»Environment-friendly efficient refrigerant R407c/R410a/R134a

»SS coil in water tank,shell&tube or SS PHE evaporator for optional

Spare Part for Industrial Air Cooled MRI Medical Chiller

How I Can Choose The Right  Industrial Air Cooled Chiller for Your MRI Machine?

There are five important chiller specifications you need consider when you choose a industrial air cooled chiller for your MRI machine :the cooling capacity for chiller ,the voltage required for operation, the associated pump horsepower and flow rate (contact us for custom selection), refrigerant, and the evaporator type.

 Calculate Right Cooling Capacity For Chiller

One of the most frequently ask about how we can know the cooling capacity for chillers.  We use KW ,Ton, But/h,Kcal/h to choose chiller cooling capacity :1 KW=860 kcal/h ;  1 TON=3.517 KW; 1 KW=3412 Btu/h;

There is also a formula to calculate the cooling capacity for chiller:.

Cooling Capacity(kw)= Flow Rate(m3/h)*Temp Change(T1-T2)/0.86

Heat Load= C(specific heat)* M(quality output per hour )*Temp Change(T1-T2)

Oversize the chiller by 20% Ideal Size in KW = KW x 1.2

Noted : T1:Incoming Water Temperature (℃)      T2:Required Chilled Water Temperature(℃)

For example, what size of chiller is required to cool 10m³ water from 35°c to 15 °c in 1 hour?

Temperature Differential = 35℃-15℃=20℃

Water Flow Rate = 10 m³/hour

Cooling Capacity in KW = 10 x 20 ÷ 0.86 = 232 KW

Oversize the chiller = 232 x 1.2 = 278.4KW

278.4 kw cooling capacity for chiller is required.

 Power

Different countries and regions have different standards for industrial electricity, the common power supplies are 208-230V, 380-420V,440-480V,50Hz or 60Hz, 3phase.

Such in Philippines ,the power supply is 220V 60HZ 3PH , 380V 60HZ 3PH ,460V 60HZ 3PH;

in Singapore and Malaysia ,the power supply is 415V 50HZ 3PH;

in Mexico ,the power supply is 220V 60HZ 3PH;

In USA ,the power supply is 208V 60HZ 3PH;575V 60HZ 3PH;480V 60HZ 3PH and so on

Water Pump

When you decide the capacity/tonnage of the chiller, we will recommend you the suitable pump in KW,which standard water pump is about 2 bar .If you need more high water pressure , please us when you inquiry.

Refrigerant

R22, R410A, R407C, R404A, R134A are optional choices.

R22: good cooling effect, but R22 is considered a powerful greenhouse gas, so it’s forbidden in most countries.

R410A: eco-friendly, R-410A has replaced R-22 as the preferred refrigerant for use in residential and commercial air conditioners in Japan, Europe, and the United States. R-410A operates at higher pressures than other refrigerants.

R407C: a good replacement for R22, good cooling effect.

R404A: suitable for application that requires low temperature(below -10°c).

R134A: a non-flammable gas used primarily as a “high-temperature” refrigerant, suitable for air-cooled chiller working at a high ambient temperature above 50℃.

Evaporator Choose

Chillers generally have two types of evaporators: one is coil in water tank evaporator ,the other one is shell and tube evaporator.

Coil and tank evaporator, which has a built-in water storage tank for more convenient use,so there’s no need for extra buffer tanks. This is also our standard evaporator for chiller , if you don’t have buffer tank ,we just use this evaporator for your chiller.

Shell and tube type evaporator, which requires an additional water buffer tank to connect .

Shipping Way of Industrial Air Cooled MRI Medical Chiller

As a professional 8 Ton Industrial Air Cooled Chiller supplier &exporter, we have our own shipment forwarder to arrange the shipment .Our chiller machine is with plywood packing,which prevent damage during transportation and meet export standards.There are three ways can delivery your chiller unit :

1. Ship by Air: As the chiller is with compressor ,water pump and fans ,the compressed refrigerant and oil inside the compressor is a dangerous item with the possibility of explosion , so it needs to release the compressed refrigerant before transportation. (It means that water chiller without refrigerant when choosing this shipping way. After the machine arrives at your destination, you need to add refrigerant by local professionals. The airline company also request us to provide many documents to prove that the chiller not a dangerous product. The freight cost by air is very high may be higher than the cost of chiller , So By air for delivery is not the mode of transport recommended to our customer.

2. Ship by Sea: The transportation time is longer than by air , but the freight cost is cheap ,and there is no need to add refrigerant after the equipment arrives at the destination.This shipping way is the most suitable mode of transportation for you to delivery your local port.

3.If you have your own shipment container in your other supplier in China, we can help you delivery the chiller machine to your supplier in any city of China .

Why should you choose Tongwei for your industrial air cooled MRI medical chiller system supplier?

▪ Experience you can trust

We have been designing and building industrial chiller for over 15 years. From air cooled chiller to water cooled chillers and everything in between, we have built chillers for nearly every industry and every application.

▪ Fast Quote

Get a quote for your project today! We typically provide a custom quote within 2 hours.

▪ 24/7 customer service

Believe that we will always be by your side. Whether you have a question or need a quote, there‘s always someone answering the phone 24 hours a day.

▪ Durable, reliable chiller machine & Competitive Price

Our products are manufactured from high quality materials and we offer a competitive warranty on all industrial chillers.
