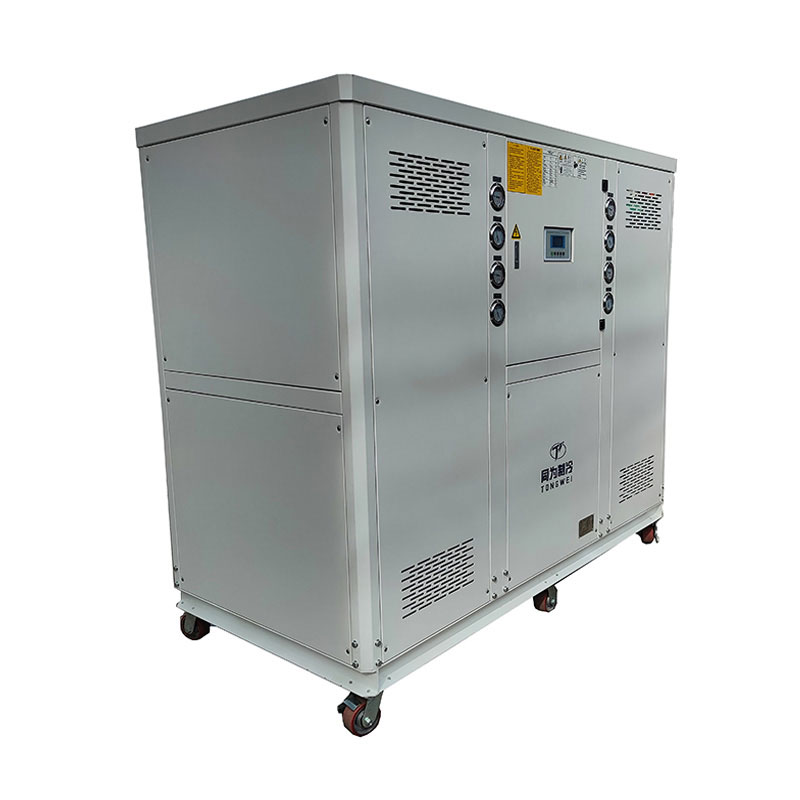

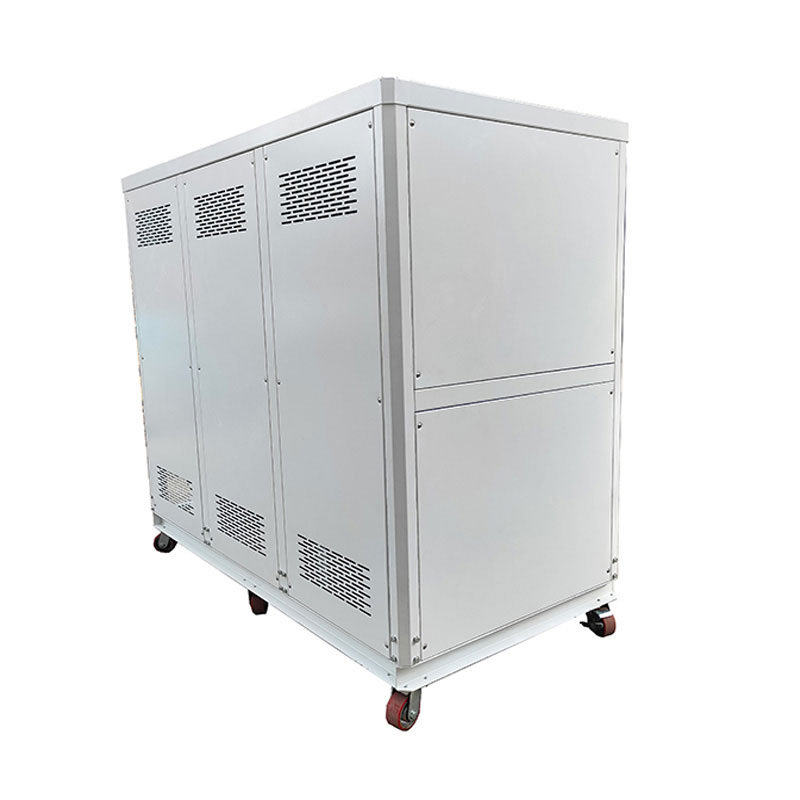

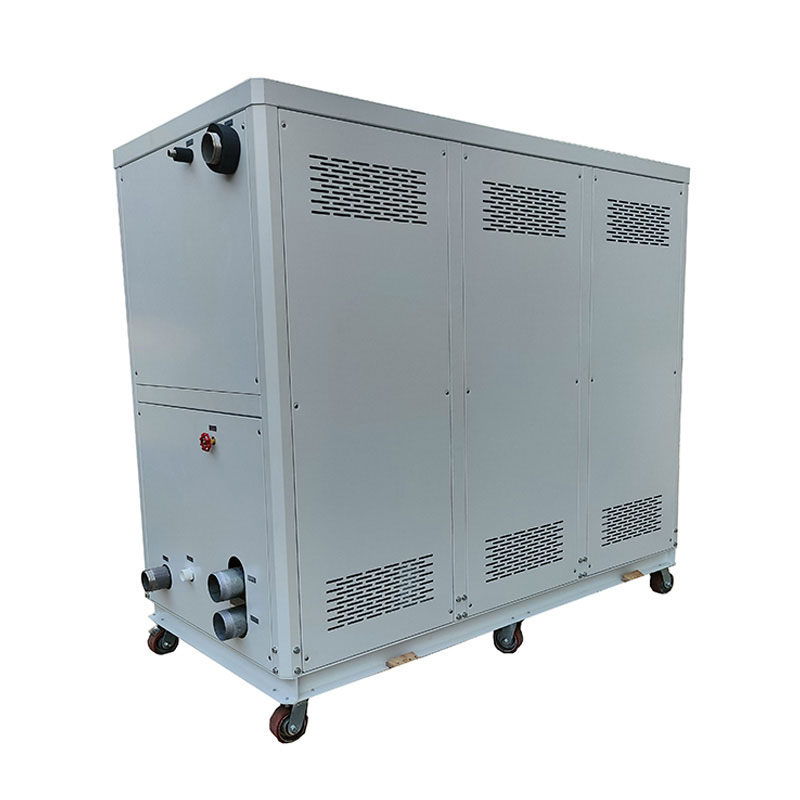

High quality 50HP 40 Ton Water Cooled Glycol Chiller -10C is offered by China manufacturers Tongwei. A glycol chiller ,also called a low temperature chiller or glycol refrigeration system, which is a cooling machine that is used to get minus cooling temperature regulation in different industrial applications by using glycol and water mixture as a coolant to release heat out of the system.Glycol is recommended for all chiller units when operating temperatures are below 41°F (5°C). our vast experience with low-temp chillers delivers reliable engineered solutions for every process need.

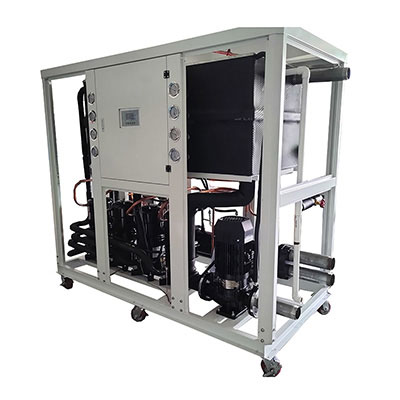

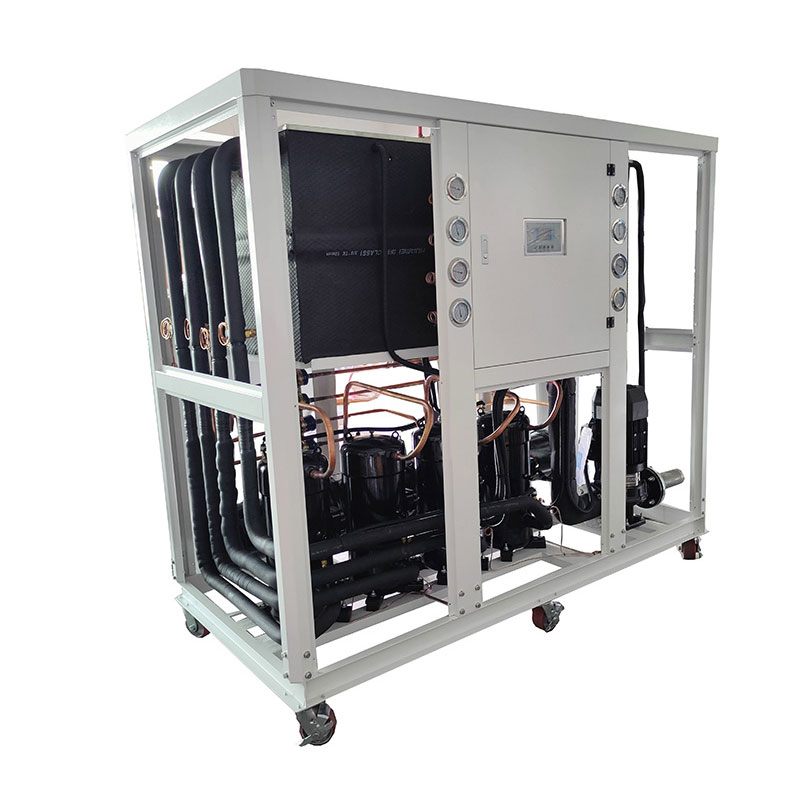

50HP 40 Ton Water Cooled Glycol Chiller -10C model TW-50WL includes four multi-stage hermetic scroll compressor using R404a refrigerant. The refrigerant is a non-depleting ozone gas and is considered environmentally friendly. It need install with water cooling tower and water cooling pump.
Tongwei is china professional manufacturer and supplier of low temperature chiller with 15 years of refrigeration experience, we guarantee the production of the best quality industrial chiller system with amazing specifications and super warranty offers.
We have the ingenuity and engineered solutions to solve even the most challenging low-temp chiller needs.
Model |
TW-50WL |
||||
nominal cooling capacity |
KW |
-10℃ |
93.8 |
||
-20℃ |
63 |
||||
-30℃ |
41.3 |
||||
Chilled Water temperature range |
℃ |
-30~5 |
|||
Max power consumption |
kw |
48.7 |
|||
Full load |
Amp |
119.7 |
|||
power source |
|
3PH-380V-50HZ (Standard) 3PH-220-480V-60HZ (Customized) |
|||
refrigerant |
type |
|
R404A |
||
control |
|
External balance of thermal expansion valve |
|||
compressor |
type |
|
hermetic scroll type |
||
power |
kw |
32.2 |
|||
QTY. |
Unit |
4 |
|||
condenser |
type |
|
Shell and tube condenser |
||
cooling water(m3/h) |
-10℃ |
17.2 |
|||
-20℃ |
10.6 |
||||
-30℃ |
3.63 |
||||
Diameter |
inch |
4" |
|||
evaporator |
type |
|
Coil in Water tank evaporator (Standard) shell and tube Type Evaporator (Customized) |
||
Chilled water (m3/h) |
-10℃ |
12.8 |
|||
-20℃ |
7.7 |
||||
-30℃ |
4.83 |
||||
inlet and outlet connection(BSP) |
inch |
4’’ |
|||
Water pump |
power |
kw |
5.5 |
||
Water Flow |
M3/h |
40 |
|||
Max.Pressure |
Bar |
2 |
|||
safety devices |
Compressor overheating protection,over-current protection,high and low pressure protection,over-temperature protection,traffic protection,phase sequence/phase loss protection,low level protection,frost protection |
||||
dimension |
mm |
2025*1050*1880 |
|||
weight |
kg |
1050 |
▪ Microprocessor Controller with RS-485 communication protocol supported version available on request.
▪ The chiller is with a low-level tank indicator alarm which turns on when the fluid levels in the tank decrease below the normal value
▪ High quality Brazed plate/shell and tube as heat exchanger
▪ Inlet and outlet water bypass valves are equipped to adjust the water pressure as needed
▪ The water tank sight glass allows the water level and water quality to be checked at a glance.
▪ Panasonic/Danfoss scroll compressor with environmental friendly R404a refrigerant
▪ It need connect with water cooling tower and water cooling pump
▪Chiller equipped with the following safety protections:Overload Protection,Inverse Phase Alarm,High/Low Pressure Alarm,Water Flow,Water Level Indicator,Anti-Freeze Protection
The compressor is the key mover in glycol Chiller because it produces pressure variations to stir the refrigerant around.For 50hp glycol chiller unit , which is with four Panasonic /danfoss brand compressor, using R404a refrigerant,this brand compress is with high refrigeration efficiency,low noise ,energy saving,environmental protection and durability,safety and stability.
Panasonic Compressor
The evaporator is a crucial component of glycol chiller system, as it is responsible for extracting heat from the liquid being cooled,it is located between the compressor and the expansion valve. There are three types of evaporators : coil in water tank evaporator , shell and tube evaporator, 304SS stainless steel plate type evaporator.
Coil in SS Water Tank Evaporator
SS Plate Type+ Water Tank Evaporator
Shell and Tube Evaporator
The water pump is designed to increase the pressure and the flow of the chilled water in a closed space.the water pressure water pump for chiller is about 2 bar , but if you need more higher water pressure , pls tell us when you inquiry .For example ,when you use chillers for cooling bottle blowing machine ,the water pressure for water pump need about 4 bar .
Water Pump
High Pressure Water Pump
The condenser for packaged water cooled glycol chiller is shell and tube ,with the internal copper tubes employing an outer thread embossing process.This design effectively enhances the heat exchange efficiency between the refrigerant and water during the process. Compared to traditional smooth copper tubes, the outer thread embossing process increases the surface area of the copper tubes, thereby expanding the contact area for heat exchange and improving the thermal conductivity of the condenser. This optimization design allows the condenser of the water-cooled chiller to transfer heat from the refrigerant to the water more rapidly and consistently, enabling the water to carry away the heat.
Shell and tube Condenser
Tongwei chillers use precision digital temperature controller, it RS485 communication port,which can do remote monitoring and control. Simple operation, low failure rate, high safety factor, easy installation.
Controller Panel
There are two types of low temperature chiller: one is air-cooled low temperature chiller ,the other is water-cooled low temperature chiller ;
Air-cooled low temperature chillers use ambient air to dissipate heat from the brewing processes. They are energy-efficient, space-saving, and less maintenance that helps save money.
Water-cooled low temperature chillers use water from an external water cooling tower to dissipate heat from the brewing processes. These systems are longer lifespan, Relatively quiet, and more consistent cooling performance than the air-cooled brewery chiller.
Air-cooled Low Temperature Chiller
Water-cooled Low Temperature Chiller
Air-cooled Low Temperature Chiller Installation
Air-cooled Low Temperature Chiller Installation
Should you choose an air-cooled or water-cooled low temperature chiller? Contact Us for help determining the best solution for you.
Low Temperature Scroll Chiller Low Temperature Screw Chiller
▪ 1hp-60HP Above 60HP
▪ Danfoss/Panasonic Scroll Compressor Hanbell/Bitzer Screw compressor
▪Built with water tank and water pump Without water tank and water pump
Air Cooled Glycol Scroll Chiller
Air Cooled Glycol Screw Chiller
The most commonly used coolant in a chiller is water or a mixture of water-glycol. Glycol-based coolants consist of either ethylene glycol or propylene glycol. The main advantage of glycol coolants is their anti-freeze properties. Pure water freezes at 0 degrees C, while 30% ethylene glycol freezes at -14 degrees C. The low freezing point of glycol mixtures makes them ideal for cooling items that are below the freezing point of water. Although glycol has a lower heat capacity than water (each kilogram of glycol is easier to heat than one kilogram of water), the high temperature difference allows the glycol mixture to dissipate heat more quickly than pure water. The glycol mixtures are more suitable for applications where the chiller must quickly dissipate a large number of heat. In addition to providing excellent heat transfer parameters, glycol tends to discourage algae growth in heat transfer equipment.
Property |
Ethylene Glycol |
Propylene Glycol |
Freeze point depression |
More effective |
Less effective |
Heat transfer efficiency/capacity |
Better |
Less |
Viscosity |
Lower |
Higher |
Flammability |
Low |
Low |
Chemical |
Oxygen |
Demand |
Biodegrading |
Degradesin 10-30 days |
Needs more than 20-30 days to degrade
|
Carcinogenic |
No |
No |
Toxic |
High level of acute when taken orally, targets the kidneys
|
Lower level of acute
|
Skin Irritant |
Low |
Low |
Ethylene Gycol And Propylene Glycol
A glycol chiller is composed of a refrigeration component and tubing containing a water-glycol mixture as coolant. Chilled fluid from the refrigeration unit is channeled through the piping associated with a thermal exchanger surrounding a heated process. After absorbing heat from the associated process, the hot coolant is returned to the refrigeration unit for cooling after which the process is repeated.
A glycol chiller consists of a compressor, an evaporator, a condenser, a throttling element, and an electric control system. Let’s see what’s the working principle of a glycol chiller:
Glycol Chiller Working Principle
It is important to use the proper ratio of glycol to water mixture in the cooling system depends on the coldest temperature you need during operation, as insufficient glycol can cause the system to freeze, possibly bursting pipes and even destroying the chiller evaporator even may damage the glycol chiller, while too much glycol to a chiller system will result in an inefficient system.
But what’s the best ratio for glycol and water mixtures? Please see below glycol ratio of glycol and water mixtures for the glycol chiller in your cooling process:
Glycol |
Water |
Water |
16% |
84% |
0℃ |
24% |
76% |
-5℃ |
32% |
68% |
-10℃ |
40% |
60% |
-15℃ |
45% |
55% |
-20℃ |
50% |
50% |
-25℃ |
55% |
45% |
-30℃ |
Glycol chiller is a specific kind of cooling system,which is used to cool a variety of liquids and other industrial applications.
By using a glycol chiller can achieve the low temperature for your industrial usage you need .
Glycol chillers are most used for below these Industries:
In breweries, the glycol chiller is used for cooling the wort,Controlling Fermentation,Crash Cooling Vessels,Prepackaging and Product Storage.
Glycol Chiller for Breweries
Glycol chillers are widely used in the fermentation process, cold stabilization and room cooling purposes.
Glycol Chiller for Wineries
Fermentation control needs critical water temperature control. Glycol chiller can provide cold chilling of the juice and milk, also the cold storage of the final product.
Glycol Chiller for Cider Mills
During the fermentation process, the glycol chiller will provide a steady coolant for circulation between distillation tanks & stills for heat removal purposes.
Glycol Chiller for Distilleries
Glycol chillers can provide low-temperature coolant to guarantee the safety and consistent quality of frozen foods, food processing companies need a low-temperature cooling day in and day out.
Glycol Chiller for Food Industry
A properly designed dairy glycol chiller can cool the milk very rapidly to help keep milk temperatures (and bacteria growth) under control as it is transferred from the milking parlor to its insulated tank.
Glycol Chiller for Dairy Product
Do you need a glycol chiller for an application not mentioned here? Contact us and we’ll customize an affordable solution for your exact demands.
There are four important chiller specifications you need consider when you choose a chiller for your application :the cooling capacity for chiller ,the voltage required for operation, the associated pump horsepower and flow rate (contact us for custom selection), refrigerant, and the evaporator type.
There are two types of glycol chiller: one is air-cooled type, the other one is water-cooled type.
Air Cooled glycol scroll chillers use aluminum fin+fan as condensers that is similar to the “radiators” in a car.They use a fan to force air through the refrigerant coil. Unless they are specifically designed for high ambient conditions, air-cooled condensers need to operate effectively at an ambient temperature of 45℃ or less.
Water Cooled glycol scroll chiller use shell and tube as condensers.The heat enters the condenser water from the refrigerant vapor. The warm condenser water is then pumped to the water cooling tower, where the heat from the process is eventually vented to the atmosphere.
One of the most frequently ask about how we can know the cooling capacity for chillers. We use KW ,Ton, But/h,Kcal/h to choose chiller cooling capacity :1 KW=860 kcal/h ; 1 TON=3.517 KW; 1 KW=3412 Btu/h;
There is also a formula to calculate the cooling capacity for chiller:.
Cooling Capacity(kw)= Flow Rate(m3/h)*Temp Change(T1-T2)/0.86
Heat Load= C(specific heat)* M(quality output per hour )*Temp Change(T1-T2)
Oversize the chiller by 20% Ideal Size in KW = KW x 1.2
Noted : T1:Incoming Water Temperature (℃) T2:Required Chilled Water Temperature(℃)
For example, what size of chiller is required to cool 10m³ water from 35°c to 15 °c in 1 hour?
Temperature Differential = 35℃-15℃=20℃
Water Flow Rate = 10 m³/hour
Cooling Capacity in KW = 10 x 20 ÷ 0.86 = 232 KW
Oversize the chiller = 232 x 1.2 = 278.4KW
278.4 kw cooling capacity for chiller is required.
Different countries and regions have different standards for industrial electricity, the common power supplies are 208-230V, 380-420V,440-480V,50Hz or 60Hz, 3phase.
Such in Philippines ,the power supply is 220V 60HZ 3PH , 380V 60HZ 3PH ,460V 60HZ 3PH;
in Singapore and Malaysia ,the power supply is 415V 50HZ 3PH;
in Mexico ,the power supply is 220V 60HZ 3PH;
In USA ,the power supply is 208V 60HZ 3PH;575V 60HZ 3PH;480V 60HZ 3PH and so on
When you decide the capacity/tonnage of the chiller, we will recommend you the suitable pump in KW,which standard water pump is about 2 bar .If you need more high water pressure , please us when you inquiry.
R22, R410A, R407C, R404A, R134A are optional choices.
R22: good cooling effect, but R22 is considered a powerful greenhouse gas, so it’s forbidden in most countries.
R410A: eco-friendly, R-410A has replaced R-22 as the preferred refrigerant for use in residential and commercial air conditioners in Japan, Europe, and the United States. R-410A operates at higher pressures than other refrigerants.
R407C: a good replacement for R22, good cooling effect.
R404A: suitable for application that requires low temperature(below -10°c).
R134A: a non-flammable gas used primarily as a “high-temperature” refrigerant, suitable for air-cooled chiller working at a high ambient temperature above 50℃.
Chillers generally have two types of evaporators: one is coil in water tank evaporator ,the other one is shell and tube evaporator.
Coil and tank evaporator, which has a built-in water storage tank for more convenient use,so there’s no need for extra buffer tanks. This is also our standard evaporator for chiller , if you don’t have buffer tank ,we just use this evaporator for your chiller.
Shell and tube type evaporator,
which requires an additional water buffer tank to connect .
As a professional low temperature glycol chiller supplier &exporter,we have our own shipment forwarder to arrange the shipment .Our chiller machine is with plywood packing,which prevent damage during transportation and meet export standards.There are three ways can delivery your chiller unit :
1. Ship by Air: As the chiller is with compressor ,water pump and fans ,the compressed refrigerant and oil inside the compressor is a dangerous item with the possibility of explosion , so it needs to release the compressed refrigerant before transportation. (It means that water chiller without refrigerant when choosing this shipping way. After the machine arrives at your destination, you need to add refrigerant by local professionals. The airline company also request us to provide many documents to prove that the chiller not a dangerous product. The freight cost by air is very high may be higher than the cost of chiller , So By air for delivery is not the mode of transport recommended to our customer.
2. Ship by Sea: The transportation time is longer than by air , but the freight cost is cheap ,and there is no need to add refrigerant after the equipment arrives at the destination.This shipping way is the most suitable mode of transportation for you to delivery your local port.
3.If you have your own shipment container in your other supplier in China, we can help you delivery the chiller machine to your supplier in any city of China .
