15 Ton Industrial Chiller For Stretch Film Machine

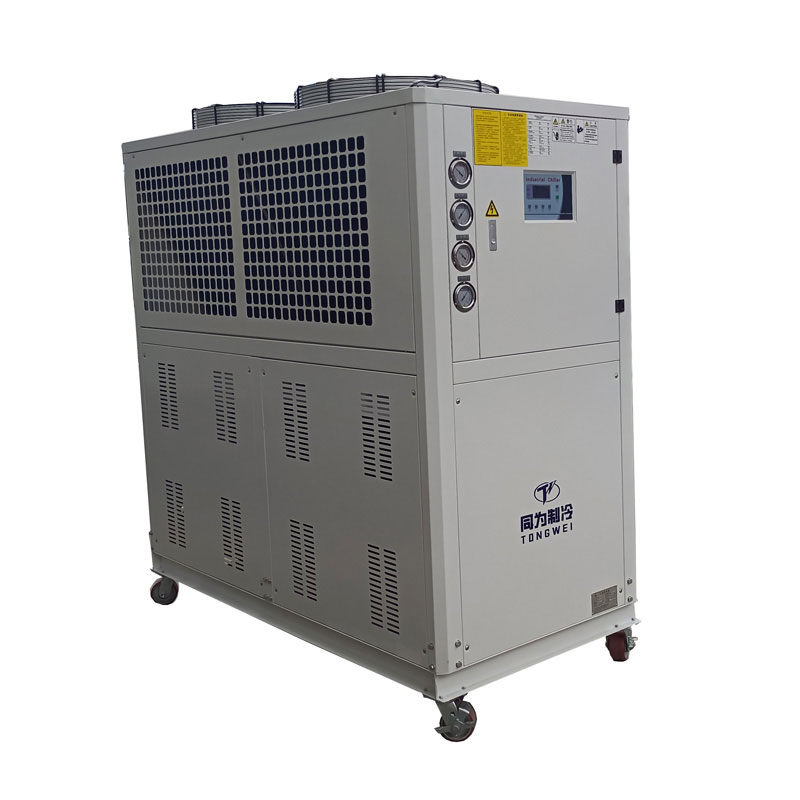

  • 15 Ton Industrial Chiller For Stretch Film Machine15 Ton Industrial Chiller For Stretch Film Machine

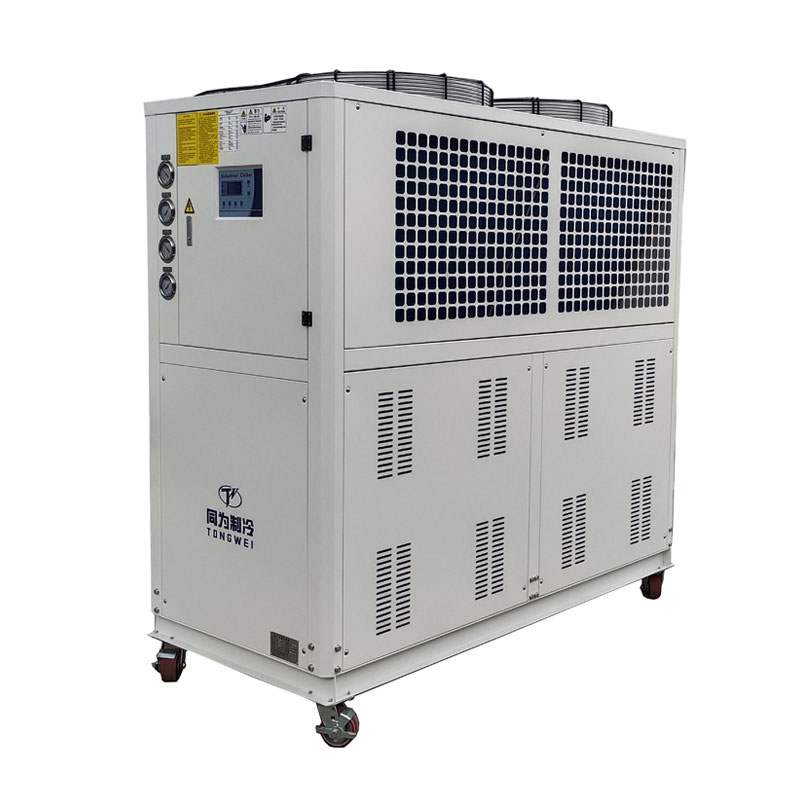

  • 15 Ton Industrial Chiller For Stretch Film Machine15 Ton Industrial Chiller For Stretch Film Machine

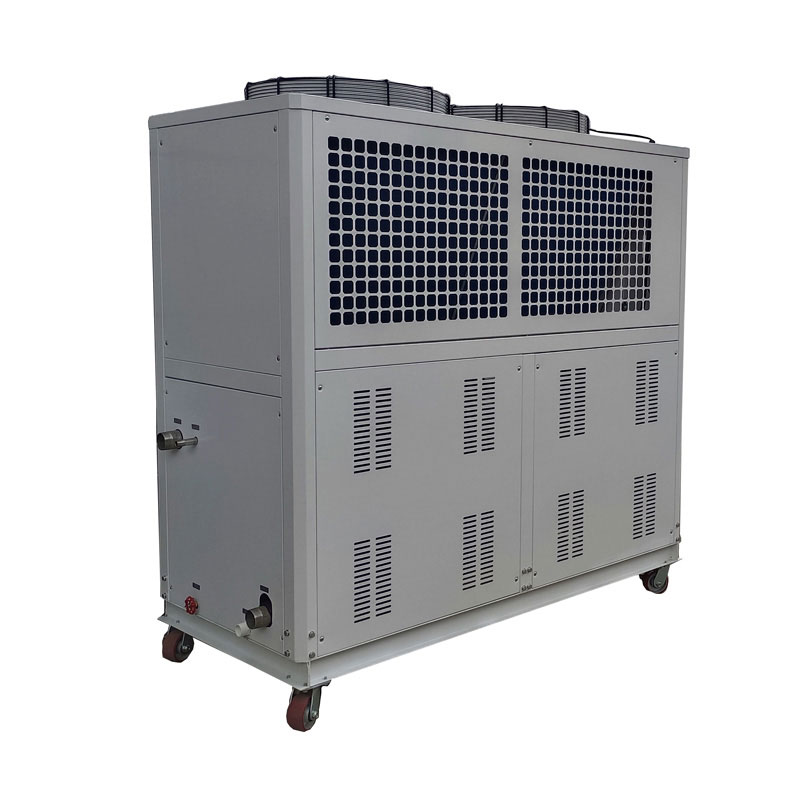

  • 15 Ton Industrial Chiller For Stretch Film Machine15 Ton Industrial Chiller For Stretch Film Machine

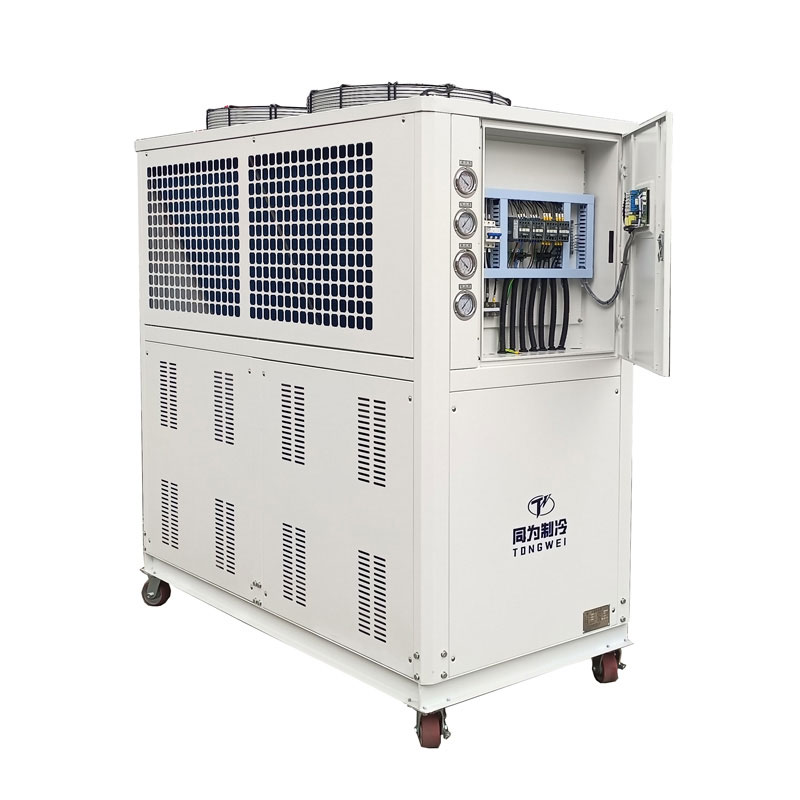

  • 15 Ton Industrial Chiller For Stretch Film Machine15 Ton Industrial Chiller For Stretch Film Machine

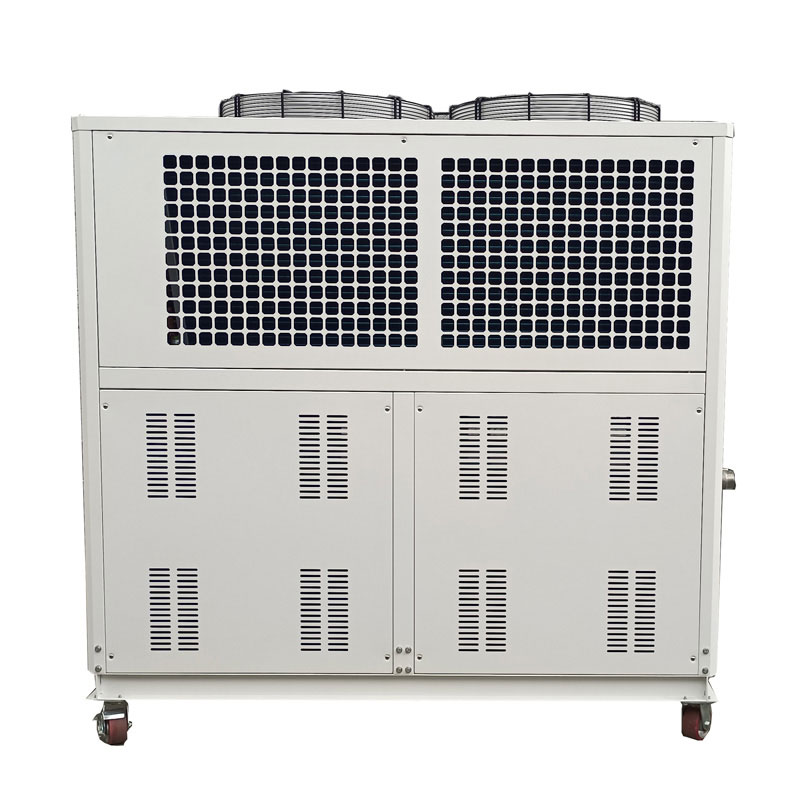

  • 15 Ton Industrial Chiller For Stretch Film Machine15 Ton Industrial Chiller For Stretch Film Machine

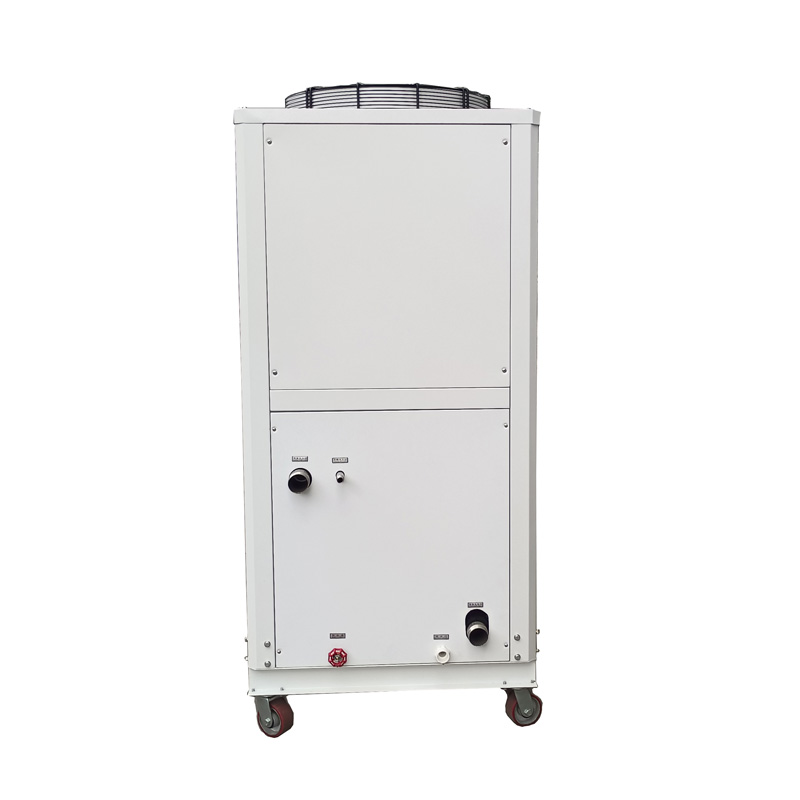

  • 15 Ton Industrial Chiller For Stretch Film Machine15 Ton Industrial Chiller For Stretch Film Machine

15 Ton Industrial Chiller For Stretch Film Machine

Tongwei is a your professional 15 Ton Industrial Chiller For Stretch Film Machine manufacturer and industrial cooling system solution provider with more than 15 years of experience, which supplying a complete line of all industrial chillers with steady quality and good cooling performance from 1/2 Ton to 200 Ton cooling capacity. 15 Ton 20HP Industrial Chiller is used for cooling Stretch Film Machine from 5℃ to 25 ℃. All industrial chillers are with 12 months warranty time including free spare parts and full-time technical support and give installation&commission guide from Tongwei. Once you purchase industrial air chiller and water chiller from us, we can provide whole lifetime service to you. We look forward to becoming your long-term industrial chiller supplier in China.

Chiller Model: TW-20AD
Cooling Capacity: 59.08KW(50805 kcal/h) @ 50HZ / 69.12KW(59442 kcal/h) @ 60HZ
Refrigerant: R22/R407c/R410a/R134A/R404a
Power Supply: 380V/50HZ /3PH (Standard) / 208-480V/60HZ/3PH(Customized)
Compressor Brand: Panasonic/Danfoss Scroll Compressor
Evaporator Type: Coil in SS Water Tank (Standard) / Shell and Tube(Customized)

Send Inquiry

Product Description


15 Ton 20HP Industrial Chiller For Stretch Film Machine

High quality 15 Ton Industrial Chiller For Stretch Film Machine is offered by China manufacturers Tongwei. Industrial chiller is a type of water cooling machine removes heat from the process to guarantee  constant temperatures through a refrigeration system. 15 Ton Industrial Chiller For Stretch Film Machine model TW-20AD with the cooling capacity is about 60KW(50000Kcal/h) .It includes TWO scroll 10HP Panasonic compressor using environmental friendly R410A/R407C refrigerant, air-cooled condenser, condenser fins, SS coil in water tank heat exchanger, water pump,refrigeration circuit, expansion valve and protecting devices, temperature controller. It is with fans on the top of chiller ,so it no need install with cooling tower ,which is easily install.Maintaining precise temperatures during the extrusion process is critical to producing consistent and high-quality stretch film. Industrial chillers help regulate temperature to ensure uniform thickness, strength and overall properties of stretch film, reducing defects and improving product quality.


As a professional industrial chiller manufacturer and supplier for over 15 years, Tongwei is always happy to provide our free service and technical support accessible to our clients,so if you don’t know how to select suitable chiller for your stretch film machine,please free contact us ,we will give your our best chiller solution for your applications based on our rich experience.


If you are sourcing high quality and reasonable price industrial chiller in China, Contact us to select industrial chillers for your application at once.


15 Ton Industrial Chiller For Stretch Film Machine Technical Specification MODEL:TW-20AD

Model

TW-20AD

nominal cooling capacity

KW

50HZ

59.08

60HZ

69.12

Ton

50HZ

16.80

60HZ

19.65

Chilled Water temperature range

5~35

Max power consumption

kw

18.8

Full load

Amp

52.7

power source



3PH-380V-50HZ (Standard)

3PH-220-480V-60HZ (Customized)

refrigerant

type



R22/R407C/R410A/R134A

control



External balance of thermal expansion valve

compressor

type



hermetic scroll type

power

kw

7.5*2

QTY.

Unit

2

condenser

type



Efficient aluminum finned copper sleeve+low noise external rotor fan

air volume

m3/h

20000

fan motor

kw

0.78*2

evaporator

type



Coil in Water tank evaporator (Standard)

shell and tube Type Evaporator (Customized)

Cooling water flow rate

m3/h

10.16

Tank volume

L

280

inlet and outlet connection(BSP)

inch

                             2-1/2’’

Water pump

power

kw

                            2.2

Water Flow

M3/h

                           25.2

Max.Pressure

Bar

                            2

safety devices

Compressor overheating protection,over-current protection,high and low pressure protection,over-temperature protection,traffic protection,phase sequence/phase loss protection,low level protection,frost protection

dimension

mm

2030*960*2020

weight

kg

660


Features And Advantages of Industrial Chiller

»Industrial chiller cooling capacity1/2 Ton to 500 Ton

»208-570V 60HZ 3Phase power supply customize for USA ,Philippines,Mexico,Peru Customers

»Temperature control 7℃(45°F)to 25℃(77°F)

»Air-cooled or Water-cooled chiller option

»High-quality scroll or screw compressor compressor

»Environment-friendly efficient refrigerant R407c/R410a/R134a

»SS coil in water tank,shell&tube or SS PHE evaporator for optional

»Water-proof design for outdoor installation


What Are The Main Components Of 15 Ton Industrial Chiller For Stretch Film Machine

3.1 Compressor

The compressor is the key mover in Industrial chiller because it produces pressure variations to stir the refrigerant around.

For 15 Ton 20HP Industrial Chiller For Stretch Film Machine, which is with TWO unit 10HP Panasonic brand compressor, using R410A/R407C/R134a refrigerant,this brand compress is with high refrigeration efficiency,low noise ,energy saving,environmental protection and durability,safety and stability.

Panasonic Compressor


3.2 Evaporator

The evaporator is a crucial component of industrial chiller , as it is responsible for extracting heat from the liquid being cooled,it is located between the compressor and the expansion valve. There are three types of evaporators : coil in water tank evaporator , shell and tube evaporator, 304SS stainless steel plate type evaporator.

Coil in SS Water Tank Evaporator


SS Plate Type+ Water Tank Evaporator


Shell and Tube Evaporator


3.3 Water Pump

The water pump is designed to increase the pressure and the flow of the chilled water in a closed space.

the water pressure water pump for chiller is about 2 bar , but if you need more higher water pressure , please tell us when you inquiry .For example ,when you use chillers for cooling bottle blowing machine ,the water pressure for water pump need about 4 bar .

Water Pump


High Pressure Water Pump


3.4 Condenser

The condenser for industrial air cooled chiller is equipped with efficient cross-seam fins and female threaded copper tubes for high heat exchange efficiency and good stability.Its function is to cool down the refrigerant steam released from the compressor into a liquid or gas-liquid mixture.



Aluminum fin+fan Condenser


3.5 Controller Panel

Tongwei chillers use precision digital temperature controller, it RS485 communication port,which can do remote monitoring and control. Simple operation, low failure rate, high safety factor, easy installation.

Controller Panel


Spare Part for Industrial Chiller


How I Can Choose The Right 15 Ton Industrial Chiller For Stretch Film Machine for Your Application?

There are five important chiller specifications you need consider when you choose a chiller for your application :the cooling capacity for chiller ,the voltage required for operation, the associated pump horsepower and flow rate (contact us for custom selection), refrigerant, and the evaporator type.


5.1 Calculate Right Cooling Capacity For Chiller

One of the most frequently ask about how we can know the cooling capacity for chillers.  We use KW ,Ton, But/h,Kcal/h to choose chiller cooling capacity :1 KW=860 kcal/h ;  1 TON=3.517 KW; 1 KW=3412 Btu/h;


There is also a formula to calculate the cooling capacity for chiller:.

Cooling Capacity(kw)= Flow Rate(m3/h)*Temp Change(T1-T2)/0.86

Heat Load= C(specific heat)* M(quality output per hour )*Temp Change(T1-T2)

Oversize the chiller by 20% Ideal Size in KW = KW x 1.2

Noted : T1:Incoming Water Temperature (℃)      T2:Required Chilled Water Temperature(℃)



For example, what size of chiller is required to cool 10m³ water from 35°c to 15 °c in 1 hour?

Temperature Differential = 35℃-15℃=20℃

Water Flow Rate = 10 m³/hour

Cooling Capacity in KW = 10 x 20 ÷ 0.86 = 232 KW

Oversize the chiller = 232 x 1.2 = 278.4KW

278.4 kw cooling capacity for chiller is required.


5.2 Power

Different countries and regions have different standards for industrial electricity, the common power supplies are 208-230V, 380-420V,440-480V,50Hz or 60Hz, 3phase.

Such in Philippines ,the power supply is 220V 60HZ 3PH , 380V 60HZ 3PH ,460V 60HZ 3PH;

in Singapore and Malaysia ,the power supply is 415V 50HZ 3PH;

in Mexico ,the power supply is 220V 60HZ 3PH;

In USA ,the power supply is 208V 60HZ 3PH;575V 60HZ 3PH;480V 60HZ 3PH and so on


5.3 Water Pump

When you decide the capacity/tonnage of the chiller, we will recommend you the suitable pump in KW,which standard water pump is about 2 bar .If you need more high water pressure , please us when you inquiry.


5.4 Refrigerant

R22, R410A, R407C, R404A, R134A are optional choices.

R22: good cooling effect, but R22 is considered a powerful greenhouse gas, so it’s forbidden in most countries.

R410A: eco-friendly, R-410A has replaced R-22 as the preferred refrigerant for use in residential and commercial air conditioners in Japan, Europe, and the United States. R-410A operates at higher pressures than other refrigerants.

R407C: a good replacement for R22, good cooling effect.

R404A: suitable for application that requires low temperature(below -10°c).

R134A: a non-flammable gas used primarily as a “high-temperature” refrigerant, suitable for air-cooled chiller working at a high ambient temperature above 50℃.


5.5 Evaporator Choose

Chillers generally have two types of evaporators: one is coil in water tank evaporator ,the other one is shell and tube evaporator.

Coil and tank evaporator, which has a built-in water storage tank for more convenient use,so there’s no need for extra buffer tanks. This is also our standard evaporator for chiller , if you don’t have buffer tank ,we just use this evaporator for your chiller.

Shell and tube type evaporator, which requires an additional water buffer tank to connect .


Industrial Applications of Industrial Chiller

Industrial chiller is very popular refrigeration system that can provide steady and reliable water cooling sources for both industrial and commercial usage,which is also widely used in plastic industry,food industry ,chemical industry and other industrial.


6.1 Plastic Industry

Industrial chillers are also widely used in plastic processing and plastic industry including plastic injection molding, plastic extrude, and extrusion lines, blowing molding machines.

The function of using an Industrial air cooled scroll chiller is to provide the cooling water flow rate for cooling the plastic mold temperature down to make sure the product quality and production efficiency.

Industrial chiller For Plastic Industry


6.2 Food Industry

Air cooled chillers are important in the food industry to maintain temperature control, preserve quality, support various production processes, and comply with regulations.

Industrial chiller For Food Industry


6.3 Chemical Industry

The pharmaceutical industry prepares medicines by processing through different heating and cooling parameters as blending, extrusion, mixing,air cooled screw chiller are cooling machines providing low-temperature cooling water, reduce the temperature of the chemical machinery and pharmaceutical cooling processing.

Industrial air process chiller For Chemical industry


Shipping Way of 15 Ton Industrial Chiller For Stretch Film Machine

As a professional industrial air cooled process chiller supplier &exporter,we have our own shipment forwarder to arrange the shipment .Our chiller machine is with plywood packing,which prevent damage during transportation and meet export standards.There are three ways can delivery your chiller unit :


1. Ship by Air: As the chiller is with compressor ,water pump and fans ,the compressed refrigerant and oil inside the compressor is a dangerous item with the possibility of explosion , so it needs to release the compressed refrigerant before transportation. (It means that water chiller without refrigerant when choosing this shipping way. After the machine arrives at your destination, you need to add refrigerant by local professionals. The airline company also request us to provide many documents to prove that the chiller not a dangerous product. The freight cost by air is very high may be higher than the cost of chiller , So By air for delivery is not the mode of transport recommended to our customer.


2. Ship by Sea: The transportation time is longer than by air , but the freight cost is cheap ,and there is no need to add refrigerant after the equipment arrives at the destination.This shipping way is the most suitable mode of transportation for you to delivery your local port.


3.If you have your own shipment container in your other supplier in China, we can help you delivery the chiller machine to your supplier in any city of China .


Why should you choose Tongwei for your industrial chiller supplier?

▪ Experience you can trust

We have been designing and building industrial process chiller for over 15 years. From air cooled chiller to water cooled chillers and everything in between, we have built chillers for nearly every industry and every application.


▪ Fast Quote

Get a quote for your project today! We typically provide a custom quote within 2 hours.


▪ 24/7 customer service

Believe that we will always be by your side. Whether you have a question or need a quote, there‘s always someone answering the phone 24 hours a day.


▪ Durable, reliable chiller machine & Competitive Price

Our products are manufactured from high quality materials and we offer a competitive warranty on all industrial chillers.
