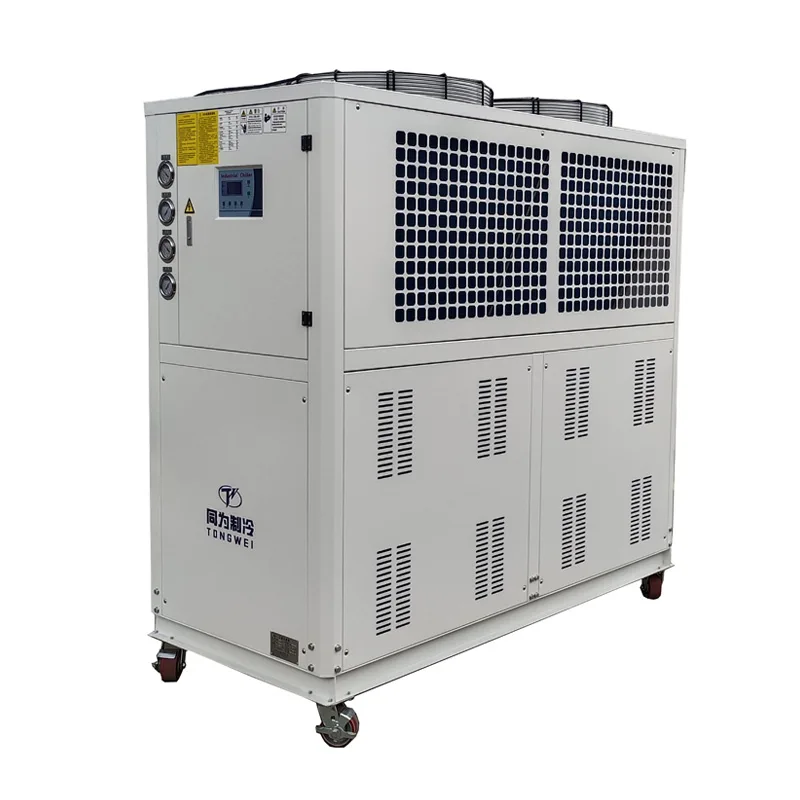

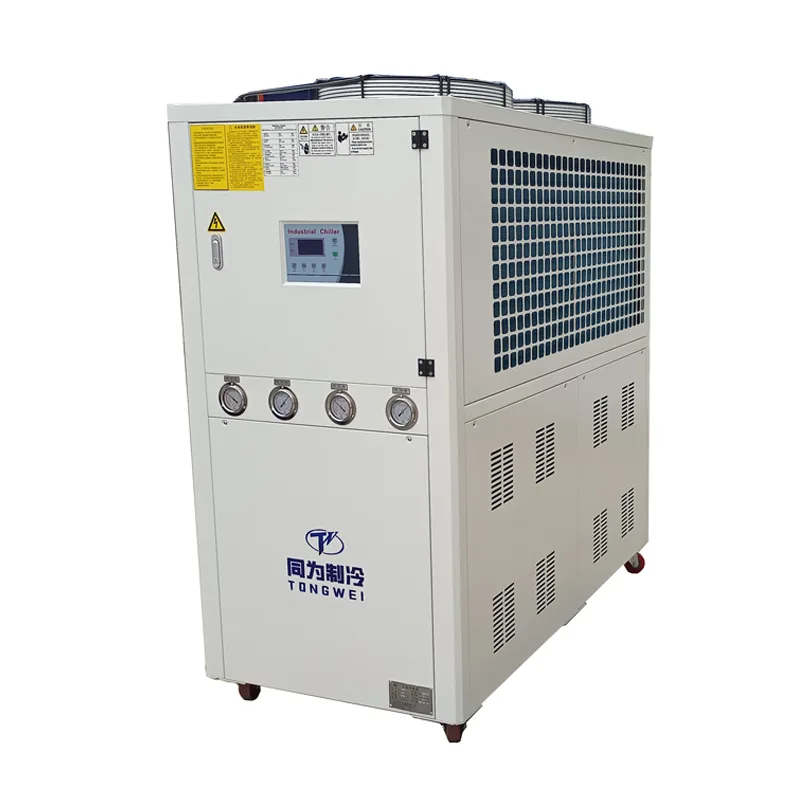

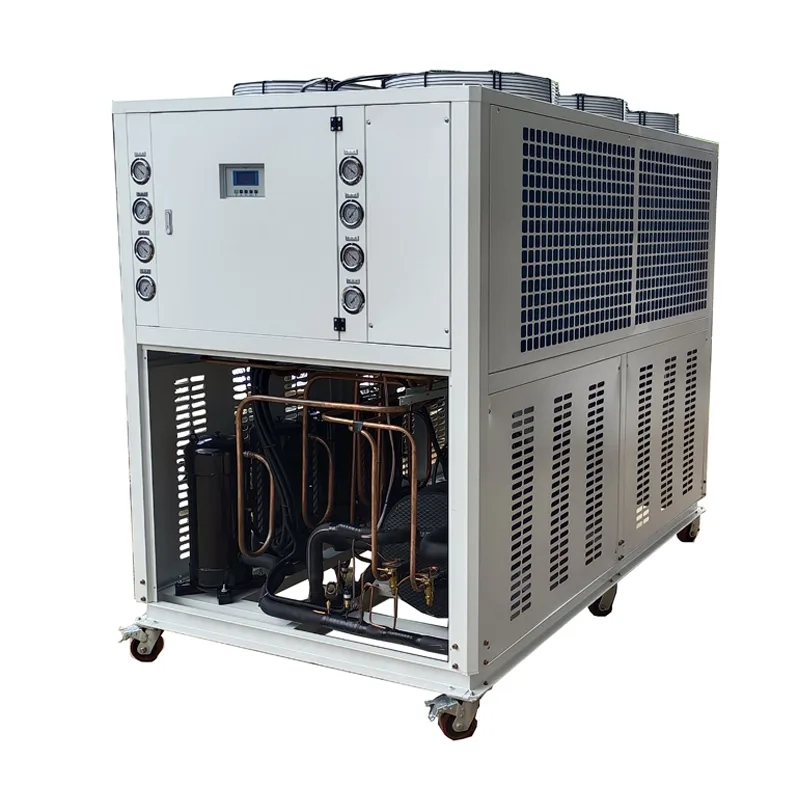

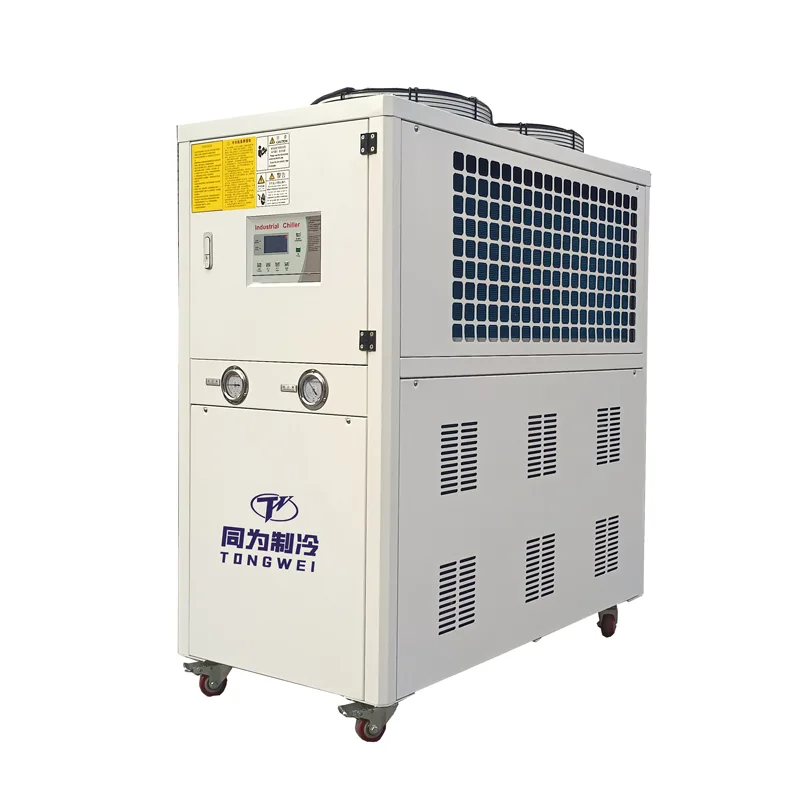

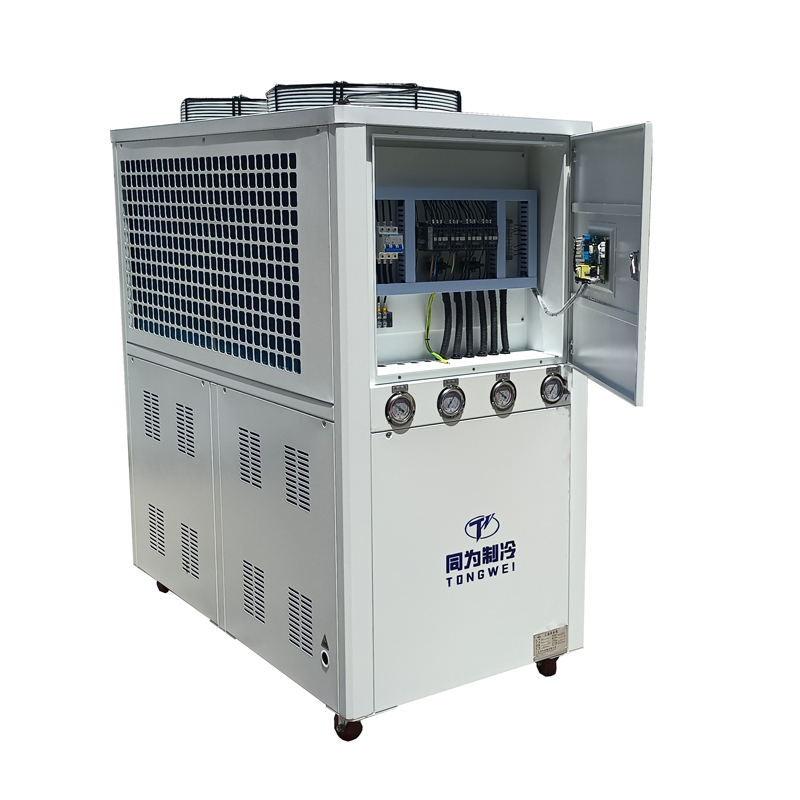

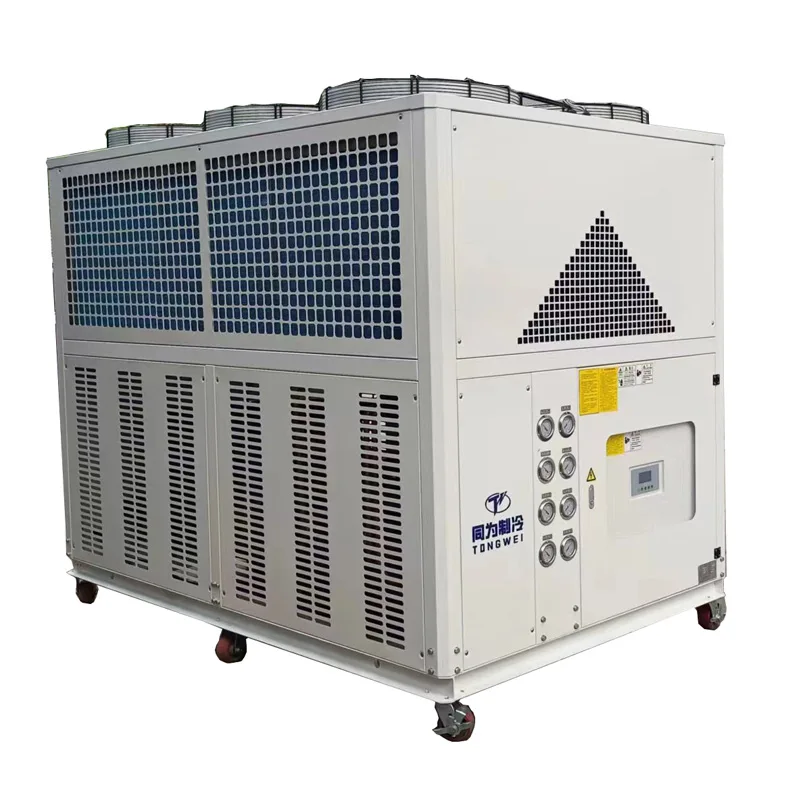

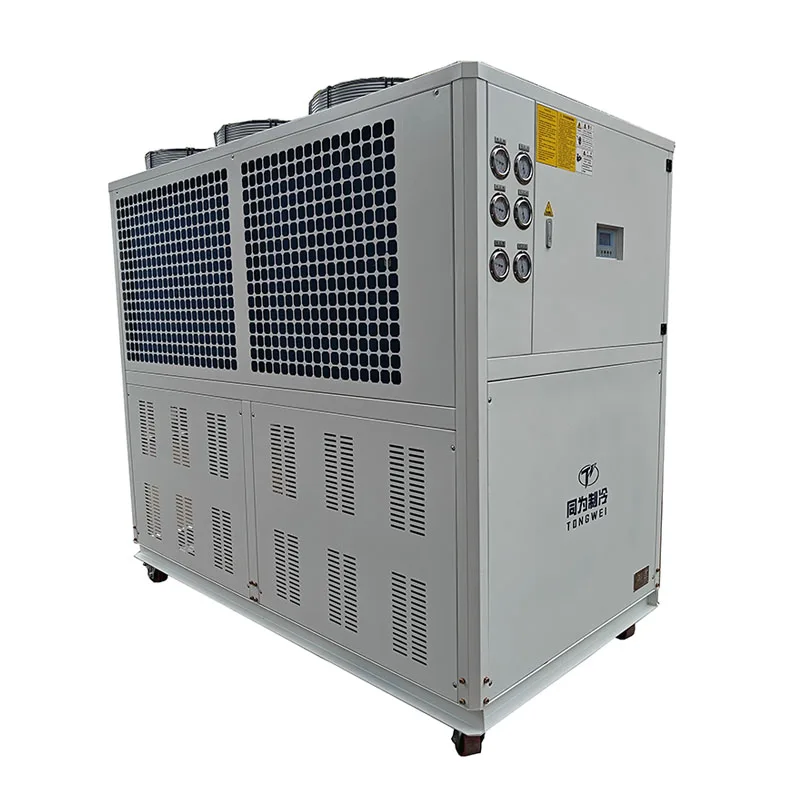

10HP Air Cooled Packaged Scroll Chiller

10HP air cooled packaged scroll chiller is also called 10Ton or 35KW industrial water chiller ,these air chillers dissipate heat from the system directly into the ambient air. They use air blower and condenser coils to achieve a higher cooling effect,which no need connect with water cooling tower outside , so you don’t have to worry about expensive water and cooling tower costs. More importantly, this 10HP air cooled packaged scroll chiller reduces the initial installation costs.

For efficient cooling and heat transfer, Tongwei 10HP 10Ton air cooled packaged scroll chillers use centrifugal fans. These fans guarantee powerful air flow in chiller coils for maximum cooling effect.

Additionally, our packaged air cooled scroll chillers have copper condenser coils. These chiller coils are corrosion-resistant and guarantee 2 times faster heat transfer than traditional aluminum coils.  These coils extend the chiller’s service lifespan, which lowers the total costs of ownership, while guaranteeing efficient heat transfer.

If you are looking for air cooled packaged scroll chillers fully assembled in our Tongwei factory in China, then this is the best design for your plastic industry,chemical, food, or beverage industry applications.

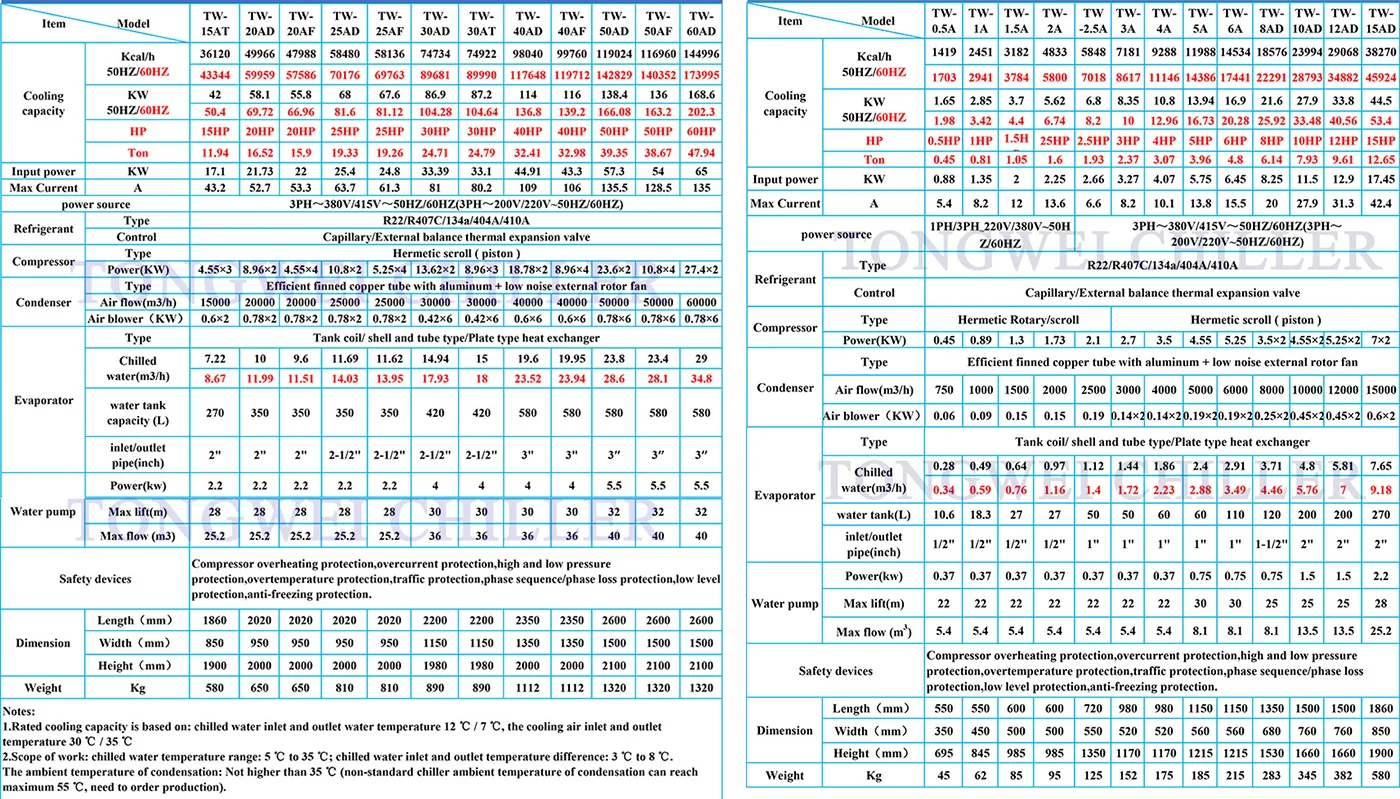

Air Cooled Packaged Scroll Chiller Technical Specifications

Features of Air Cooled Packaged Scroll Chiller

»Standard air cooled packaged scroll chiller cooling capacity available from 1/2 tons – 60 tons

»Temperature range from -25°C to 25°C

»Temperature control to within 0.5°F

»SS coil in water tank,shell&tube or SS brazed-plate type evaporator for optional. Plate type evaporator provides large heat transfer surface, low coolant pressure loss and a compact design.

»208-570V 60HZ 3Phase power supply customize for USA ,Philippines,Mexico,Peru Customers

»Eco-friendly R410A /R407c refrigerant ensures compliance with global environmental standards.

»Built with Stainless steel water and water pump inside

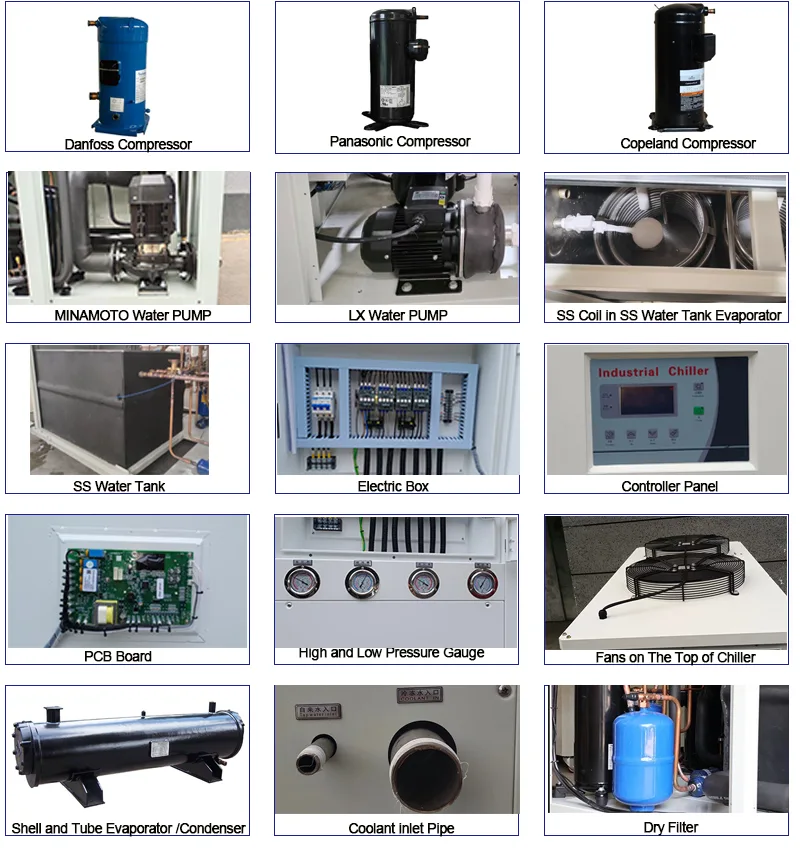

Spare Part for Air Cooled Packaged Scroll Chiller

How I Can Choose The Right Air Cooled Packaged Scroll Chiller for Your Application?

There are five important chiller specifications you need consider when you choose a air cooled packaged scroll chiller for your application :the cooling capacity for chiller ,the voltage required for operation, the associated pump horsepower and flow rate (contact us for custom selection), refrigerant, and the evaporator type.

Calculate Right Cooling Capacity For Chiller

One of the most frequently ask about how we can know the cooling capacity for chillers.  We use KW ,Ton, But/h,Kcal/h to choose chiller cooling capacity :1 KW=860 kcal/h ;  1 TON=3.517 KW;

1 KW=3412 Btu/h;

There is also a formula to calculate the cooling capacity for chiller:.

Cooling Capacity(kw)= Flow Rate(m3/h)*Temp Change(T1-T2)/0.86

Heat Load= C(specific heat)* M(quality output per hour )*Temp Change(T1-T2)

Oversize the chiller by 20% Ideal Size in KW = KW x 1.2

Noted : T1:Incoming Water Temperature (℃)      T2:Required Chilled Water Temperature(℃)

For example, what size of chiller is required to cool 10m³ water from 35°c to 15 °c in 1 hour?

Temperature Differential = 35℃-15℃=20℃

Water Flow Rate = 10 m³/hour

Cooling Capacity in KW = 10 x 20 ÷ 0.86 = 232 KW

Oversize the chiller = 232 x 1.2 = 278.4KW

278.4 kw cooling capacity for chiller is required.

Power

Different countries and regions have different standards for industrial electricity, the common power supplies are 208-230V, 380-420V,440-480V,50Hz or 60Hz, 3phase.

Such in Philippines ,the power supply is 220V 60HZ 3PH , 380V 60HZ 3PH ,460V 60HZ 3PH;

in Singapore and Malaysia ,the power supply is 415V 50HZ 3PH;

in Mexico ,the power supply is 220V 60HZ 3PH;

In USA ,the power supply is 208V 60HZ 3PH;575V 60HZ 3PH;480V 60HZ 3PH and so on

Water Pump

When you decide the capacity/tonnage of the chiller, we will recommend you the suitable pump in KW,which standard water pump is about 2 bar .If you need more high water pressure , please us when you inquiry.

Refrigerant

R22, R410A, R407C, R404A, R134A are optional choices.

R22: good cooling effect, but R22 is considered a powerful greenhouse gas, so it’s forbidden in most countries.

R410A: eco-friendly, R-410A has replaced R-22 as the preferred refrigerant for use in residential and commercial air conditioners in Japan, Europe, and the United States. R-410A operates at higher pressures than other refrigerants.

R407C: a good replacement for R22, good cooling effect.

R404A: suitable for application that requires low temperature(below -10°c).

R134A: a non-flammable gas used primarily as a “high-temperature” refrigerant, suitable for air-cooled chiller working at a high ambient temperature above 50℃.

Evaporator Choose

Chillers generally have two types of evaporators: one is coil in water tank evaporator ,the other one is shell and tube evaporator.

Coil and tank evaporator, which has a built-in water storage tank for more convenient use,so there’s no need for extra buffer tanks. This is also our standard evaporator for chiller , if you don’t have buffer tank ,we just use this evaporator for your chiller.

Shell and tube type evaporator, which requires an additional water buffer tank to connect .

What are the Benefits of Using an Air Cooled Packaged Scroll Chiller?

Easy Installation

Unlike water cooled packaged scroll chillers, an air cooled packaged chiller typically does not require water cooling tower for operation,you just use pipes to connect with your machine for use. This results in a simpler structure and easier installation for you, allowing it to be rapidly deployed.

Simple Maintenance

This straightforward design facilitates easier following maintenance. You won’t need frequent inspections of the cooling water system or replacements, this also helps save you maintenance costs.

Wide Application

Frankly, air cooled packaged scroll chillers do not operate entirely without water, they require only a minimal amount. Consequently, even in arid or water scarce regions, air cooled packaged scroll chillers deliver outstanding cooling performance. Their footprint is smaller than that of water cooled models and offers greater flexibility in selecting installation locations.

How to install an Air Cooled Packaged Scroll Chiller?

First, you need to find a suitable location for installing an air cooled packaged scroll chiller. This location must not only have sufficient space but also allow for proper ventilation and heat dissipation around the unit.

If the chiller is placed directly against walls on all sides, it may cause poor heat dissipation, leading to overheating and potential malfunctions. Next, you can connect the necessary pipes, such as securing the power supply location and connecting water lines. To ensure optimal equipment performance, you can also fill the system with an appropriate amount of circulating water to guarantee smoother water flow during operation.

Why Choose Tongwei As Your Air Cooled Packaged Scroll Chiller Supplier ?

Custom chiller size

whether it is portable, compact, large and small air cooled packaged scroll chiller, we can custom design them according to your requirements. no matter how many /KW/tons of chiller you need , we can give you our the best solution.

Custom chiller types

Tongwei provide packaged scroll chillers of various refrigeration types, including but not limited to air-cooled chiller and water-cooled chiller regardless of the type of refrigeration compressor, we can design it according to your requirements.

Custom water temperature range

Tongwei can create a custom solution for temperatures from -40℃ to 35℃ ±0.1°C stability. Custom temperature ranges for specific industries.

Custom chiller voltage

Customize chiller voltage and phase according to your needs. Optional 220V/60HZ, 380V/50HZ,  400-415V/50HZ, 460V/60HZ, 440V~480V/60HZ, etc for different countries.

24/7 Technical Support

Believe that we will always be by your side. Whether you have a question or need a quote, there‘s always someone answering the phone 24 hours a day.Our after sales service team provides lifetime assistance for troubleshooting and maintenance. If the spare part for chiller is broken ,Tongwei will provide it for replace.

Fast Quote

Get a quote for your project today! We typically provide a custom quote within 2 hours.

Durable, reliable chiller machine & Competitive Price

Our portable recirculating water chillers are manufactured from high quality materials and we offer a competitive warranty on all industrial chillers.

Shipping Way of Air Cooled Packaged Scroll Chiller

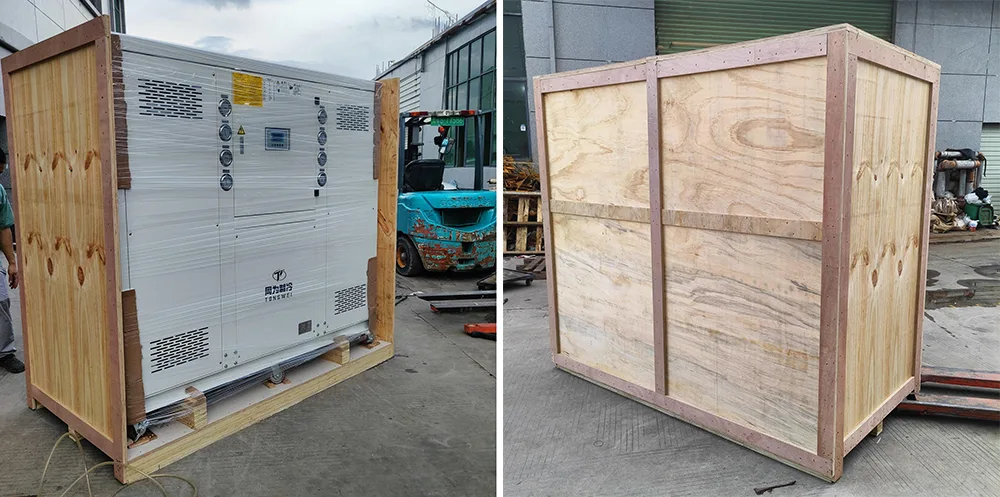

As a professional industrial water chiller supplier &exporter,we have our own shipment forwarder to arrange the shipment .Our chiller machine is with plywood packing,which prevent damage during transportation and meet export standards.There are three ways can delivery your chiller unit :

1. Ship by Air: As the chiller is with compressor ,water pump and fans ,the compressed refrigerant and oil inside the compressor is a dangerous item with the possibility of explosion , so it needs to release the compressed refrigerant before transportation. (It means that water chiller without refrigerant when choosing this shipping way. After the machine arrives at your destination, you need to add refrigerant by local professionals. The airline company also request us to provide many documents to prove that the chiller not a dangerous product. The freight cost by air is very high may be higher than the cost of chiller , So By air for delivery is not the mode of transport recommended to our customer.

2. Ship by Sea: The transportation time is longer than by air , but the freight cost is cheap ,and there is no need to add refrigerant after the equipment arrives at the destination.This shipping way is the most suitable mode of transportation for you to delivery your local port.

3.If you have your own shipment container in your other supplier in China, we can help you delivery the chiller machine to your supplier in any city of China .
