100 HP Water Cooled Glycol Screw Chiller

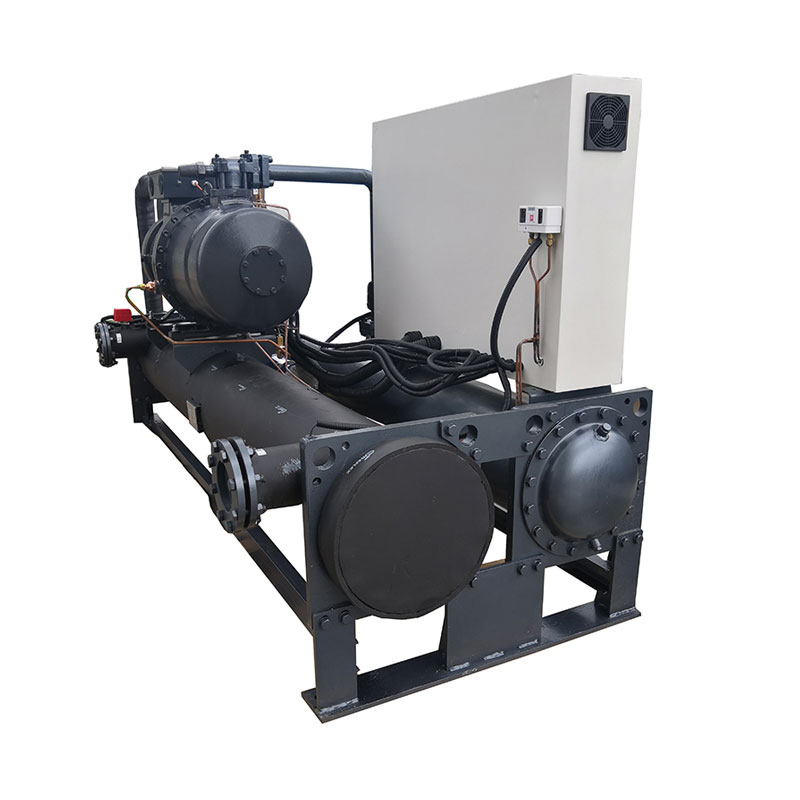

  • 100 HP Water Cooled Glycol Screw Chiller100 HP Water Cooled Glycol Screw Chiller

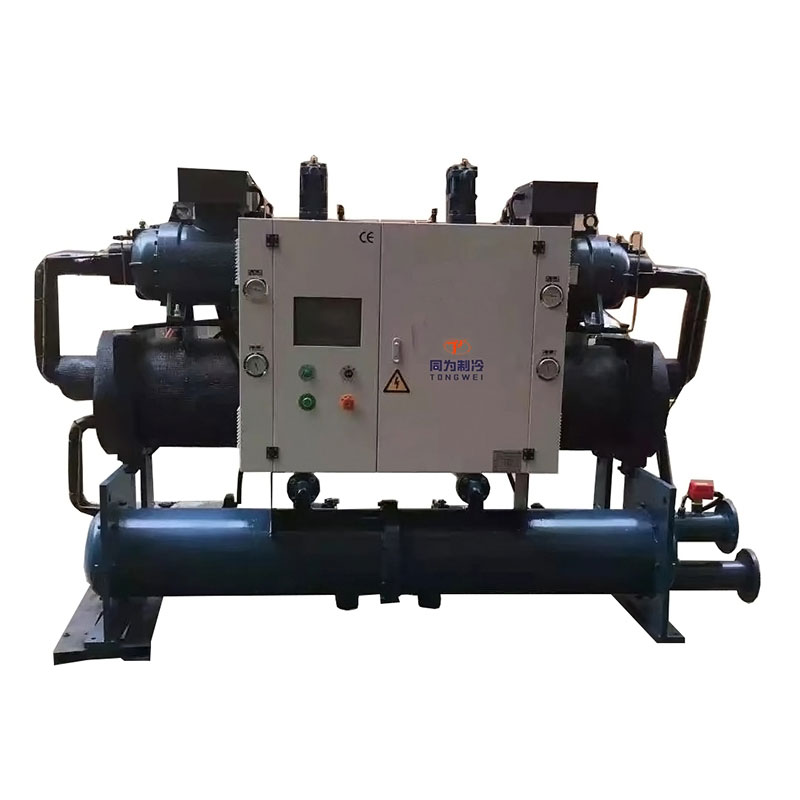

  • 100 HP Water Cooled Glycol Screw Chiller100 HP Water Cooled Glycol Screw Chiller

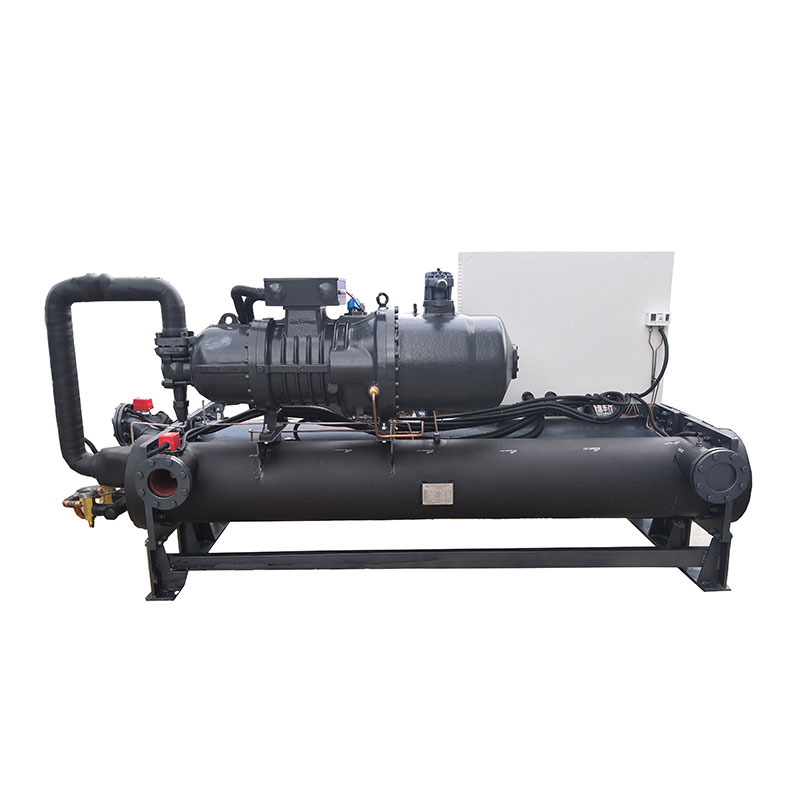

  • 100 HP Water Cooled Glycol Screw Chiller100 HP Water Cooled Glycol Screw Chiller

100 HP Water Cooled Glycol Screw Chiller

With more than 15 years of supplier and manufacturer experience in 100 HP Water Cooled Glycol Screw Chiller, Tongwei supplies a total packaged solution of all refrigeration chillers for -40℃ to 2℃ temperature range, cooling capacity from 80KW to 1500KW. Water cooled glycol screw chiler is with SCREW compressor used R404a refrigerant, shell and tube evaporator and condenser, Simenon PLC temperature controller, which is widely used in winery, brewery, distillery, fermentation cooling process. We have strict quality control and strong ability of designing and manufacturing. We look forward to becoming your long-term water-cooled glycol screw chiller supplier in China.

Send Inquiry

Product Description


100 HP Water Cooled Glycol Screw Chiller

Find a huge selection of 100 HP Water Cooled Glycol Screw Chiller from China at Tongwei. A glycol chiller is a refrigeration system that uses a proportion of ethylene glycol mixed with water to produce extremely low temperatures that far exceed the freezing point of water. The two types of ethylene glycol are ethylene glycol-based or propylene glycol-based. The antifreeze properties of ethylene glycol ensure that the coolant remains in a fluid state to reach its low cooling point.Glycol is recommended for all chiller units when operating temperatures are below 41°F (5°C). our vast experience with low-temp chillers delivers reliable engineered solutions for every process need.


100HP Water-Cooled Glycol Screw Chiller model TW-100WSH includes ONE multi-stage hermetic screw compressor using R404a refrigerant. The refrigerant is a non-depleting ozone gas and is considered environmentally friendly. It need install with water cooling tower and water cooling pump for high cooling efficiency.


Tongwei is china top manufacturer and supplier of glycol chiller with 15 years of refrigeration experience, we guarantee the production of the best quality industrial chiller system with amazing specifications and super warranty offers.


100 HP Water Cooled Glycol Screw Chiller Technical Specification MODEL:TW-100WSL

Model

TW-100WSL

nominal cooling capacity

KW

-10℃

186

-20℃

125

-30℃

90

Chilled Water temperature range

-30~5

Max power consumption

kw

73

Full load

Amp

220

power source



3PH-380V-50HZ (Standard)

3PH-220-480V-60HZ (Customized)

refrigerant

type



R404A

Charge Amount

KG

72

control



External balance of thermal expansion valve

compressor

type



Semi-hermetic screw type

power

kw

73

Start Mode



Y-△

condenser

type



Shell and tube condenser

cooling water

m3/h

65

Water Resistance

Kpa

48

Diameter

inch

4"

evaporator

type



shell and tube Type Evaporator

Chilled water (m3/h)

-10℃

32

-20℃

21.5

-30℃

15.5

Water Resistance

Kpa

                     40

inlet and outlet connection(BSP)

inch

                    4’’

safety devices

Compressor overheating protection,over-current protection,high and low pressure protection,over-temperature protection,traffic protection,phase sequence/phase loss protection,low level protection,frost protection

dimension

mm

2900*950*1950

weight

kg

2100



Features And Advantages of 100 HP Water Cooled Glycol Screw Chiller

 ▪ Siemens PLC temperature controller for overall monitoring of chiller running status;  .

  ▪ water temperature range from -30℃ to 5 ℃

  ▪ High quality shell and tube condenser and heat exchanger

  ▪ Screw compressor with environmental friendly R404a refrigerant and four grade capacity control 25%-50%-75%-100%;

  ▪ It no need connect with water cooling tower and water cooling pump

 ▪Chiller equipped with the following safety protections:Overload Protection,Inverse Phase Alarm,High/Low Pressure Alarm,Water Flow,Water Level Indicator,Anti-Freeze Protection


What Are The Main Components Of Water-Cooled Glycol Screw Chiller?

3.1 Compressor

The compressor is the key mover in Water Cooled Screw Glycol Chiller because it produces pressure variations to stir the refrigerant around.


For 50hHP chiller , which is with 1 units Hanbell Screw brand or Bizter Screw compressor for optional depends on the required refrigeration capacity, using R404A refrigerant,this brand compress is with high refrigeration efficiency,low noise ,energy saving,environmental protection and durability,safety and stability.


Each screw compressor with 4 steps of energy control 25%-50%-75%-100% to make sure the whole screw chiller is stable and guarantee high refrigeration performance.

Hanbell Screw Compressor


Bizter Screw Compressor


3.2 Evaporator

The evaporator is a crucial component of  water cooled screw chiller, as it is responsible for extracting heat from the liquid being cooled,it is located between the compressor and the expansion valve. Water Cooled Screw Chiller Uses highly efficient closed loop shell and tube type heat exchanger as the evaporator.

Shell and Tube Evaporator


3.3 Condenser

The condenser for water cooled screw chiller is water-cooed type shell and tube for high heat exchange efficiency and good stability.Its function is to cool down the refrigerant steam released from the compressor into a liquid or gas-liquid mixture.



Water-cooled type Shell and Tube Condenser


3.4 Controller Panel

Tongwei chillers use Integrated PLC control system with human-computer interface and big LED touch screen panel.


4.Spare Part for Water-cooled Glycol Screw Chiller


5.What is the Difference Between Water Cooled Glycol Scroll Chiller and Water Cooled Glycol Screw Chiller?

Water Cooled Glycol Scroll Chiller                             Water Cooled Glycol Screw Chiller

▪ 3HP-60HP                                                           Above 60HP

▪ Danfoss/Panasonic Scroll Compressor                      Hanbell/Bitzer Screw compressor

▪Built with water tank and water pump                       Without water tank and water pump

Water Cooled Glycol Scroll Chiller


Water Cooled Glycol Screw Chiller


Why Glycol Is Used for Cooling?

The most commonly used coolant in a chiller is water or a mixture of water-glycol. Glycol-based coolants consist of either ethylene glycol or propylene glycol. The main advantage of glycol coolants is their anti-freeze properties. Pure water freezes at 0 degrees C, while 30% ethylene glycol freezes at -14 degrees C. The low freezing point of glycol mixtures makes them ideal for cooling items that are below the freezing point of water. Although glycol has a lower heat capacity than water (each kilogram of glycol is easier to heat than one kilogram of water), the high temperature difference allows the glycol mixture to dissipate heat more quickly than pure water. The glycol mixtures are more suitable for applications where the chiller must quickly dissipate a large number of heat. In addition to providing excellent heat transfer parameters, glycol tends to discourage algae growth in heat transfer equipment.


Comparison of Ethylene Glycol and Propylene GlycolProperty

     Property

 Ethylene Glycol

 Propylene Glycol

 Freeze point depression

 More effective

  Less effective

 Heat transfer efficiency/capacity

  Better

 Less

 Viscosity

 Lower

  Higher

 Flammability

 Low

 Low

 Chemical Oxygen Demand

 Low

 Higher

 Biodegrading

 Degradesin 10-30 days

  Needs more than 20-30 days to degrade

 Carcinogenic

  No

  No

 Toxic

 High level of acute when taken orally,targets the kidneys

  Lower level of acute

 Skin Irritant

  Low

   Low

Ethylene Gycol And Propylene Glycol


How Does A 100 HP Water Cooled Glycol Screw Chiller Work?

A glycol chiller is composed of a refrigeration component and tubing containing a water-glycol mixture as coolant. Chilled fluid from the refrigeration unit is channeled through the piping associated with a thermal exchanger surrounding a heated process. After absorbing heat from the associated process, the hot coolant is returned to the refrigeration unit for cooling after which the process is repeated.


A glycol chiller consists of a compressor, an evaporator, a condenser, a throttling element, and an electric control system. Let’s see what’s the working principle of a glycol chiller:


The Ratio of Water to Glycol to Use


It is important to use the proper ratio of glycol to water mixture in the cooling system depends on the coldest temperature you need during operation, as insufficient glycol can cause the system to freeze, possibly bursting pipes and even destroying the chiller evaporator even may damage the glycol chiller, while too much glycol to a chiller system will result in an inefficient system.


But what’s the best ratio for glycol and water mixtures? Please see below glycol ratio of glycol and water mixtures for the glycol chiller in your cooling process:

Glycol

Water

Water

16%

84%

0℃

24%

76%

-5℃

32%

68%

-10℃

40%

60%

-15℃

45%

55%

-20℃

50%

50%

-25℃

55%

45%

-30℃


9.What Applications Can A Low Temperature Glycol Chiller Be Used For?

Glycol chiller is a specific kind of cooling system,which is  used to cool a variety of liquids and other industrial applications.

By using a glycol chiller can achieve the low temperature for your industrial usage you need .

Glycol chillers are most used for below these Industries:


9.1 Breweries

In breweries, the glycol chiller is used for cooling the wort,Controlling Fermentation,Crash Cooling Vessels,Prepackaging and Product Storage.

Glycol Chiller for Breweries


9.2 Wineries

Glycol chillers are widely used in the fermentation process, cold stabilization and room cooling purposes.

Glycol Chiller for Wineries


9.3 Cider Mills

Fermentation control needs critical water temperature control. Glycol chiller can provide cold chilling of the juice and milk, also the cold storage of the final product.

 Glycol Chiller for Cider Mills


9.4 Distilleries

During the fermentation process, the glycol chiller will provide a steady coolant for circulation between distillation tanks & stills for heat removal purposes.



Glycol Chiller for Distilleries


9.5 Food Industry.

Glycol chillers can provide low-temperature coolant to guarantee the safety and consistent quality of frozen foods, food processing companies need a low-temperature cooling day in and day out.

Glycol Chiller for Food Industry


9.6 Dairy Product

A properly designed dairy glycol chiller can cool the milk very rapidly to help keep milk temperatures (and bacteria growth) under control as it is transferred from the milking parlor to its insulated tank.

Glycol Chiller for Dairy Product


Do you need a glycol chiller for an application not mentioned here? Contact us and we’ll customize an affordable solution for your exact demands.


How I Can Choose The Right 100 HP Water Cooled Glycol Screw Chiller For Your Application?

There are four important chiller specifications you need consider when you choose a chiller for your application :the cooling capacity for chiller ,the voltage required for operation, the associated pump horsepower and flow rate (contact us for custom selection), refrigerant, and the evaporator type.


10.1Calculate Right Cooling Capacity For Chiller

One of the most frequently ask about how we can know the cooling capacity for chillers.  We use KW ,Ton, But/h,Kcal/h to choose chiller cooling capacity :1 KW=860 kcal/h ;  1 TON=3.517 KW;  1 KW=3412 Btu/h;


There is also a formula to calculate the cooling capacity for chiller:.

Cooling Capacity(kw)= Flow Rate(m3/h)*Temp Change(T1-T2)/0.86

Heat Load= C(specific heat)* M(quality output per hour )*Temp Change(T1-T2)

Oversize the chiller by 20% Ideal Size in KW = KW x 1.2

Noted : T1:Incoming Water Temperature (℃)      T2:Required Chilled Water Temperature(℃)



For example, what size of chiller is required to cool 10m³ water from 35°c to 15 °c in 1 hour?

Temperature Differential = 35℃-15℃=20℃

Water Flow Rate = 10 m³/hour

Cooling Capacity in KW = 10 x 20 ÷ 0.86 = 232 KW

Oversize the chiller = 232 x 1.2 = 278.4KW

278.4 kw cooling capacity for chiller is required.


10.2 Power

Different countries and regions have different standards for industrial electricity, the common power supplies are 208-230V, 380-420V,440-480V,50Hz or 60Hz, 3phase.

Such in Philippines ,the power supply is 220V 60HZ 3PH , 380V 60HZ 3PH ,460V 60HZ 3PH;

in Singapore and Malaysia ,the power supply is 415V 50HZ 3PH;

in Mexico ,the power supply is 220V 60HZ 3PH;

In USA ,the power supply is 208V 60HZ 3PH;575V 60HZ 3PH;480V 60HZ 3PH and so on


10.3 Water Pump

When you decide the capacity/tonnage of the chiller, we will recommend you the suitable pump in KW,which standard water pump is about 2 bar .If you need more high water pressure , please us when you inquiry.


10.4 Refrigerant

R22, R410A, R407C, R404A, R134A are optional choices.

R22: good cooling effect, but R22 is considered a powerful greenhouse gas, so it’s forbidden in most countries.

R410A: eco-friendly, R-410A has replaced R-22 as the preferred refrigerant for use in residential and commercial air conditioners in Japan, Europe, and the United States. R-410A operates at higher pressures than other refrigerants.

R407C: a good replacement for R22, good cooling effect.

R404A: suitable for application that requires low temperature(below -10°c).

R134A: a non-flammable gas used primarily as a “high-temperature” refrigerant, suitable for air-cooled chiller working at a high ambient temperature above 50℃.


Shipping Way of Water-cooled Glycol Screw Chiller

As a professional low temperature glycol chiller supplier &exporter,we have our own shipment forwarder to arrange the shipment .Our chiller machine is with plywood packing,which prevent damage during transportation and meet export standards.There are three ways can delivery your chiller unit :


1. Ship by Air: As the chiller is with compressor ,water pump and fans ,the compressed refrigerant and oil inside the compressor is a dangerous item with the possibility of explosion , so it needs to release the compressed refrigerant before transportation. (It means that water chiller without refrigerant when choosing this shipping way. After the machine arrives at your destination, you need to add refrigerant by local professionals. The airline company also request us to provide many documents to prove that the chiller not a dangerous product. The freight cost by air is very high may be higher than the cost of chiller , So By air for delivery is not the mode of transport recommended to our customer.


2. Ship by Sea: The transportation time is longer than by air , but the freight cost is cheap ,and there is no need to add refrigerant after the equipment arrives at the destination.This shipping way is the most suitable mode of transportation for you to delivery your local port.


3.If you have your own shipment container in your other supplier in China, we can help you delivery the chiller machine to your supplier in any city of China .


Why should you choose Tongwei for your 100 HP Water Cooled Glycol Screw Chiller supplier?

▪ Experience you can trust

We have been designing and building water chiller for over 15 years. From air cooled chiller to water cooled chillers and everything in between, we have built chillers for nearly every industry and every application.


▪ Fast Quote

Get a quote for your project today! We typically provide a custom quote within 2 hours.


▪ 24/7 customer service

Believe that we will always be by your side. Whether you have a question or need a quote, there‘s always someone answering the phone 24 hours a day.


▪ Durable and reliable machine

Our products are manufactured from high quality materials and we offer a competitive warranty on all  industrial chillers.
